Datasheet LND150, LND250 (Microchip) - 8
| 制造商 | Microchip |
| 描述 | N-Channel Depletion-Mode DMOS FETs |
| 页数 / 页 | 16 / 8 — LND150/LND250. 5.0. PACKAGING INFORMATION. 5.1. Package Marking … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
LND150/LND250. 5.0. PACKAGING INFORMATION. 5.1. Package Marking Information. Legend:. Note
该数据表的模型线
文件文字版本

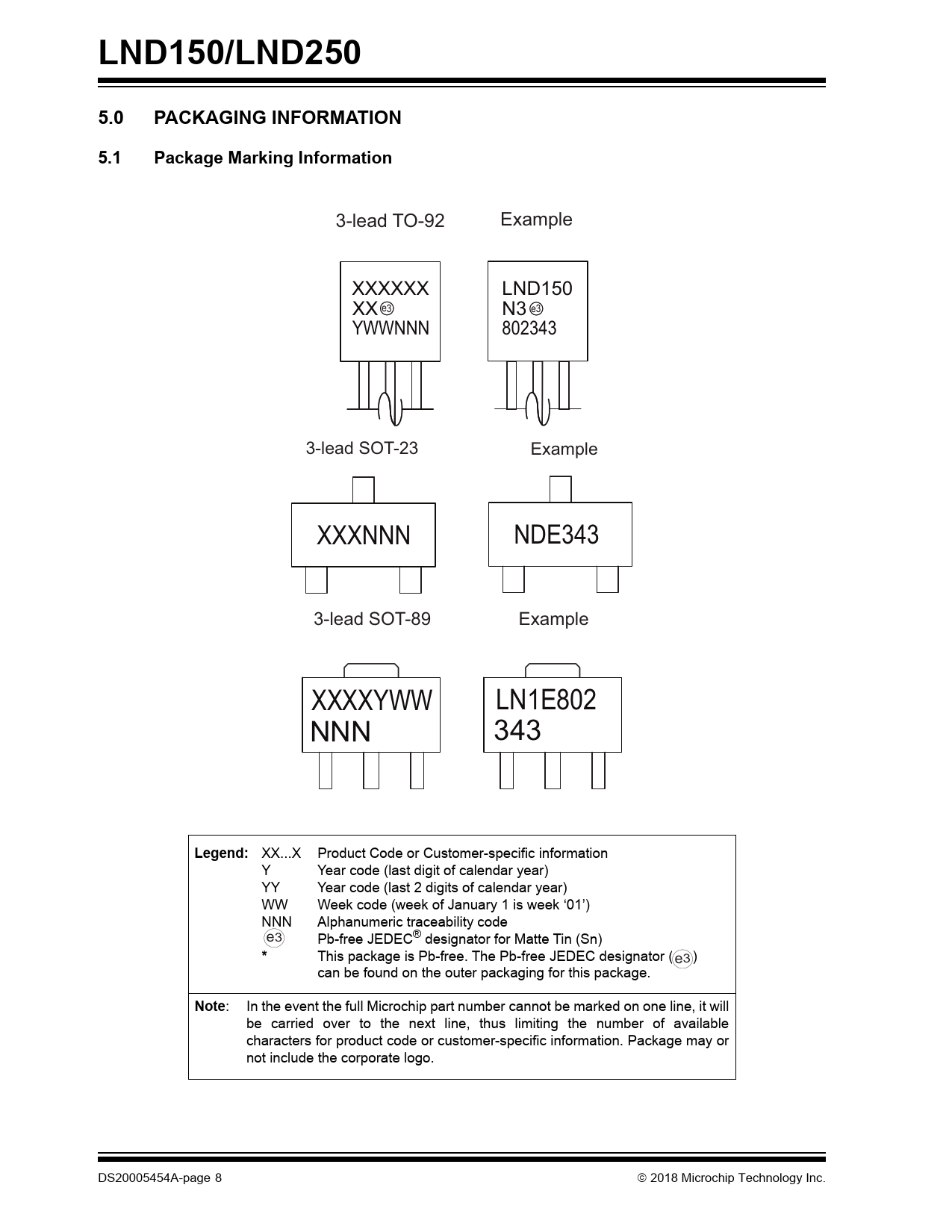

LND150/LND250 5.0 PACKAGING INFORMATION 5.1 Package Marking Information
3-lead TO-92 Example XXXXXX LND150 XX e3 N3 e3 YWWNNN 802343 3-lead SOT-23 Example XXXNNN NDE343 3-lead SOT-89 Example XXXXYWW LN1E802 NNN 343
Legend:
XX...X Product Code or Customer-specific information Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week ‘01’) NNN Alphanumeric traceability code e3 Pb-free JEDEC® designator for Matte Tin (Sn)
*
This package is Pb-free. The Pb-free JEDEC designator ( ) e3 can be found on the outer packaging for this package.
Note
: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for product code or customer-specific information. Package may or not include the corporate logo. DS20005454A-page 8 2018 Microchip Technology Inc. Document Outline N-Channel Depletion-Mode DMOS FETs Features Applications General Description Package Types 1.0 Electrical Characteristics Absolute Maximum Ratings† DC Electrical Characteristics AC Electrical Characteristics Temperature Specifications Thermal Characteristics 2.0 Typical Performance Curves FIGURE 2-1: Output Characteristics. FIGURE 2-2: Transconductance vs. Drain Current. FIGURE 2-3: Maximum Rated Safe Operating Area. FIGURE 2-4: Saturation Characteristics. FIGURE 2-5: Power Dissipation vs. Ambient Temperature. FIGURE 2-6: Thermal Response Characteristics. FIGURE 2-7: BVDSS Variation with Temperature. FIGURE 2-8: Transfer Characteristics. FIGURE 2-9: Capacitance vs. Drain-to- Source Voltage. FIGURE 2-10: Drain Current vs. RSOURCE. FIGURE 2-11: VGS(OFF) and RDS Variation with Temperature. FIGURE 2-12: Gate Drive Dynamic Characteristics. 3.0 Pin Description TABLE 3-1: TO-92 Pin Function Table TABLE 3-2: SOT-23 Pin Function Table TABLE 3-3: SOT-89 Pin Function Table 4.0 Functional Description FIGURE 4-1: Switching Waveforms and Test Circuit. TABLE 4-1: Product Summary 5.0 Packaging Information 5.1 Package Marking Information Appendix A: Revision History Revision A (August 2018) Product Identification System Worldwide Sales and Service
