Datasheet CSD06060 (Cree) - 2
| 制造商 | Cree |
| 描述 | Zero Recoverytm Rectifier. 600 Volt Schottky Rectifier |
| 页数 / 页 | 5 / 2 — CSD06060. Parameter. Symbol. Min. Typ. Max. Units. Characteristic. Figure … |
| 文件格式/大小 | PDF / 217 Kb |
| 文件语言 | 英语 |
CSD06060. Parameter. Symbol. Min. Typ. Max. Units. Characteristic. Figure 1. Forward Characteristics. Figure 2. Reverse Characteristics
该数据表的模型线
文件文字版本
CSD06060
ELECTRICAL CHARACTERISTICS
Parameter Symbol Min Typ Max Units
Forward Voltage 1.6 1.8 IF = 6A TJ=25°C VF V IF = 6A TJ=175°C 2.0 2.4 Reverse Current 50 200 VR = 600V TJ=25°C IR µA V 1000 R = 600V TJ=175°C 100 Total Capacitive Charge VR = 600V,IF = 6A, di/dt = 500 A/µs, TJ = 25°C QC 17 nC Total Capacitance VR = 0V, TJ = 25°C, f =1MHz 340 V C 40 pF R = 200V, TJ = 25°C, f =1MHz V 30 R = 400V, TJ = 25°C, f =1MHz NOTE: 1. This is a majority carrier diode, so there is no reverse recovery charge. THERMAL CHARACTERISTICS
Characteristic Symbol Min Typ Max Units
Thermal Resistance from Junction to Case RθJC 1.8 °C/W Typical Performance

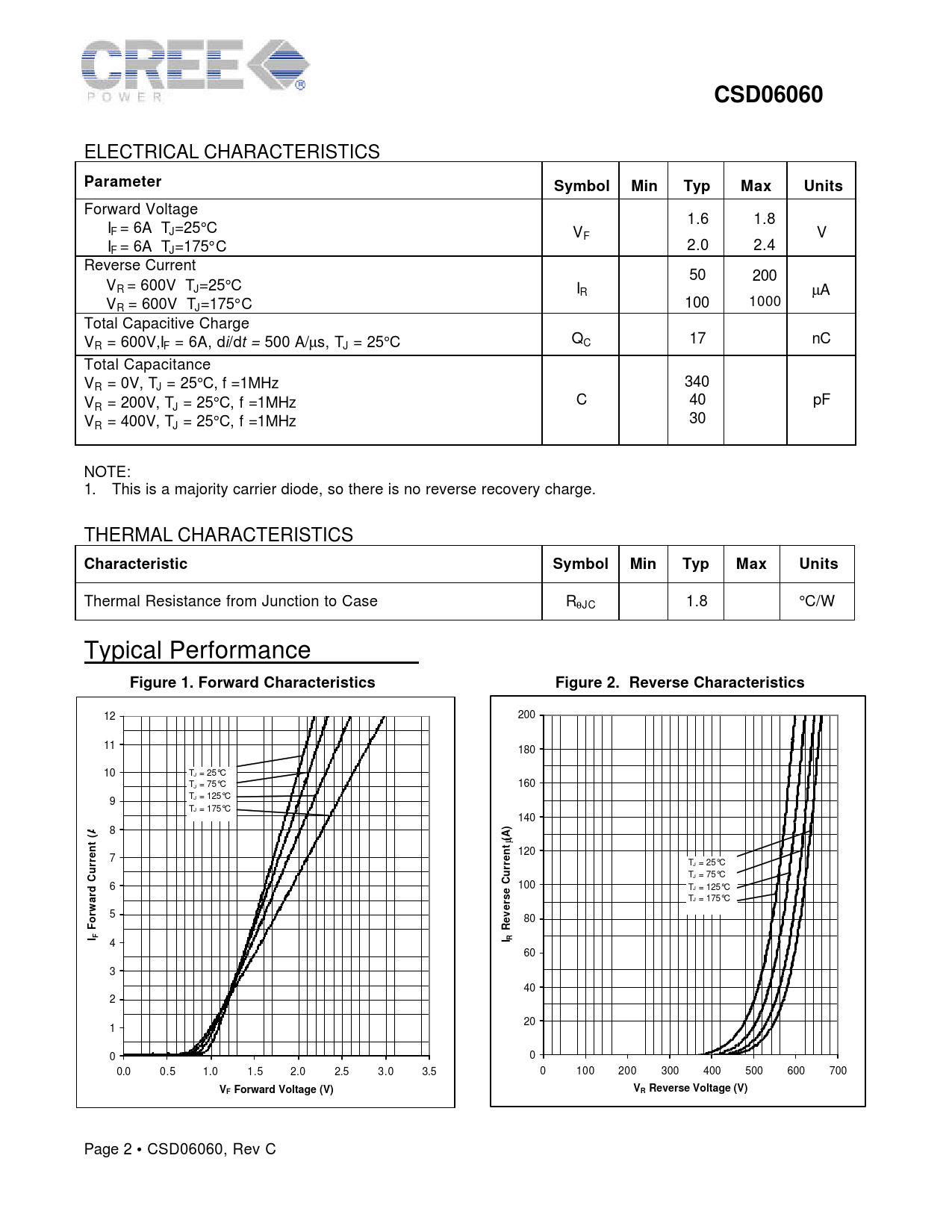

Figure 1. Forward Characteristics Figure 2. Reverse Characteristics
12 200 11 180 10 TJ = 25°C TJ = 75°C 160 T 9 J = 125°C TJ = 175°C 140 8
A) µ
120 7 TJ = 25°C TJ = 75°C 6 100 TJ = 125°C TJ = 175°C 5 80
Forward Current (A) Reverse Current ( I F I R
4 60 3 40 2 20 1 0 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 0 100 200 300 400 500 600 700
V V F Forward Voltage (V) R Reverse Voltage (V)
Page 2 • CSD06060, Rev C
ELECTRICAL CHARACTERISTICS
Parameter Symbol Min Typ Max Units
Forward Voltage 1.6 1.8 IF = 6A TJ=25°C VF V IF = 6A TJ=175°C 2.0 2.4 Reverse Current 50 200 VR = 600V TJ=25°C IR µA V 1000 R = 600V TJ=175°C 100 Total Capacitive Charge VR = 600V,IF = 6A, di/dt = 500 A/µs, TJ = 25°C QC 17 nC Total Capacitance VR = 0V, TJ = 25°C, f =1MHz 340 V C 40 pF R = 200V, TJ = 25°C, f =1MHz V 30 R = 400V, TJ = 25°C, f =1MHz NOTE: 1. This is a majority carrier diode, so there is no reverse recovery charge. THERMAL CHARACTERISTICS
Characteristic Symbol Min Typ Max Units
Thermal Resistance from Junction to Case RθJC 1.8 °C/W Typical Performance
Figure 1. Forward Characteristics Figure 2. Reverse Characteristics
12 200 11 180 10 TJ = 25°C TJ = 75°C 160 T 9 J = 125°C TJ = 175°C 140 8
A) µ
120 7 TJ = 25°C TJ = 75°C 6 100 TJ = 125°C TJ = 175°C 5 80
Forward Current (A) Reverse Current ( I F I R
4 60 3 40 2 20 1 0 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 0 100 200 300 400 500 600 700
V V F Forward Voltage (V) R Reverse Voltage (V)
Page 2 • CSD06060, Rev C
