Datasheet PI3WVR626 (Diodes)
| 制造商 | Diodes |
| 描述 | 2:1 MIPI 2-Data Lane |
| 页数 / 页 | 12 / 1 — Lead-free Green. PI3WVR626. 2:1 MIPI 2-Data Lane Switch. Features. … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |
Lead-free Green. PI3WVR626. 2:1 MIPI 2-Data Lane Switch. Features. Description. Applications. Notes:
该数据表的模型线
文件文字版本
A product Line of
b P
Diodes Incorporated

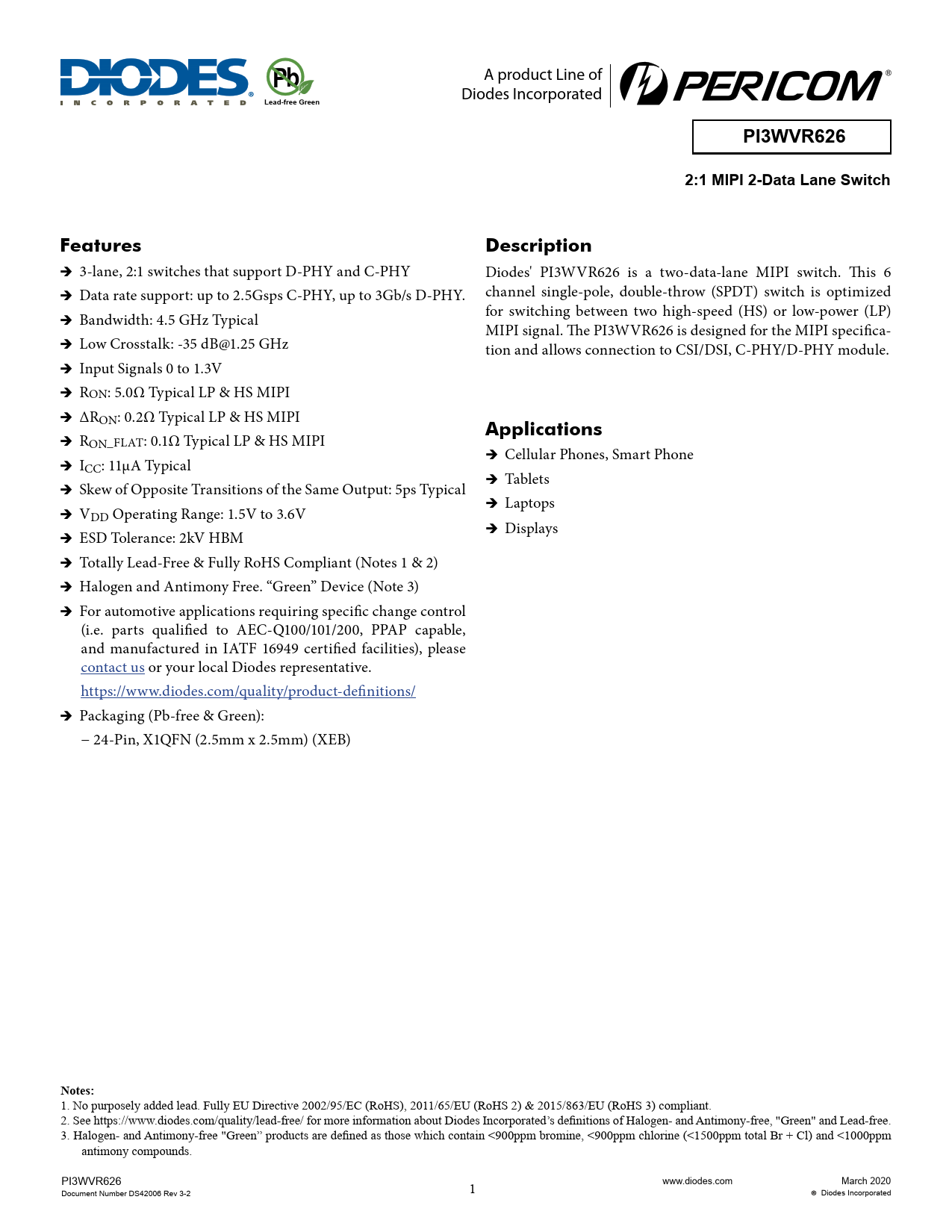

Lead-free Green PI3WVR626 2:1 MIPI 2-Data Lane Switch Features Description
Î Î 3-lane, 2:1 switches that support D-PHY and C-PHY Diodes' PI3WVR626 is a two-data-lane MIPI switch. This 6 Î Î Data rate support: up to 2.5Gsps C-PHY, up to 3Gb/s D-PHY. channel single-pole, double-throw (SPDT) switch is optimized for switching between two high-speed (HS) or low-power (LP) Î Î Bandwidth: 4.5 GHz Typical MIPI signal. The PI3WVR626 is designed for the MIPI specifica- Î Î Low Crosstalk: -35 dB@1.25 GHz tion and allows connection to CSI/DSI, C-PHY/D-PHY module. Î Î Input Signals 0 to 1.3V Î Î RON: 5.0Ω Typical LP & HS MIPI Î Î ∆RON: 0.2Ω Typical LP & HS MIPI
Applications
Î Î RON_FLAT: 0.1Ω Typical LP & HS MIPI Î Î Cellular Phones, Smart Phone Î Î ICC: 11μA Typical Î Î Tablets Î Î Skew of Opposite Transitions of the Same Output: 5ps Typical Î Î Laptops Î Î VDD Operating Range: 1.5V to 3.6V Î Î Displays Î Î ESD Tolerance: 2kV HBM Î Î Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Î Î Halogen and Antimony Free. “Green” Device (Note 3) Î Î For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Î Î Packaging (Pb-free & Green): − 24-Pin, X1QFN (2.5mm x 2.5mm) (XEB)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. PI3WVR626 Document Number DS42006 Rev 3-2 1 www.diodes.com March 2020 Diodes Incorporated
