PI3WVR626. Test Circuit for Electrical Characteristics(1-4). Notes:. Switching Waveforms. Voltage Waveforms for Select Timing
该数据表的模型线
文件文字版本
A product Line of Diodes Incorporated

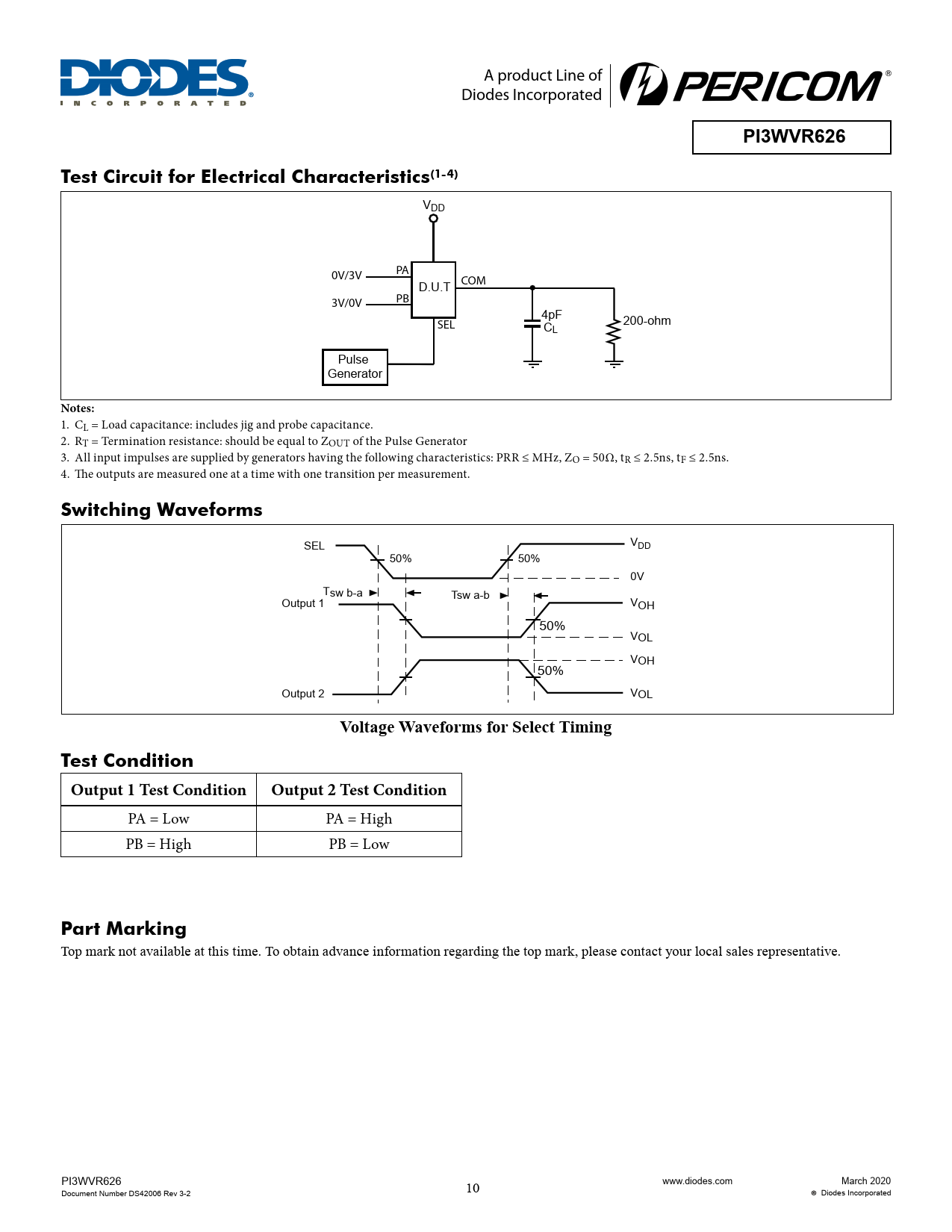

PI3WVR626 Test Circuit for Electrical Characteristics(1-4)
VDD PA 0V/3V D.U.T COM PB 3V/0V 4pF SEL C 200-ohm L Pulse Generator
Notes:
1. CL = Load capacitance: includes jig and probe capacitance. 2. RT = Termination resistance: should be equal to ZOUT of the Pulse Generator 3. All input impulses are supplied by generators having the following characteristics: PRR ≤ MHz, ZO = 50Ω, tR ≤ 2.5ns, tF ≤ 2.5ns. 4. The outputs are measured one at a time with one transition per measurement.
Switching Waveforms
V SEL DD 50% 50% 0V Tsw b-a Tsw a-b Output 1 VOH 50% VOL VOH 50% Output 2 VOL
Voltage Waveforms for Select Timing Test Condition Output 1 Test Condition Output 2 Test Condition
PA = Low PA = High PB = High PB = Low
Part Marking
Top mark not available at this time. To obtain advance information regarding the top mark, please contact your local sales representative. PI3WVR626 Document Number DS42006 Rev 3-2 10 www.diodes.com March 2020 Diodes Incorporated
