Datasheet T3902 (TDK) - 10
| 制造商 | TDK |
| 描述 | Bottom Port PDM Low‐Power Multi‐Mode Microphone With High AOP Mode |
| 页数 / 页 | 22 / 10 — T3902. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS . GND. SELECT. CLK. … |
| 文件格式/大小 | PDF / 446 Kb |
| 文件语言 | 英语 |
T3902. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS . GND. SELECT. CLK. DATA. VDD
该数据表的模型线
文件文字版本

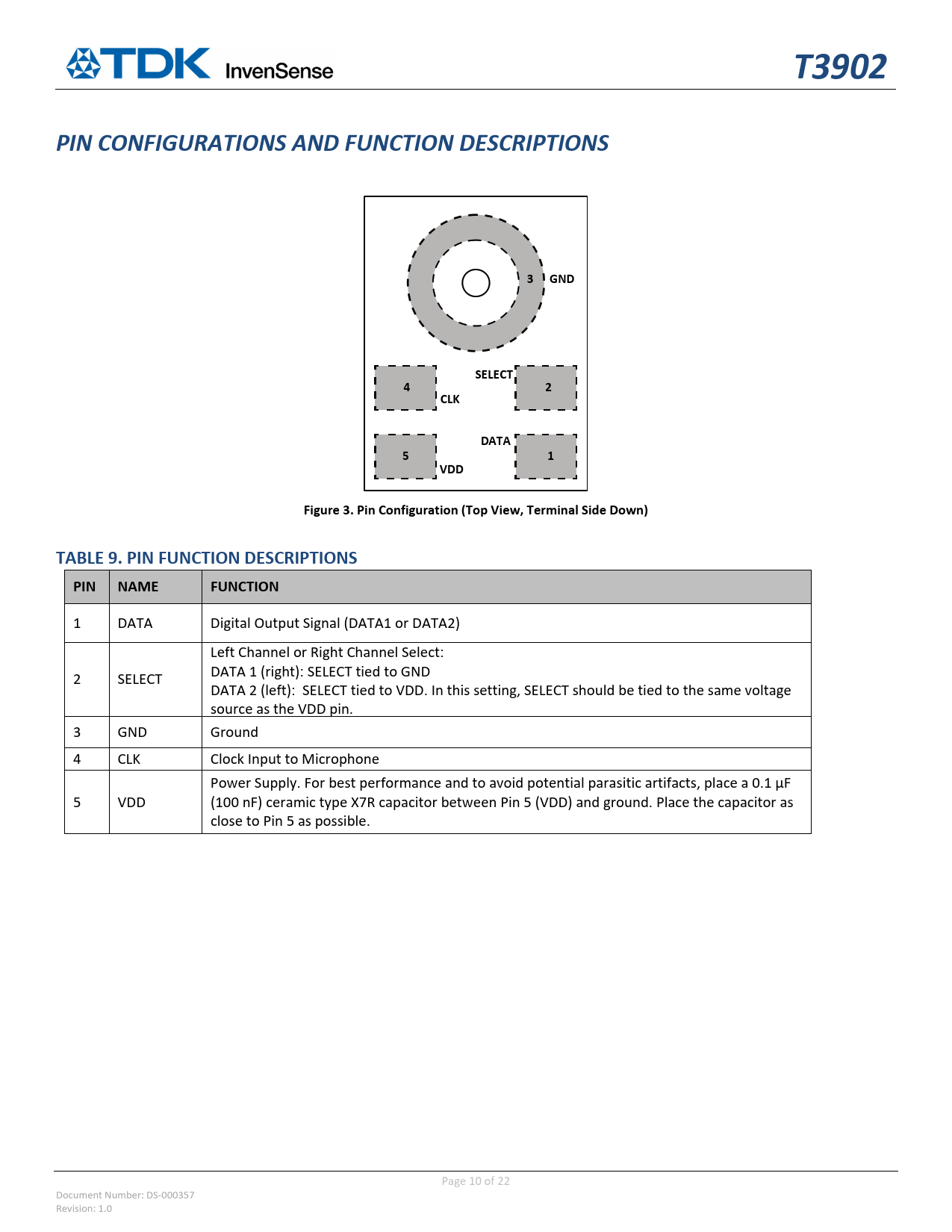

T3902
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
3 GND SELECT 4 2 CLK DATA 5 1 VDD
Figure 3. Pin Configuration (Top View, Terminal Side Down)
TABLE 9. PIN FUNCTION DESCRIPTIONS PIN NAME FUNCTION
1 DATA Digital Output Signal (DATA1 or DATA2) Left Channel or Right Channel Select: DATA 1 (right): SELECT tied to GND 2 SELECT DATA 2 (left): SELECT tied to VDD. In this setting, SELECT should be tied to the same voltage source as the VDD pin. 3 GND Ground 4 CLK Clock Input to Microphone Power Supply. For best performance and to avoid potential parasitic artifacts, place a 0.1 µF 5 VDD (100 nF) ceramic type X7R capacitor between Pin 5 (VDD) and ground. Place the capacitor as close to Pin 5 as possible. Page 10 of 22 Document Number: DS‐000357 Revision: 1.0
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
3 GND SELECT 4 2 CLK DATA 5 1 VDD
Figure 3. Pin Configuration (Top View, Terminal Side Down)
TABLE 9. PIN FUNCTION DESCRIPTIONS PIN NAME FUNCTION
1 DATA Digital Output Signal (DATA1 or DATA2) Left Channel or Right Channel Select: DATA 1 (right): SELECT tied to GND 2 SELECT DATA 2 (left): SELECT tied to VDD. In this setting, SELECT should be tied to the same voltage source as the VDD pin. 3 GND Ground 4 CLK Clock Input to Microphone Power Supply. For best performance and to avoid potential parasitic artifacts, place a 0.1 µF 5 VDD (100 nF) ceramic type X7R capacitor between Pin 5 (VDD) and ground. Place the capacitor as close to Pin 5 as possible. Page 10 of 22 Document Number: DS‐000357 Revision: 1.0
