Datasheet NV6125 (Navitas Semiconductor) - 7
| 制造商 | Navitas Semiconductor |
| 描述 | 650 V GaNFast Power IC |
| 页数 / 页 | 23 / 7 — NV6125. Characteristic Graphs. Final Datasheet. Rev Nov 21, 2019 |
| 文件格式/大小 | PDF / 2.3 Mb |
| 文件语言 | 英语 |
NV6125. Characteristic Graphs. Final Datasheet. Rev Nov 21, 2019
该数据表的模型线
文件文字版本
NV6125 NV6125 Characteristic Graphs

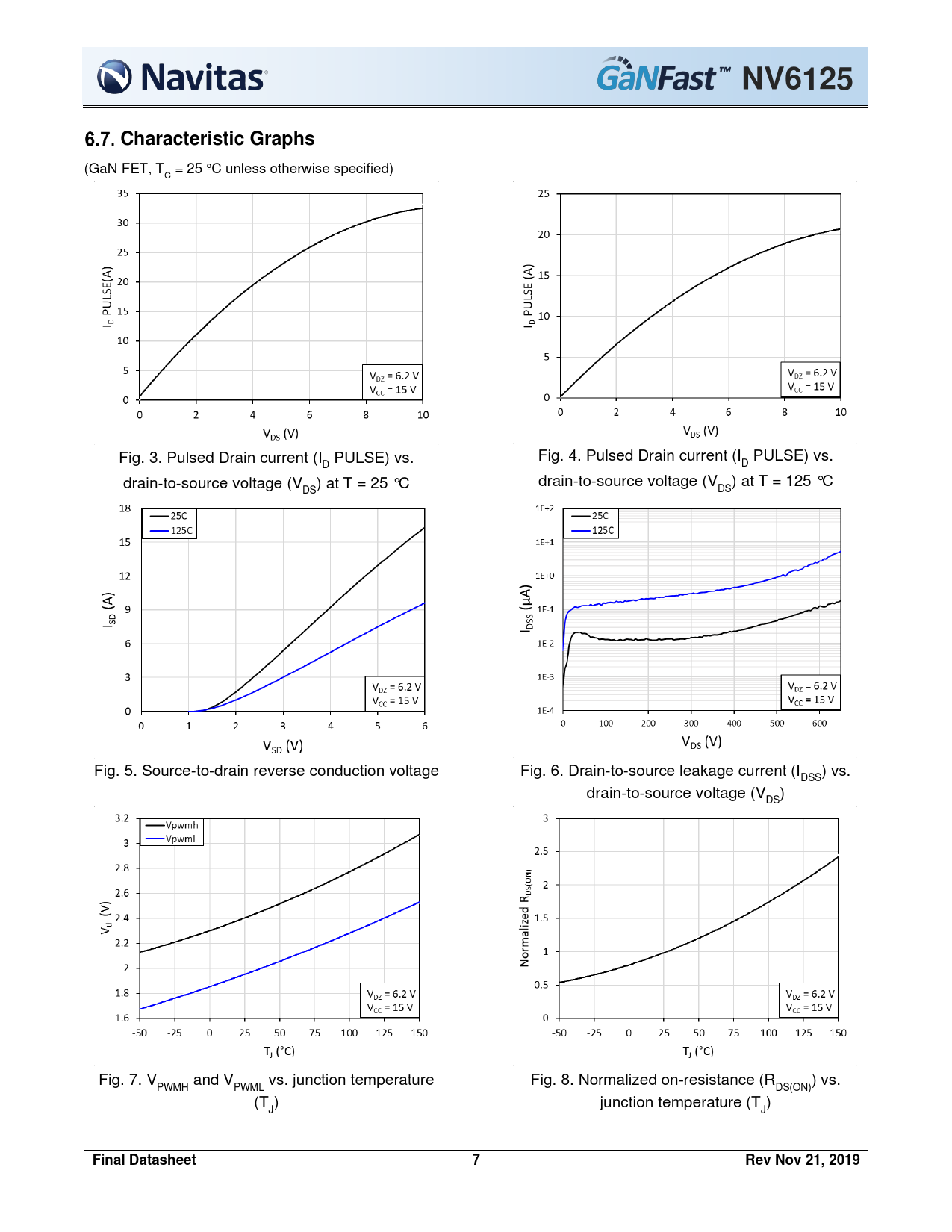

(GaN FET, T = 25 ºC unless otherwise specified) C Fig. 3. Pulsed Drain current (I PULSE) vs. Fig. 4. Pulsed Drain current (I PULSE) vs. D D drain-to-source voltage (V ) at T = 25 °C drain-to-source voltage (V ) at T = 125 °C DS DS Fig. 5. Source-to-drain reverse conduction voltage Fig. 6. Drain-to-source leakage current (I ) vs. DSS drain-to-source voltage (V ) DS Fig. 7. V and V vs. junction temperature Fig. 8. Normalized on-resistance (R ) vs. PWMH PWML DS(ON) (T ) junction temperature (T ) J J
