NV6117. Characteristic Graphs (Cont.). Final Datasheet. Rev Nov 22, 2019
该数据表的模型线
文件文字版本
NV6117 Characteristic Graphs (Cont.)

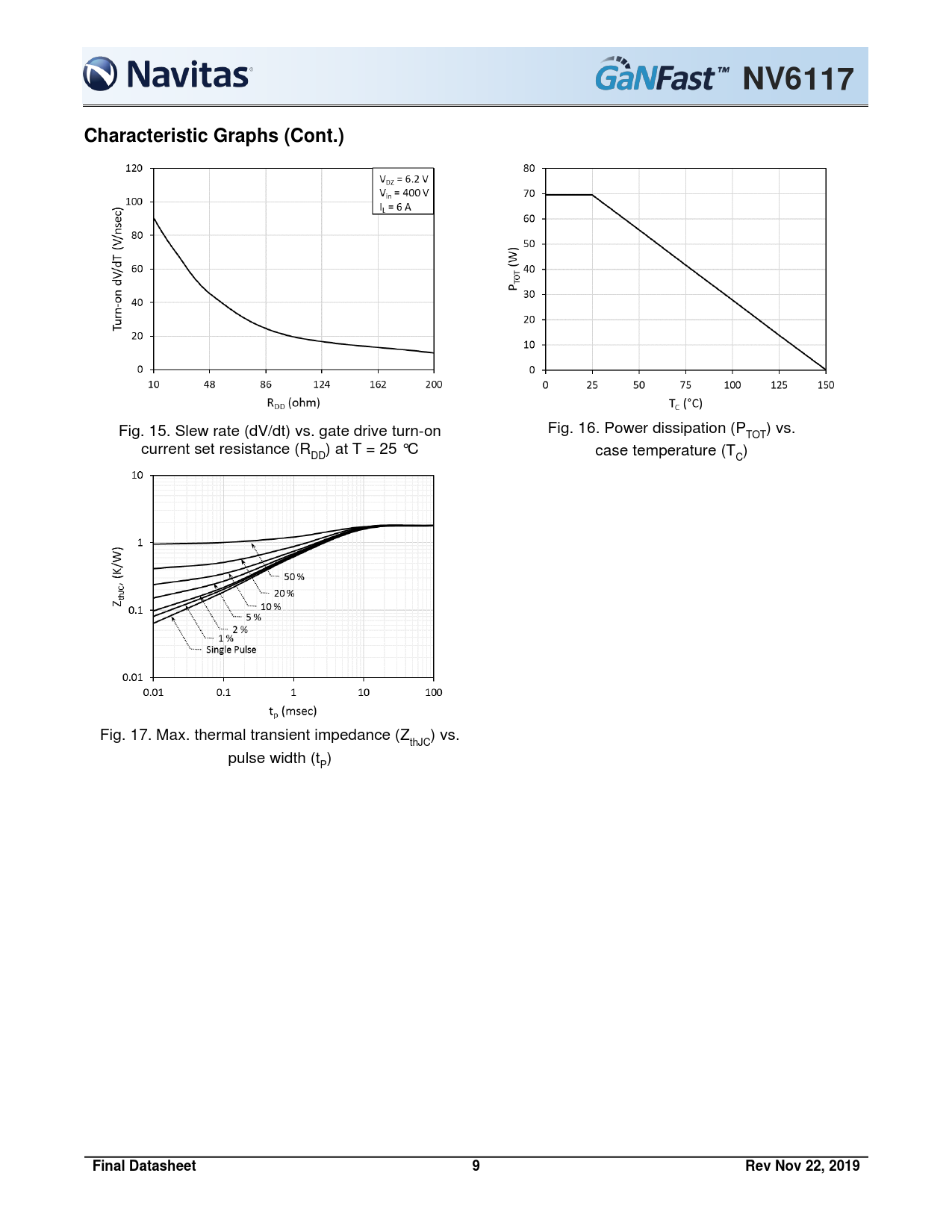

Fig. 15. Slew rate (dV/dt) vs. gate drive turn-on Fig. 16. Power dissipation (P ) vs. TOT current set resistance (R ) at T = 25 °C case temperature (T ) DD C Fig. 17. Max. thermal transient impedance (Z ) vs. thJC pulse width (t ) P
Final Datasheet 9 Rev Nov 22, 2019
Fig. 15. Slew rate (dV/dt) vs. gate drive turn-on Fig. 16. Power dissipation (P ) vs. TOT current set resistance (R ) at T = 25 °C case temperature (T ) DD C Fig. 17. Max. thermal transient impedance (Z ) vs. thJC pulse width (t ) P
Final Datasheet 9 Rev Nov 22, 2019
