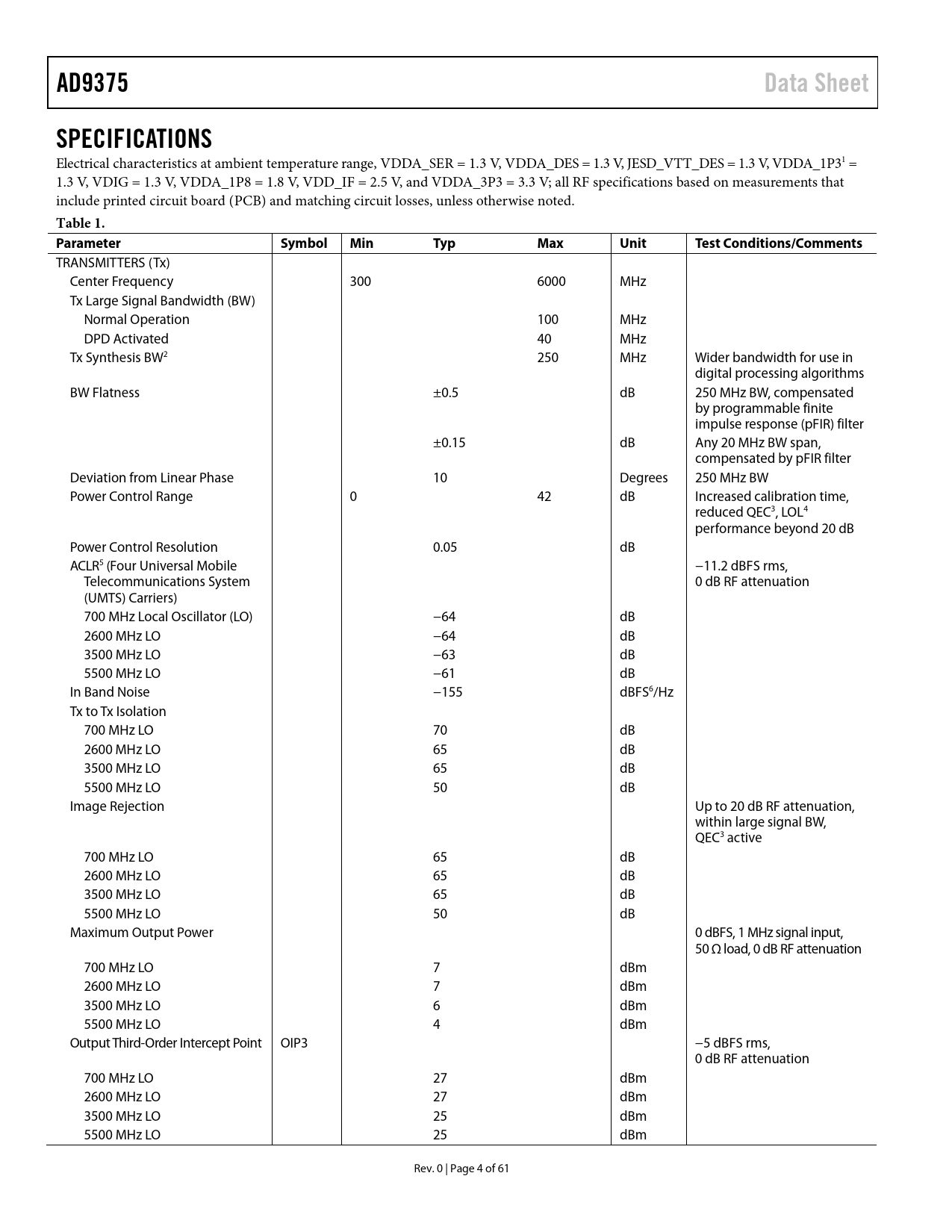

AD9375 Data Sheet SPECIFICATIONS
Electrical characteristics at ambient temperature range, VDDA_SER = 1.3 V, VDDA_DES = 1.3 V, JESD_VTT_DES = 1.3 V, VDDA_1P31 = 1.3 V, VDIG = 1.3 V, VDDA_1P8 = 1.8 V, VDD_IF = 2.5 V, and VDDA_3P3 = 3.3 V; all RF specifications based on measurements that include printed circuit board (PCB) and matching circuit losses, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
TRANSMITTERS (Tx) Center Frequency 300 6000 MHz Tx Large Signal Bandwidth (BW) Normal Operation 100 MHz DPD Activated 40 MHz Tx Synthesis BW2 250 MHz Wider bandwidth for use in digital processing algorithms BW Flatness ±0.5 dB 250 MHz BW, compensated by programmable finite impulse response (pFIR) filter ±0.15 dB Any 20 MHz BW span, compensated by pFIR filter Deviation from Linear Phase 10 Degrees 250 MHz BW Power Control Range 0 42 dB Increased calibration time, reduced QEC3, LOL4 performance beyond 20 dB Power Control Resolution 0.05 dB ACLR5 (Four Universal Mobile −11.2 dBFS rms, Telecommunications System 0 dB RF attenuation (UMTS) Carriers) 700 MHz Local Oscillator (LO) −64 dB 2600 MHz LO −64 dB 3500 MHz LO −63 dB 5500 MHz LO −61 dB In Band Noise −155 dBFS6/Hz Tx to Tx Isolation 700 MHz LO 70 dB 2600 MHz LO 65 dB 3500 MHz LO 65 dB 5500 MHz LO 50 dB Image Rejection Up to 20 dB RF attenuation, within large signal BW, QEC3 active 700 MHz LO 65 dB 2600 MHz LO 65 dB 3500 MHz LO 65 dB 5500 MHz LO 50 dB Maximum Output Power 0 dBFS, 1 MHz signal input, 50 Ω load, 0 dB RF attenuation 700 MHz LO 7 dBm 2600 MHz LO 7 dBm 3500 MHz LO 6 dBm 5500 MHz LO 4 dBm Output Third-Order Intercept Point OIP3 −5 dBFS rms, 0 dB RF attenuation 700 MHz LO 27 dBm 2600 MHz LO 27 dBm 3500 MHz LO 25 dBm 5500 MHz LO 25 dBm Rev. 0 | Page 4 of 61 Document Outline Features Applications General Description Revision History Functional Block Diagram Specifications Current and Power Consumption Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings Reflow Profile Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics 700 MHz Band 2.6 GHz Band 3.5 GHz Band 5.5 GHz Band Theory of Operation Transmitter (Tx) Receiver (Rx) Observation Receiver (ORx) Sniffer Receiver (SnRx) Clock Input Synthesizers RF PLL Clock PLL Serial Peripheral Interface (SPI) GPIO_x AND GPIO_3P3_x Pins Auxiliary Converters Auxiliary ADC Inputs (AUXADC_x) Auxiliary DACs (AUXDAC_x) JESD204B Data Interface Power Supply Sequence Digital Predistortion (DPD) JTAG Boundary Scan Outline Dimensions Ordering Guide
