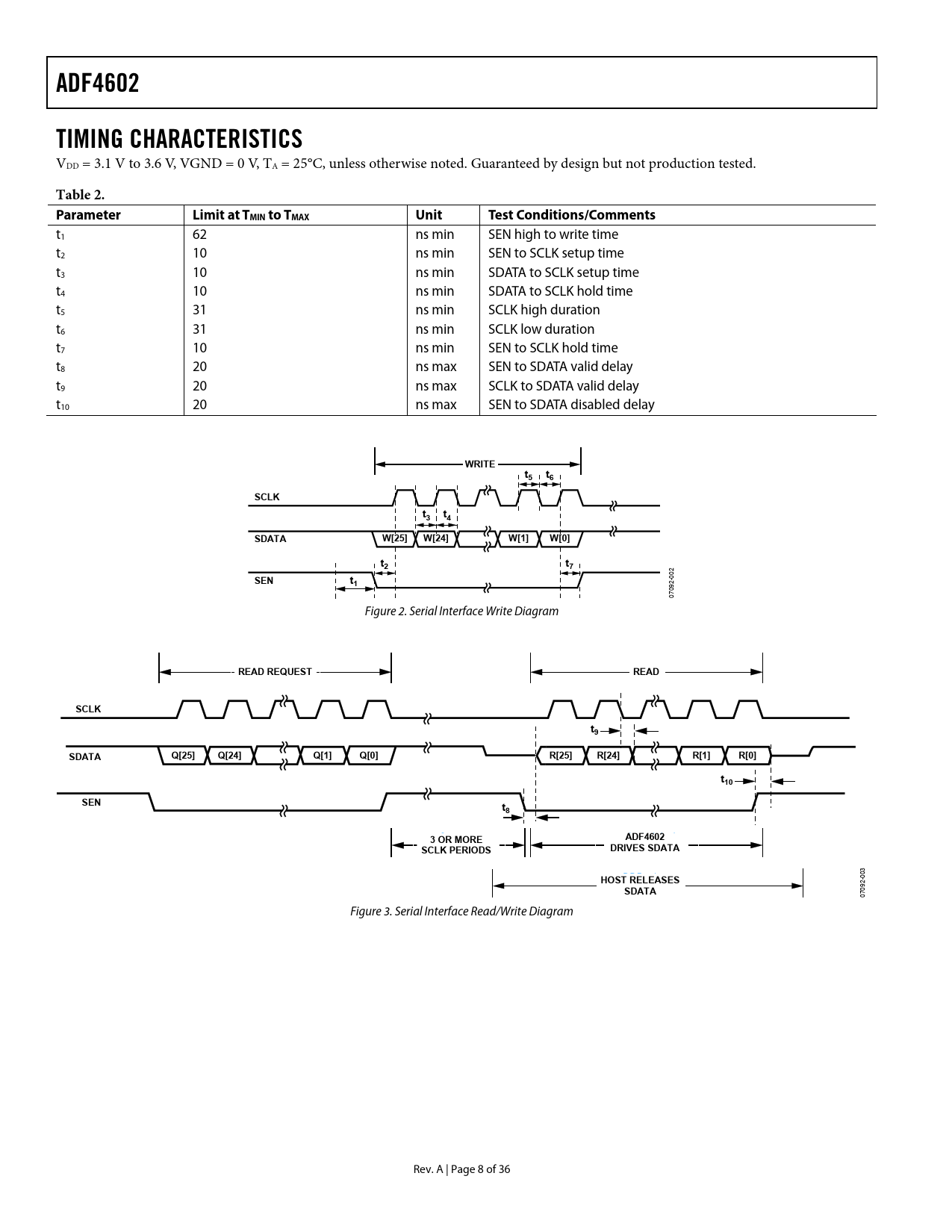

ADF4602. TIMING CHARACTERISTICS. Table 2. Parameter Limit. TMIN to TMAX Unit. Test. Conditions/Comments. WRITE. t5 t6. SCLK. t3 t4. SDATA
该数据表的模型线
文件文字版本
ADF4602 TIMING CHARACTERISTICS
VDD = 3.1 V to 3.6 V, VGND = 0 V, TA = 25°C, unless otherwise noted. Guaranteed by design but not production tested.
Table 2. Parameter Limit at TMIN to TMAX Unit Test Conditions/Comments
t1 62 ns min SEN high to write time t2 10 ns min SEN to SCLK setup time t3 10 ns min SDATA to SCLK setup time t4 10 ns min SDATA to SCLK hold time t5 31 ns min SCLK high duration t6 31 ns min SCLK low duration t7 10 ns min SEN to SCLK hold time t8 20 ns max SEN to SDATA valid delay t9 20 ns max SCLK to SDATA valid delay t10 20 ns max SEN to SDATA disabled delay
