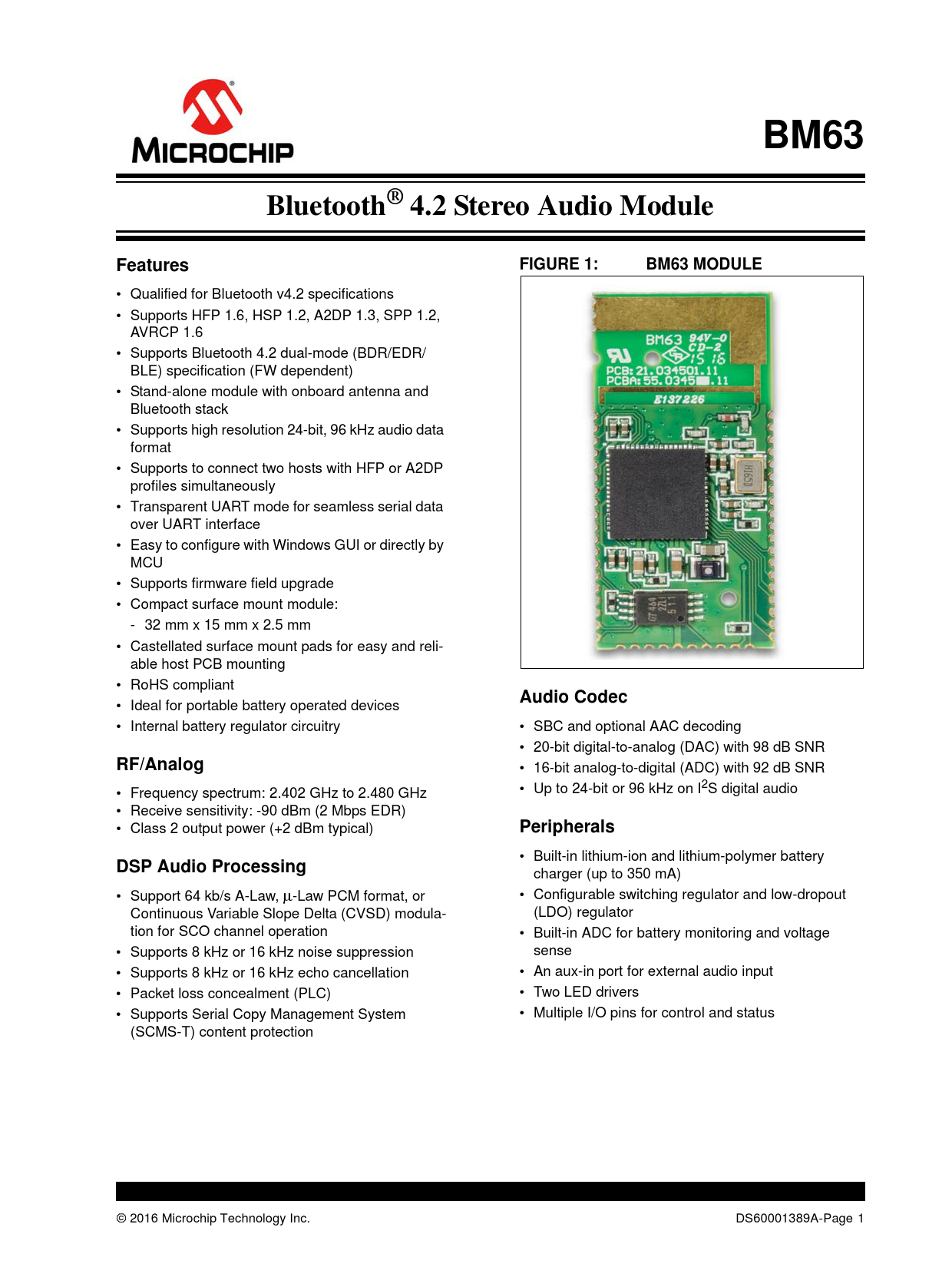

BM63. Bluetooth® 4.2 Stereo Audio Module. Features. FIGURE 1:. BM63 MODULE. Audio Codec. RF/Analog. Peripherals. DSP Audio Processing
该数据表的模型线
文件文字版本
BM63 Bluetooth® 4.2 Stereo Audio Module Features FIGURE 1: BM63 MODULE
• Qualified for Bluetooth v4.2 specifications • Supports HFP 1.6, HSP 1.2, A2DP 1.3, SPP 1.2, AVRCP 1.6 • Supports Bluetooth 4.2 dual-mode (BDR/EDR/ BLE) specification (FW dependent) • Stand-alone module with onboard antenna and Bluetooth stack • Supports high resolution 24-bit, 96 kHz audio data format • Supports to connect two hosts with HFP or A2DP profiles simultaneously • Transparent UART mode for seamless serial data over UART interface • Easy to configure with Windows GUI or directly by MCU • Supports firmware field upgrade • Compact surface mount module: - 32 mm x 15 mm x 2.5 mm • Castellated surface mount pads for easy and reli- able host PCB mounting • RoHS compliant
Audio Codec
• Ideal for portable battery operated devices • Internal battery regulator circuitry • SBC and optional AAC decoding • 20-bit digital-to-analog (DAC) with 98 dB SNR
RF/Analog
• 16-bit analog-to-digital (ADC) with 92 dB SNR • Frequency spectrum: 2.402 GHz to 2.480 GHz • Up to 24-bit or 96 kHz on I2S digital audio • Receive sensitivity: -90 dBm (2 Mbps EDR) • Class 2 output power (+2 dBm typical)
Peripherals
• Built-in lithium-ion and lithium-polymer battery
DSP Audio Processing
charger (up to 350 mA) • Support 64 kb/s A-Law, -Law PCM format, or • Configurable switching regulator and low-dropout Continuous Variable Slope Delta (CVSD) modula- (LDO) regulator tion for SCO channel operation • Built-in ADC for battery monitoring and voltage • Supports 8 kHz or 16 kHz noise suppression sense • Supports 8 kHz or 16 kHz echo cancellation • An aux-in port for external audio input • Packet loss concealment (PLC) • Two LED drivers • Supports Serial Copy Management System • Multiple I/O pins for control and status (SCMS-T) content protection 2016 Microchip Technology Inc. DS60001389A-Page 1 Document Outline Features RF/Analog DSP Audio Processing Audio Codec Peripherals HCI Interface MAC/Baseband Processor Operating Condition Compliance Applications Description
