Data Breif BM63 (Microchip) - 2
| 制造商 | Microchip |
| 描述 | Bluetooth 4.2 Stereo Audio Module |
| 页数 / 页 | 6 / 2 — BM63. HCI Interface. Operating Condition. MAC/Baseband Processor. … |
| 文件格式/大小 | PDF / 257 Kb |
| 文件语言 | 英语 |
BM63. HCI Interface. Operating Condition. MAC/Baseband Processor. Compliance. Applications. TABLE 1:. ORDERING INFORMATION. Device IC
该数据表的模型线
文件文字版本
link to page 2

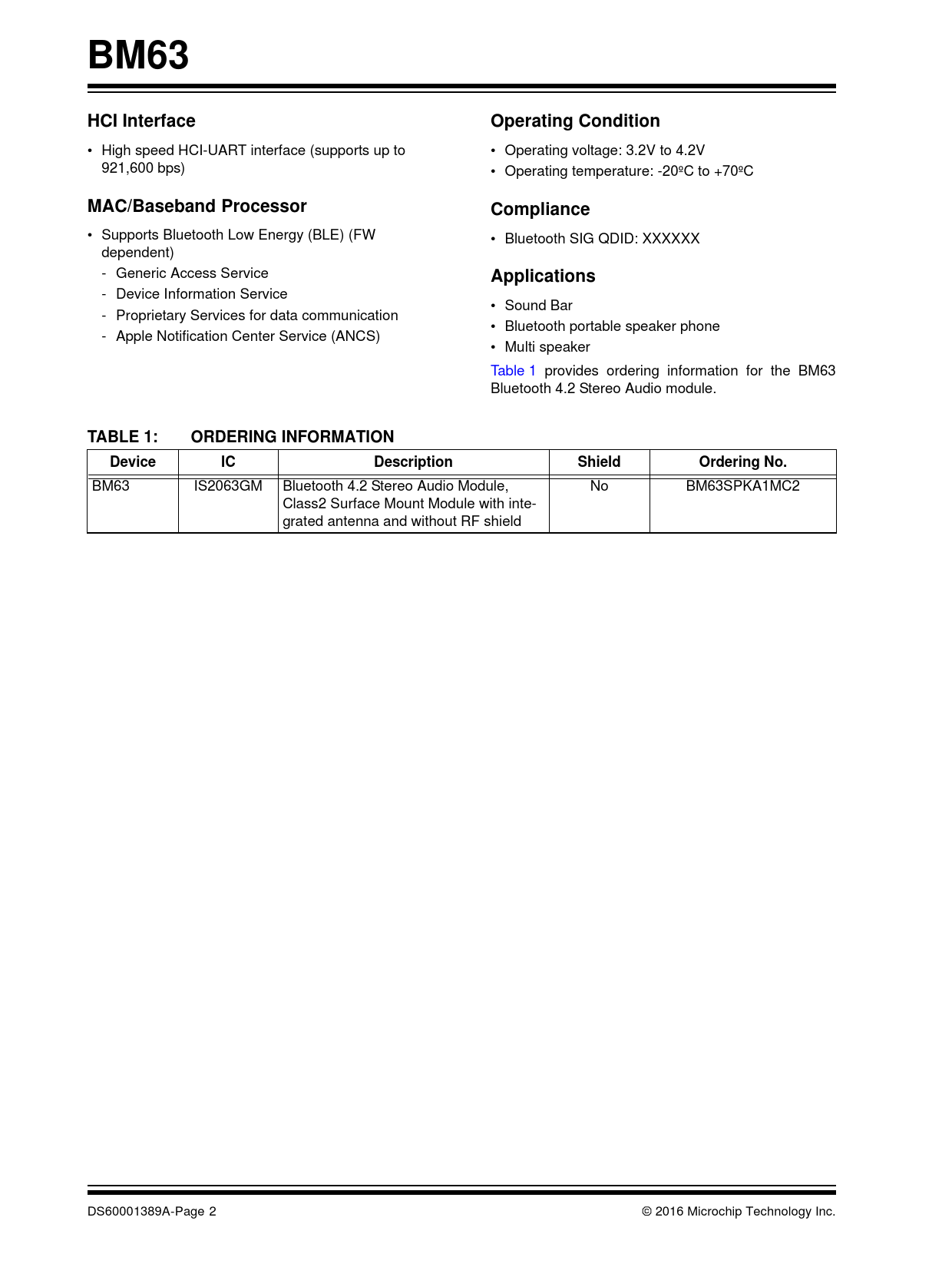

BM63 HCI Interface Operating Condition
• High speed HCI-UART interface (supports up to • Operating voltage: 3.2V to 4.2V 921,600 bps) • Operating temperature: -20ºC to +70ºC
MAC/Baseband Processor Compliance
• Supports Bluetooth Low Energy (BLE) (FW • Bluetooth SIG QDID: XXXXXX dependent) - Generic Access Service
Applications
- Device Information Service • Sound Bar - Proprietary Services for data communication • Bluetooth portable speaker phone - Apple Notification Center Service (ANCS) • Multi speaker Table 1 provides ordering information for the BM63 Bluetooth 4.2 Stereo Audio module.
TABLE 1: ORDERING INFORMATION Device IC Description Shield Ordering No.
BM63 IS2063GM Bluetooth 4.2 Stereo Audio Module, No BM63SPKA1MC2 Class2 Surface Mount Module with inte- grated antenna and without RF shield DS60001389A-Page 2 2016 Microchip Technology Inc. Document Outline Features RF/Analog DSP Audio Processing Audio Codec Peripherals HCI Interface MAC/Baseband Processor Operating Condition Compliance Applications Description
