BM90 Module Audio Interface
The module audio interface circuit consists of Stereo audio CODEC. One MIC. Input and Aux-in port Stereo outputs.

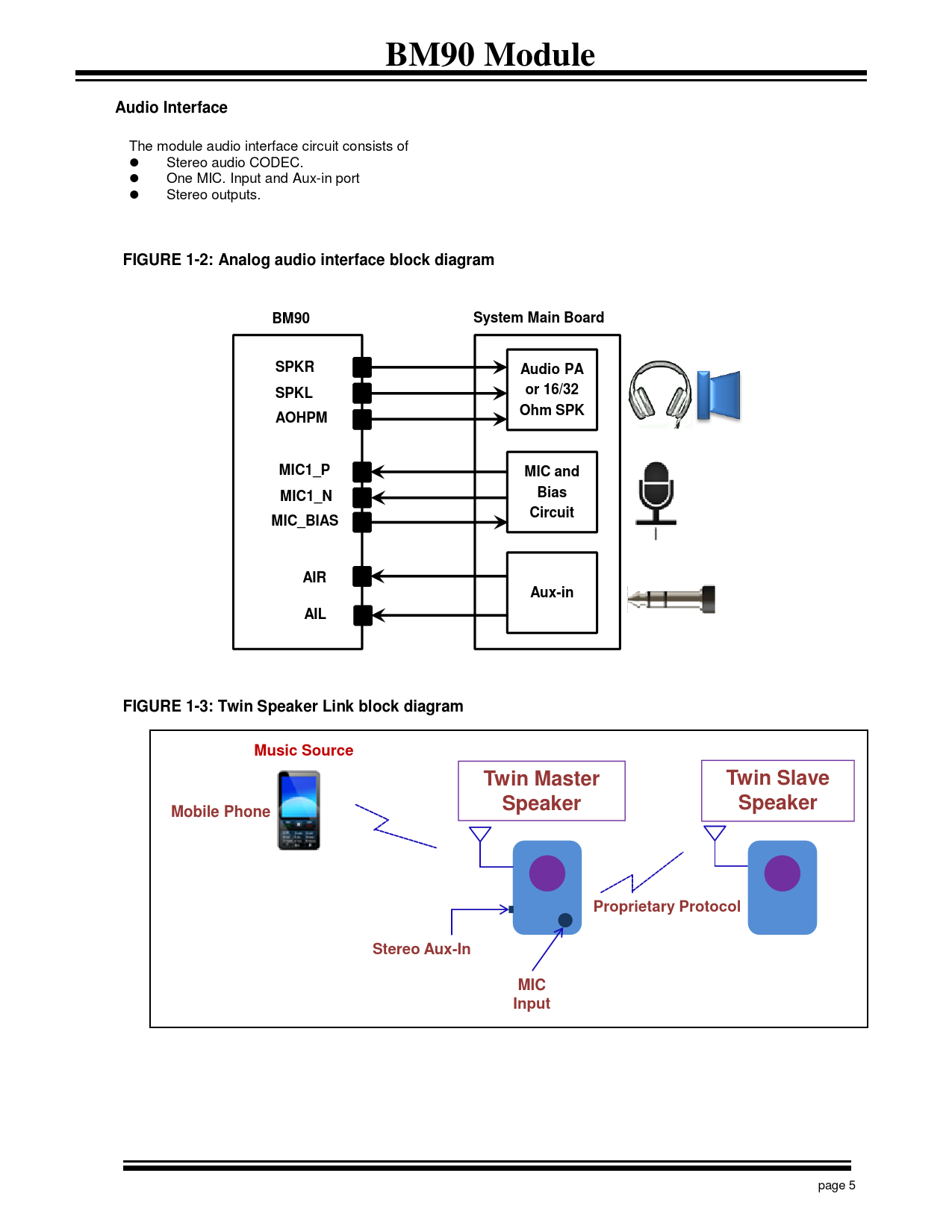

FIGURE 1-2: Analog audio interface block diagram BM90 System Main Board SPKR Audio PA or 16/32 SPKL Ohm SPK AOHPM MIC1_P MIC and Bias MIC1_N Circuit MIC_BIAS AIR Aux-in AIL FIGURE 1-3: Twin Speaker Link block diagram Music Source Twin Slave Twin Master Speaker Speaker Mobile Phone Proprietary Protocol Stereo Aux-In MIC Input
