LT1716

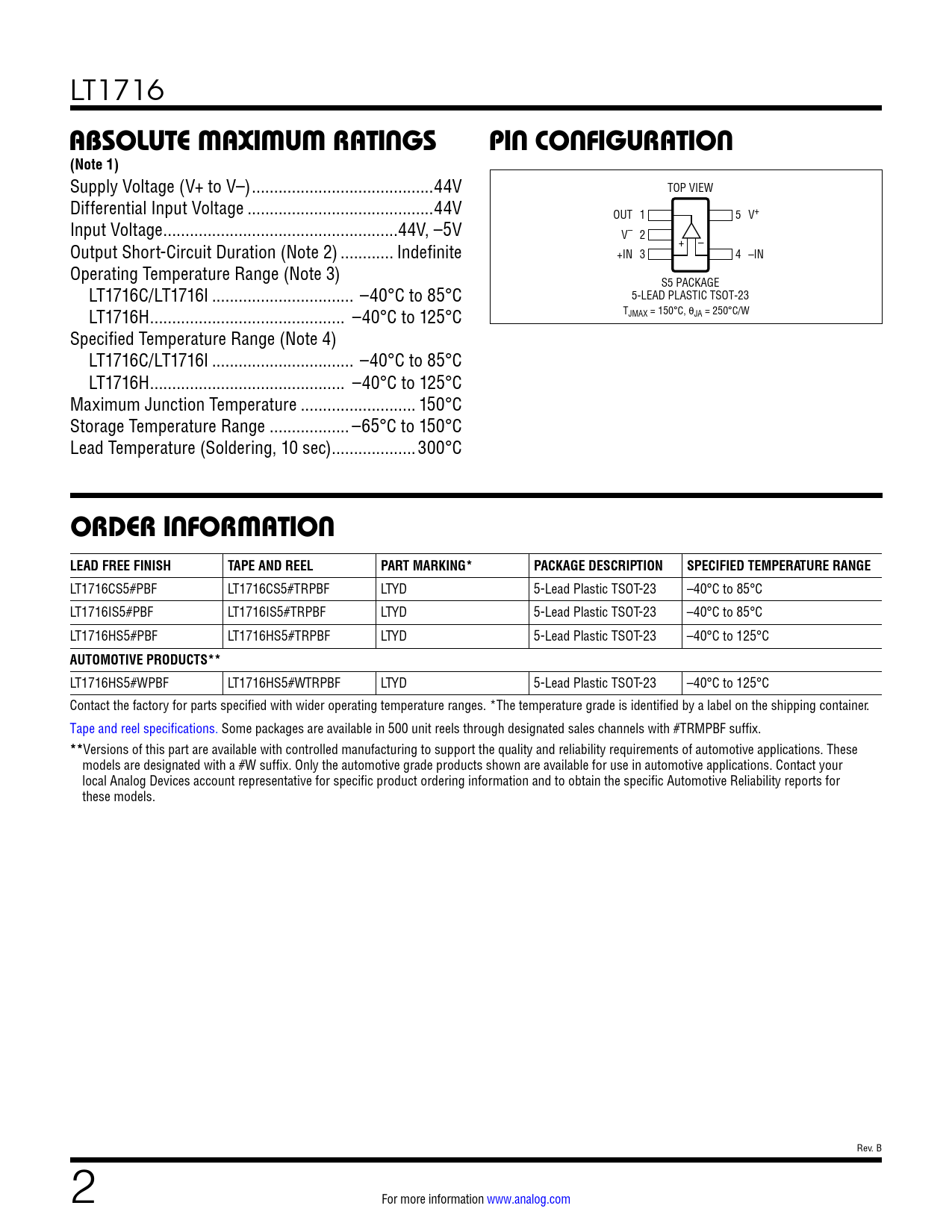

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–) ...44V TOP VIEW Differential Input Voltage ..44V OUT 1 5 V+ Input Voltage ...44V, –5V V– 2 Output Short-Circuit Duration (Note 2) .. Indefinite + – +IN 3 4 –IN Operating Temperature Range (Note 3) S5 PACKAGE LT1716C/LT1716I .. –40°C to 85°C 5-LEAD PLASTIC TSOT-23 LT1716H .. –40°C to 125°C TJMAX = 150°C, θJA = 250°C/W Specified Temperature Range (Note 4) LT1716C/LT1716I .. –40°C to 85°C LT1716H .. –40°C to 125°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1716CS5#PBF LT1716CS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 85°C LT1716IS5#PBF LT1716IS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 85°C LT1716HS5#PBF LT1716HS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 125°C
AUTOMOTIVE PRODUCTS**
LT1716HS5#WPBF LT1716HS5#WTRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical ApplicationS Related Parts
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–) ...44V TOP VIEW Differential Input Voltage ..44V OUT 1 5 V+ Input Voltage ...44V, –5V V– 2 Output Short-Circuit Duration (Note 2) .. Indefinite + – +IN 3 4 –IN Operating Temperature Range (Note 3) S5 PACKAGE LT1716C/LT1716I .. –40°C to 85°C 5-LEAD PLASTIC TSOT-23 LT1716H .. –40°C to 125°C TJMAX = 150°C, θJA = 250°C/W Specified Temperature Range (Note 4) LT1716C/LT1716I .. –40°C to 85°C LT1716H .. –40°C to 125°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1716CS5#PBF LT1716CS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 85°C LT1716IS5#PBF LT1716IS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 85°C LT1716HS5#PBF LT1716HS5#TRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 125°C
AUTOMOTIVE PRODUCTS**
LT1716HS5#WPBF LT1716HS5#WTRPBF LTYD 5-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical ApplicationS Related Parts
