Datasheet CMP04 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Quad Low Power, Precision Comparator |
| 页数 / 页 | 8 / 1 — Quad Low Power,. Precision Comparator. CMP04. FEATURES. PIN CONNECTIONS. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 219 Kb |
| 文件语言 | 英语 |
Quad Low Power,. Precision Comparator. CMP04. FEATURES. PIN CONNECTIONS. High Gain: 200 V/mV Typ Single- or Dual-Supply Operation
该数据表的模型线
文件文字版本
a

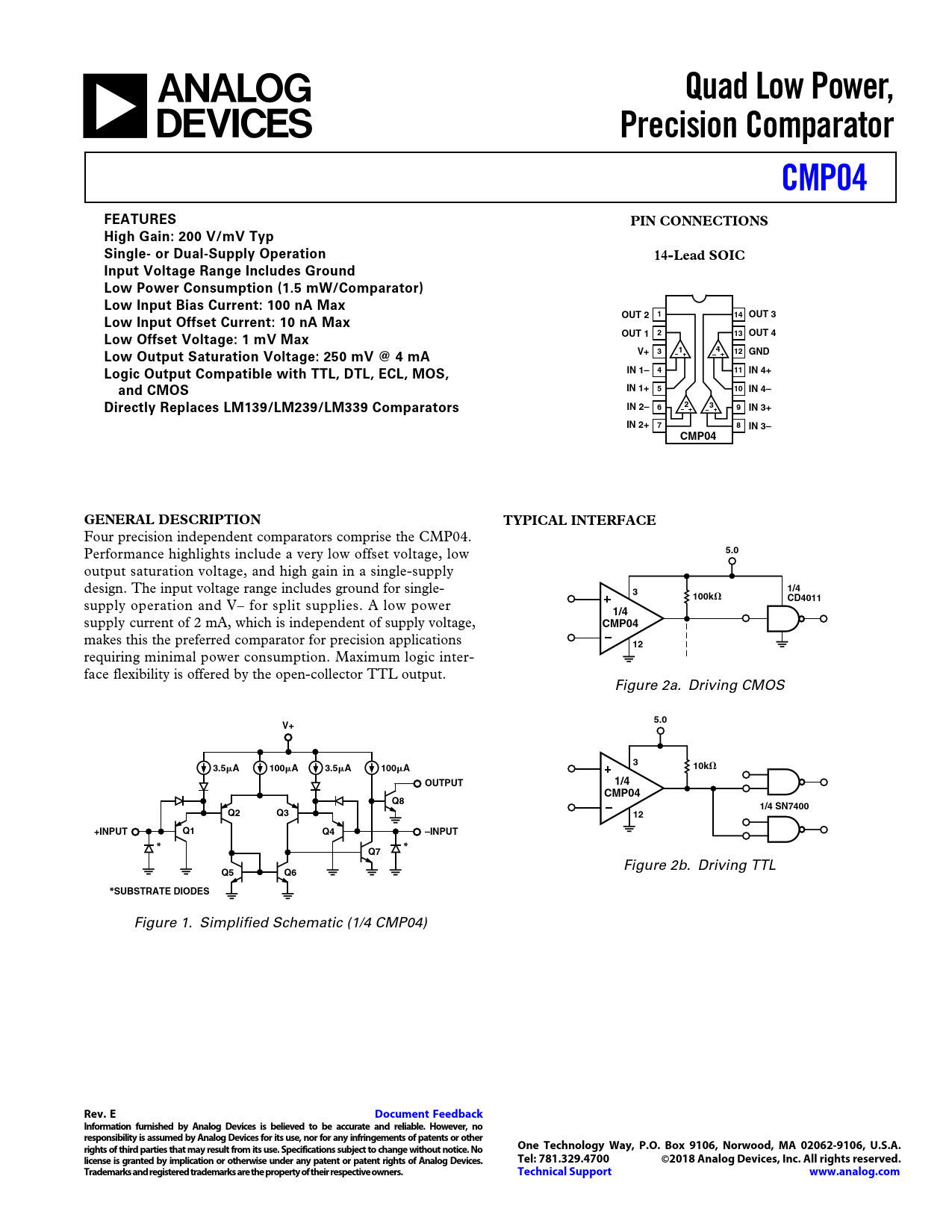

Quad Low Power, Precision Comparator CMP04 FEATURES PIN CONNECTIONS High Gain: 200 V/mV Typ Single- or Dual-Supply Operation 14-Lead SOIC Input Voltage Range Includes Ground Low Power Consumption (1.5 mW/Comparator) Low Input Bias Current: 100 nA Max OUT 2 1 14 OUT 3 Low Input Offset Current: 10 nA Max OUT 1 2 13 Low Offset Voltage: 1 mV Max OUT 4 1 4 Low Output Saturation Voltage: 250 mV @ 4 mA V+ 3 12 GND Logic Output Compatible with TTL, DTL, ECL, MOS, IN 1– 4 11 IN 4+ and CMOS IN 1+ 5 10 IN 4– Directly Replaces LM139/LM239/LM339 Comparators IN 2– 6 2 3 9 IN 3+ IN 2+ 7 8 IN 3– CMP04 GENERAL DESCRIPTION TYPICAL INTERFACE
Four precision independent comparators comprise the CMP04. Performance highlights include a very low offset voltage, low
5.0
output saturation voltage, and high gain in a single-supply design. The input voltage range includes ground for single-
1/4 3 100k
⍀
CD4011
supply operation and V– for split supplies. A low power
1/4
supply current of 2 mA, which is independent of supply voltage,
CMP04
makes this the preferred comparator for precision applications
12
requiring minimal power consumption. Maximum logic inter- face flexibility is offered by the open-collector TTL output. Figure 2a. Driving CMOS
5.0 V+ 3 3.5
A 100
A 3.5
A 100
A 10k
⍀
OUTPUT 1/4 CMP04 Q8 1/4 SN7400 Q2 Q3 12 +INPUT Q1 Q4 –INPUT * * Q7
Figure 2b. Driving TTL
Q5 Q6 *SUBSTRATE DIODES
Figure 1. Simplified Schematic (1/4 CMP04)
