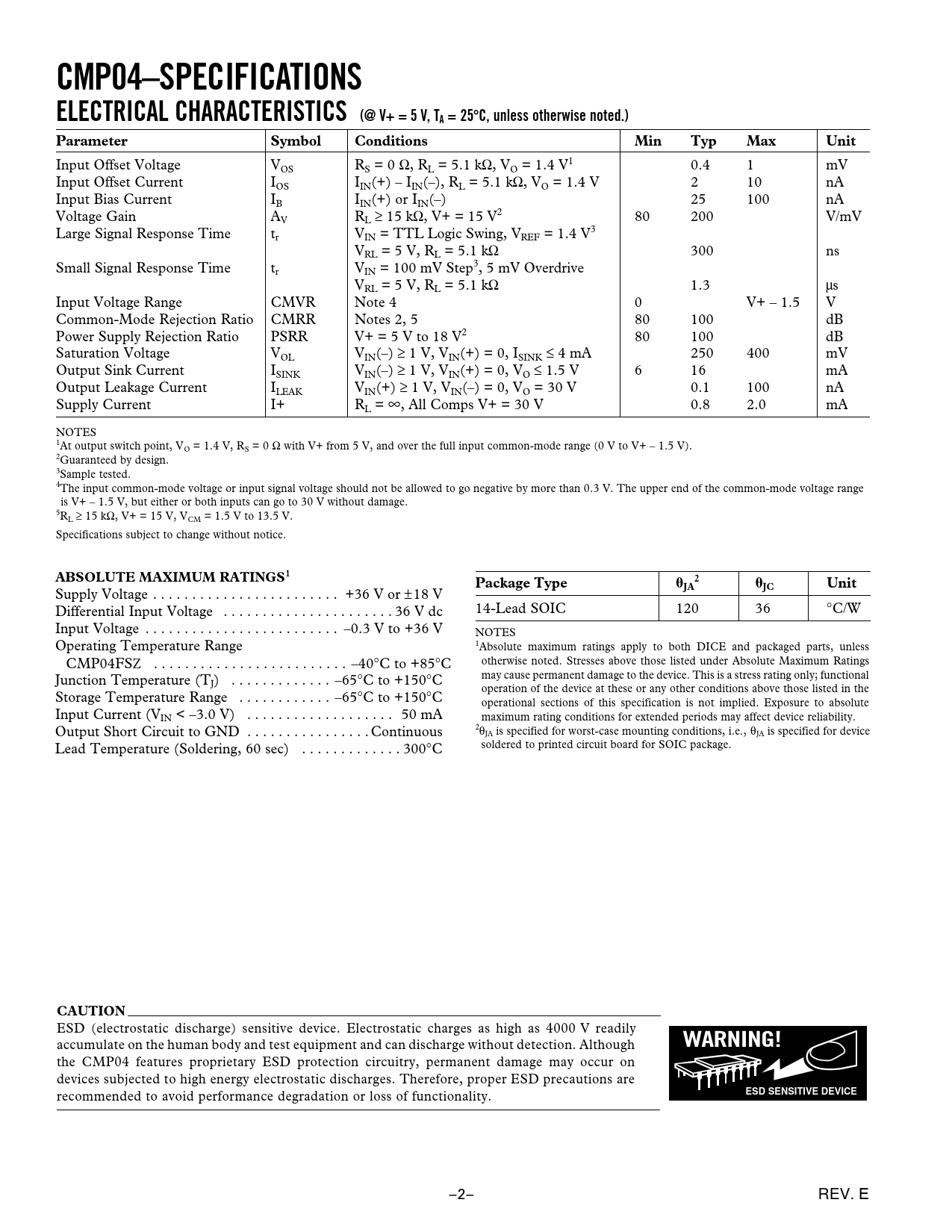

CMP04–SPECIFICATIONS ELECTRICAL CHARACTERISTICS (@ V+ = 5 V, TA = 25
ⴗ
C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit
Input Offset Voltage VOS RS = 0 Ω, RL = 5.1 kΩ, VO = 1.4 V1 0.4 1 mV Input Offset Current IOS IIN(+) – IIN(–), RL = 5.1 kΩ, VO = 1.4 V 2 10 nA Input Bias Current IB IIN(+) or IIN(–) 25 100 nA Voltage Gain AV RL ≥ 15 kΩ, V+ = 15 V2 80 200 V/mV Large Signal Response Time tr VIN = TTL Logic Swing, VREF = 1.4 V3 VRL = 5 V, RL = 5.1 kΩ 300 ns Small Signal Response Time tr VIN = 100 mV Step3, 5 mV Overdrive VRL = 5 V, RL = 5.1 kΩ 1.3 µs Input Voltage Range CMVR Note 4 0 V+ – 1.5 V Common-Mode Rejection Ratio CMRR Notes 2, 5 80 100 dB Power Supply Rejection Ratio PSRR V+ = 5 V to 18 V2 80 100 dB Saturation Voltage VOL VIN(–) ≥ 1 V, VIN(+) = 0, ISINK ≤ 4 mA 250 400 mV Output Sink Current ISINK VIN(–) ≥ 1 V, VIN(+) = 0, VO ≤ 1.5 V 6 16 mA Output Leakage Current ILEAK VIN(+) ≥ 1 V, VIN(–) = 0, VO = 30 V 0.1 100 nA Supply Current I+ RL = ∞, All Comps V+ = 30 V 0.8 2.0 mA NOTES 1At output switch point, VO = 1.4 V, RS = 0 Ω with V+ from 5 V, and over the full input common-mode range (0 V to V+ – 1.5 V). 2Guaranteed by design. 3Sample tested. 4The input common-mode voltage or input signal voltage should not be allowed to go negative by more than 0.3 V. The upper end of the common-mode voltage range is V+ – 1.5 V, but either or both inputs can go to 30 V without damage. 5RL ≥ 15 kΩ, V+ = 15 V, VCM = 1.5 V to 13.5 V. Specifications subject to change without notice.
ABSOLUTE MAXIMUM RATINGS1 Package Type
␪
2
␪
JA JC Unit
Supply Voltage . +36 V or ± 18 V Differential Input Voltage . 36 V dc 14-Lead SOIC 120 36 °C/W Input Voltage . –0.3 V to +36 V NOTES Operating Temperature Range 1Absolute maximum ratings apply to both DICE and packaged parts, unless CMP04FSZ . –40°C to +85°C otherwise noted. Stresses above those listed under Absolute Maximum Ratings Junction Temperature (T may cause permanent damage to the device. This is a stress rating only; functional J) . –65°C to +150°C operation of the device at these or any other conditions above those listed in the Storage Temperature Range . –65°C to +150°C operational sections of this specification is not implied. Exposure to absolute Input Current (VIN < –3.0 V) . 50 mA maximum rating conditions for extended periods may affect device reliability. Output Short Circuit to GND . Continuous 2θJA is specified for worst-case mounting conditions, i.e., θJA is specified for device Lead Temperature (Soldering, 60 sec) . 300°C soldered to printed circuit board for SOIC package.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the CMP04 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
ESD SENSITIVE DEVICE
