IR53H(D)420. Symbol. Definition. Minimum. Maximum. Units. IR53H(D)420 RT vs Frequency. IR2153 RT vs Frequency. Frequency (Hz). RT (ohms)
该数据表的模型线
文件文字版本

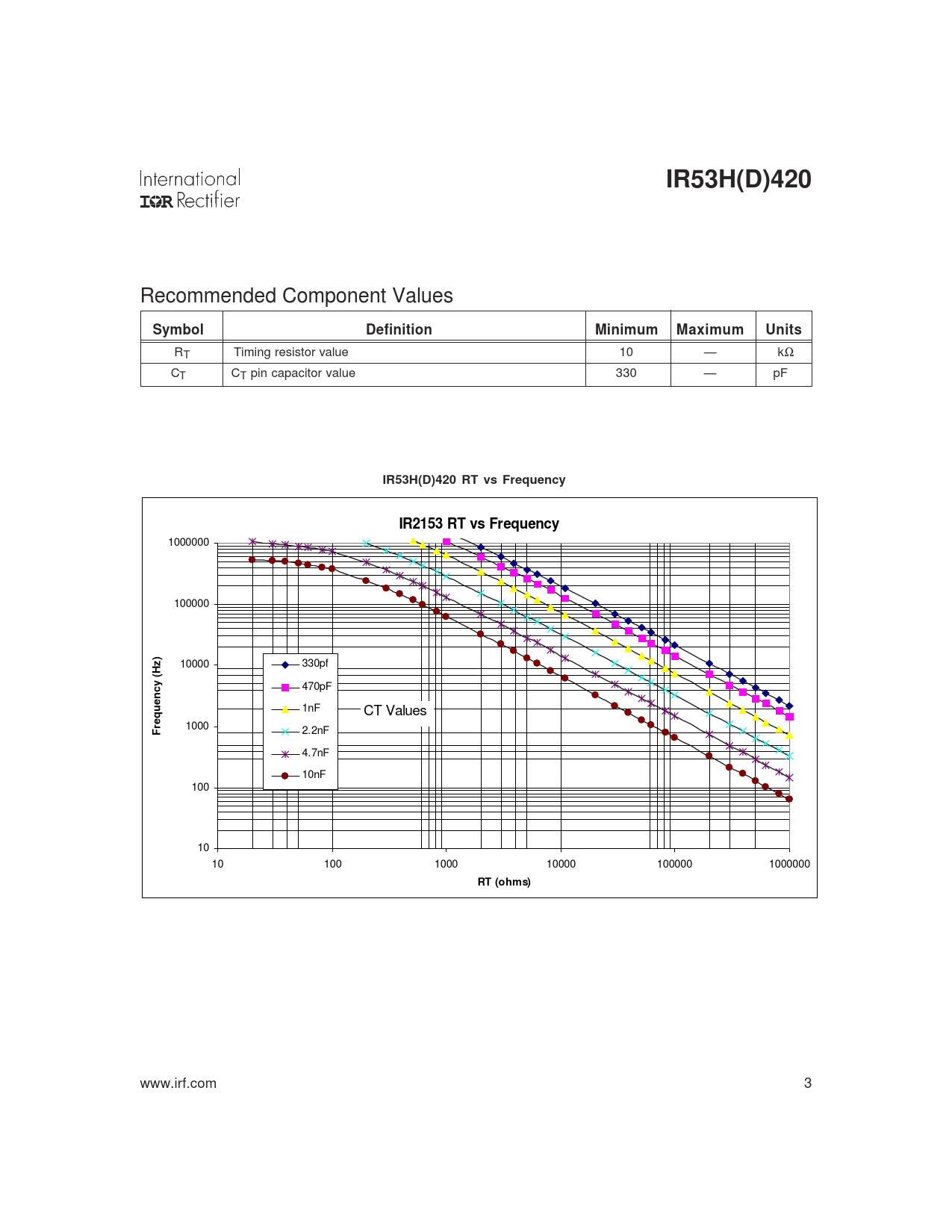

IR53H(D)420
Recommended Component Values
Symbol Definition Minimum Maximum Units
RT Timing resistor value 10 — kΩ CT CT pin capacitor value 330 — pF
IR53H(D)420 RT vs Frequency IR2153 RT vs Frequency
1000000 100000 10000 330pf 470pF 1nF CT Values 1000
Frequency (Hz)
2.2nF 4.7nF 10nF 100 10 10 100 1000 10000 100000 1000000
RT (ohms)
www.irf.com 3
Recommended Component Values
Symbol Definition Minimum Maximum Units
RT Timing resistor value 10 — kΩ CT CT pin capacitor value 330 — pF
IR53H(D)420 RT vs Frequency IR2153 RT vs Frequency
1000000 100000 10000 330pf 470pF 1nF CT Values 1000
Frequency (Hz)
2.2nF 4.7nF 10nF 100 10 10 100 1000 10000 100000 1000000
RT (ohms)
www.irf.com 3
