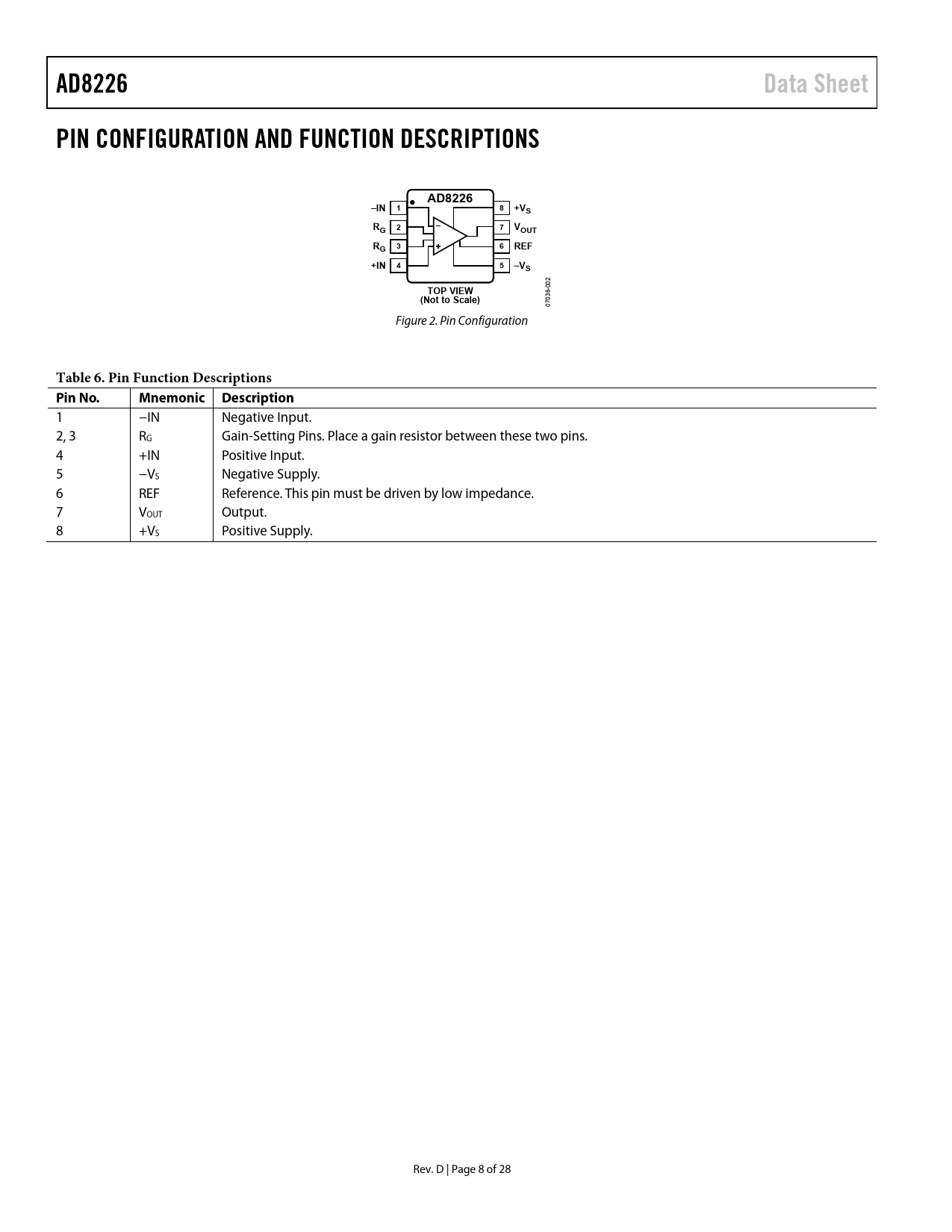

AD8226. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +VS. RG 2. 7 VOUT. RG 3. 6 REF. +IN 4. 5 –VS. TOP VIEW
该数据表的模型线
文件文字版本
AD8226 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8226 –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS TOP VIEW
002
(Not to Scale)
07036- Figure 2. Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input. 2, 3 RG Gain-Setting Pins. Place a gain resistor between these two pins. 4 +IN Positive Input. 5 −VS Negative Supply. 6 REF Reference. This pin must be driven by low impedance. 7 VOUT Output. 8 +VS Positive Supply. Rev. D | Page 8 of 28 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ARCHITECTURE GAIN SELECTION REFERENCE TERMINAL INPUT VOLTAGE RANGE Performance Across Temperature Recommendation for Best Performance LAYOUT Common-Mode Rejection Ratio Over Frequency Power Supplies References INPUT BIAS CURRENT RETURN PATH INPUT PROTECTION RADIO FREQUENCY INTERFERENCE (RFI) APPLICATIONS INFORMATION DIFFERENTIAL DRIVE Tips for Best Differential Output Performance PRECISION STRAIN GAGE DRIVING AN ADC OUTLINE DIMENSIONS ORDERING GUIDE
