IR11-21C
该数据表的模型线
文件文字版本
IR11-21C

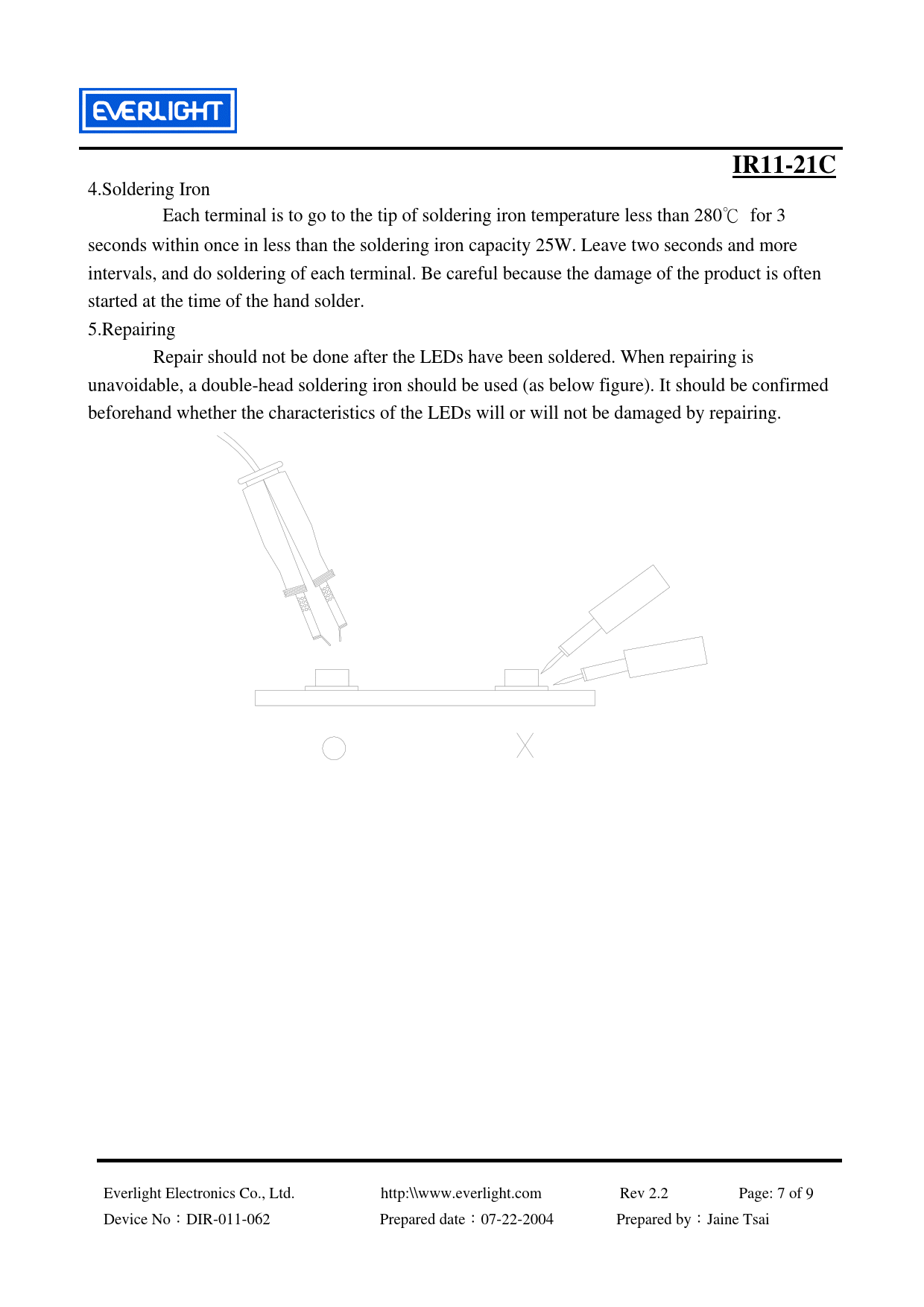

4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2.2 Page: 7 of 9 Device No：DIR-011-062 Prepared date：07-22-2004 Prepared by：Jaine Tsai
