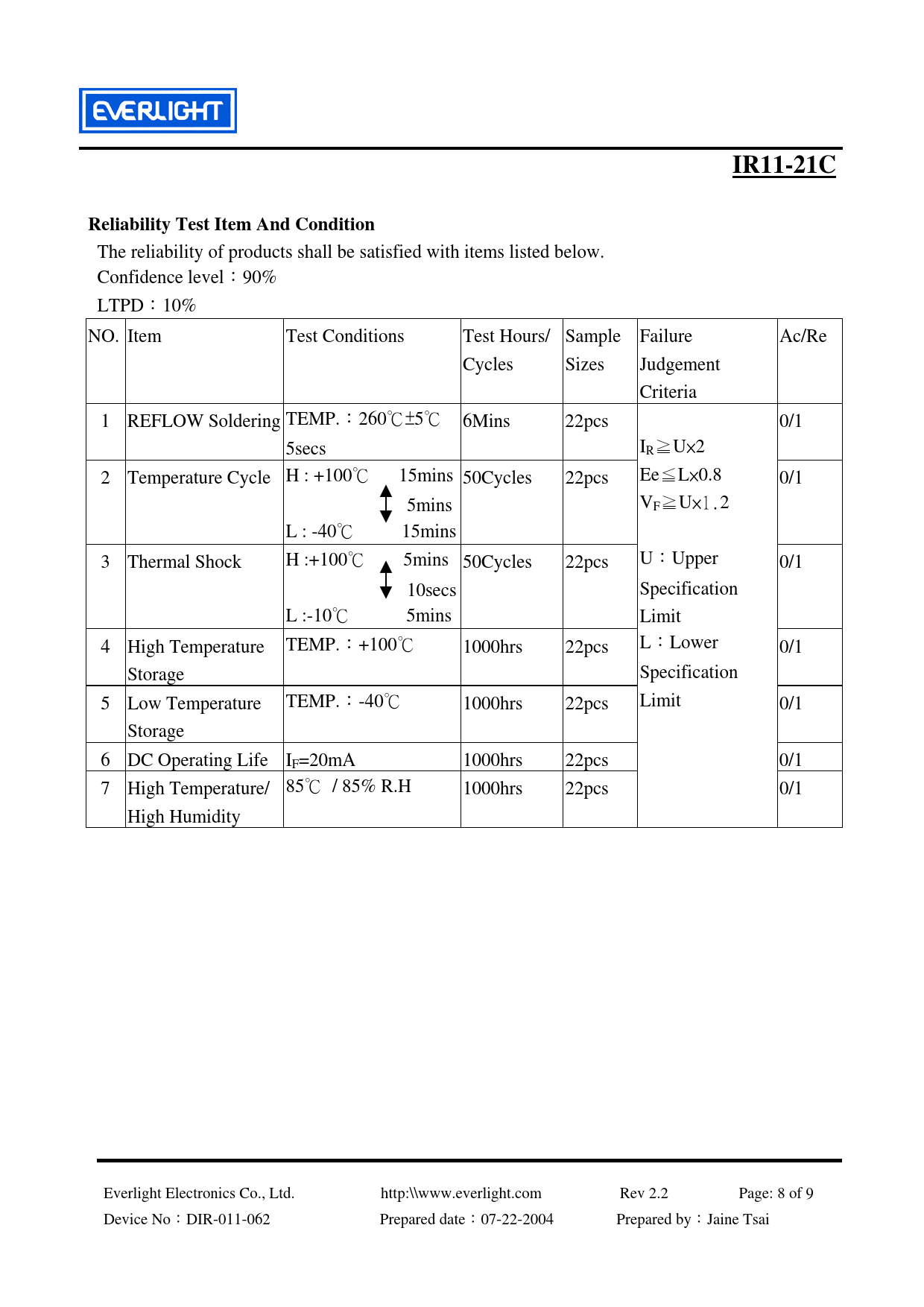

IR11-21C. Reliability Test Item And Condition
该数据表的模型线
文件文字版本
IR11-21C Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Failure Ac/Re Cycles Sizes Judgement Criteria 1 REFLOW Soldering TEMP.：260℃±5℃ 6Mins 22pcs 0/1 5secs IR≧U×2 2 Temperature Cycle H : +100℃ 15mins 50Cycles 22pcs Ee≦L×0.8 0/1 5mins VF≧U×1.2 L : -40℃ 15mins 3 Thermal Shock H :+100℃ 5mins 50Cycles 22pcs U：Upper 0/1 10secs Specification L :-10℃ 5mins Limit 4 High Temperature TEMP.：+100℃ 1000hrs 22pcs L：Lower 0/1 Storage Specification 5 Low Temperature TEMP.：-40℃ 1000hrs 22pcs Limit 0/1 Storage 6 DC Operating Life IF=20mA 1000hrs 22pcs 0/1 7 High Temperature/ 85℃ / 85% R.H 1000hrs 22pcs 0/1 High Humidity Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2.2 Page: 8 of 9 Device No：DIR-011-062 Prepared date：07-22-2004 Prepared by：Jaine Tsai
