PD15-22C. Package Dimensions. Notes:. Absolute Maximum Ratings (Ta=25. Parameter Symbol. Rating. Units
该数据表的模型线
文件文字版本

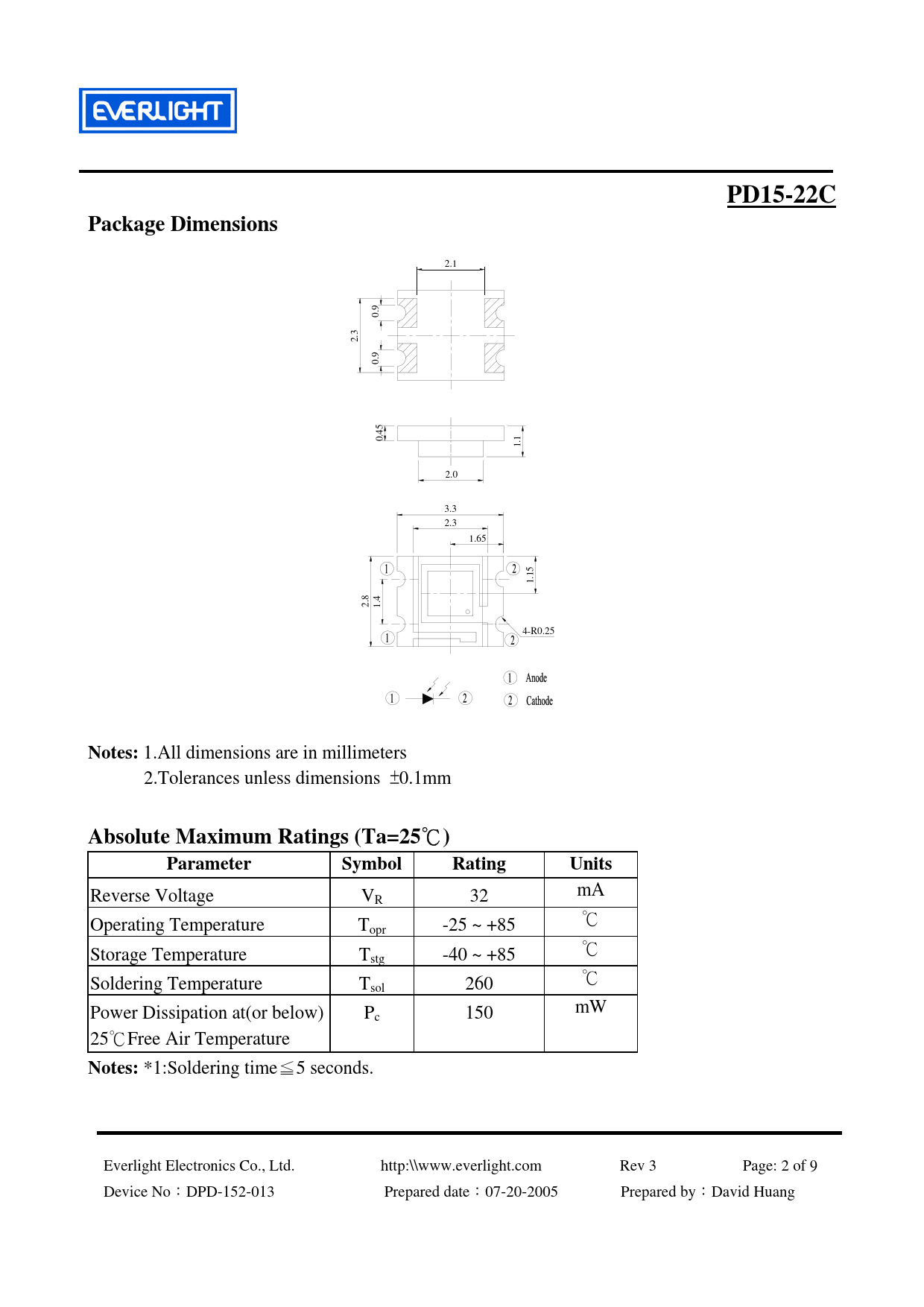

PD15-22C Package Dimensions
2.1 9 0. 3 2. 9 0. 0.45 1.1 2.0 3.3 2.3 1.65 15 1. 4 2.8 1. 4-R0.25
Notes:
1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm
Absolute Maximum Ratings (Ta=25
℃
) Parameter Symbol Rating Units
Reverse Voltage VR 32 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Soldering Temperature Tsol 260 ℃ Power Dissipation at(or below) Pc 150 mW 25℃Free Air Temperature
Notes:
*1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 3 Page: 2 of 9 Device No：DPD-152-013 Prepared date：07-20-2005 Prepared by：David Huang
