Datasheet ADA4610-1, ADA4610-2, ADA4610-4 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Low Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp |
| 页数 / 页 | 27 / 9 — Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. OUT A 1. –IN A. ADA4610-2. OUT … |
| 修订版 | I |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |
Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. OUT A 1. –IN A. ADA4610-2. OUT B. TOP VIEW. +IN A 3. –IN B. (Not to Scale). +IN B. –IN A 2. V– 4. 8 V+
该数据表的模型线
- ADA4610-1ARJZ-R2 ADA4610-1ARJZ-R7 ADA4610-1ARJZ-RL ADA4610-1ARZ ADA4610-1ARZ-R7 ADA4610-1ARZ-RL ADA4610-1BRZ ADA4610-1BRZ-R7 ADA4610-1BRZ-RL
文件文字版本

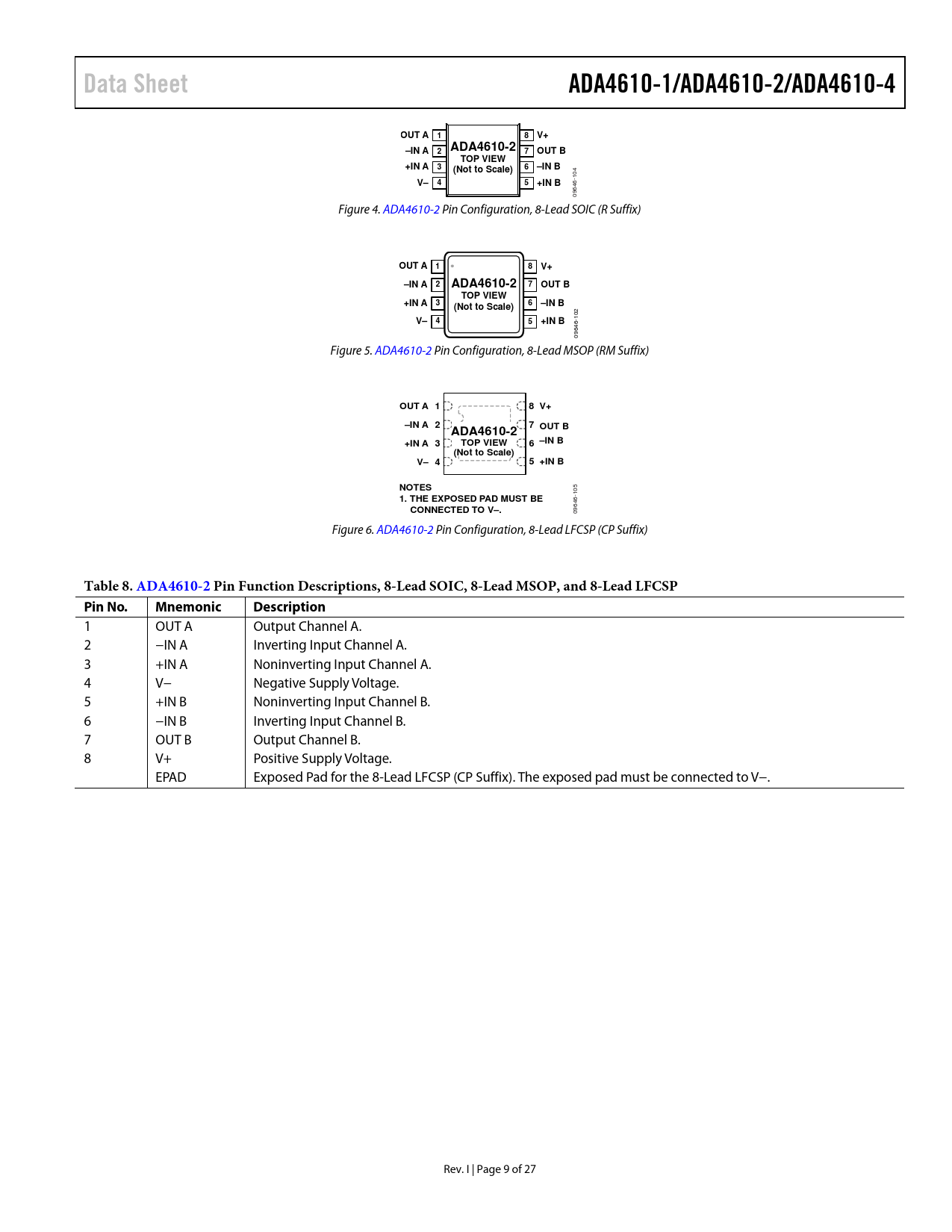

Data Sheet ADA4610-1/ADA4610-2/ADA4610-4 OUT A 1 8 V+ –IN A ADA4610-2 2 7 OUT B TOP VIEW +IN A 3 6 –IN B (Not to Scale)
104
V– 4 5 +IN B
09646- Figure 4. ADA4610-2 Pin Configuration, 8-Lead SOIC (R Suffix)
OUT A 1 8 V+ –IN A 2 ADA4610-2 7 OUT B TOP VIEW +IN A 3 6 –IN B (Not to Scale)
102
V– 4 5 +IN B
09646- Figure 5. ADA4610-2 Pin Configuration, 8-Lead MSOP (RM Suffix)
OUT A 1 8 V+ –IN A 2 7 OUT B ADA4610-2 +IN A –IN B 3 TOP VIEW 6 (Not to Scale) V– 4 5 +IN B NOTES
105
1. THE EXPOSED PAD MUST BE CONNECTED TO V–.
09646- Figure 6. ADA4610-2 Pin Configuration, 8-Lead LFCSP (CP Suffix)
Table 8. ADA4610-2 P in Function Descriptions, 8-Lead SOIC, 8-Lead MSOP, and 8-Lead LFCSP Pin No. Mnemonic Description
1 OUT A Output Channel A. 2 −IN A Inverting Input Channel A. 3 +IN A Noninverting Input Channel A. 4 V− Negative Supply Voltage. 5 +IN B Noninverting Input Channel B. 6 −IN B Inverting Input Channel B. 7 OUT B Output Channel B. 8 V+ Positive Supply Voltage. EPAD Exposed Pad for the 8-Lead LFCSP (CP Suffix). The exposed pad must be connected to V−. Rev. I | Page 9 of 27 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Comparative Voltage and Variable Voltage Graphs Theory of Operation Applications Information Input Overvoltage Protection Peak Detector Current to Voltage (I to V) Conversion Applications Photodiode Circuits Comparator Operation Long-Term Drift Temperature Hysteresis Outline Dimensions Ordering Guide
