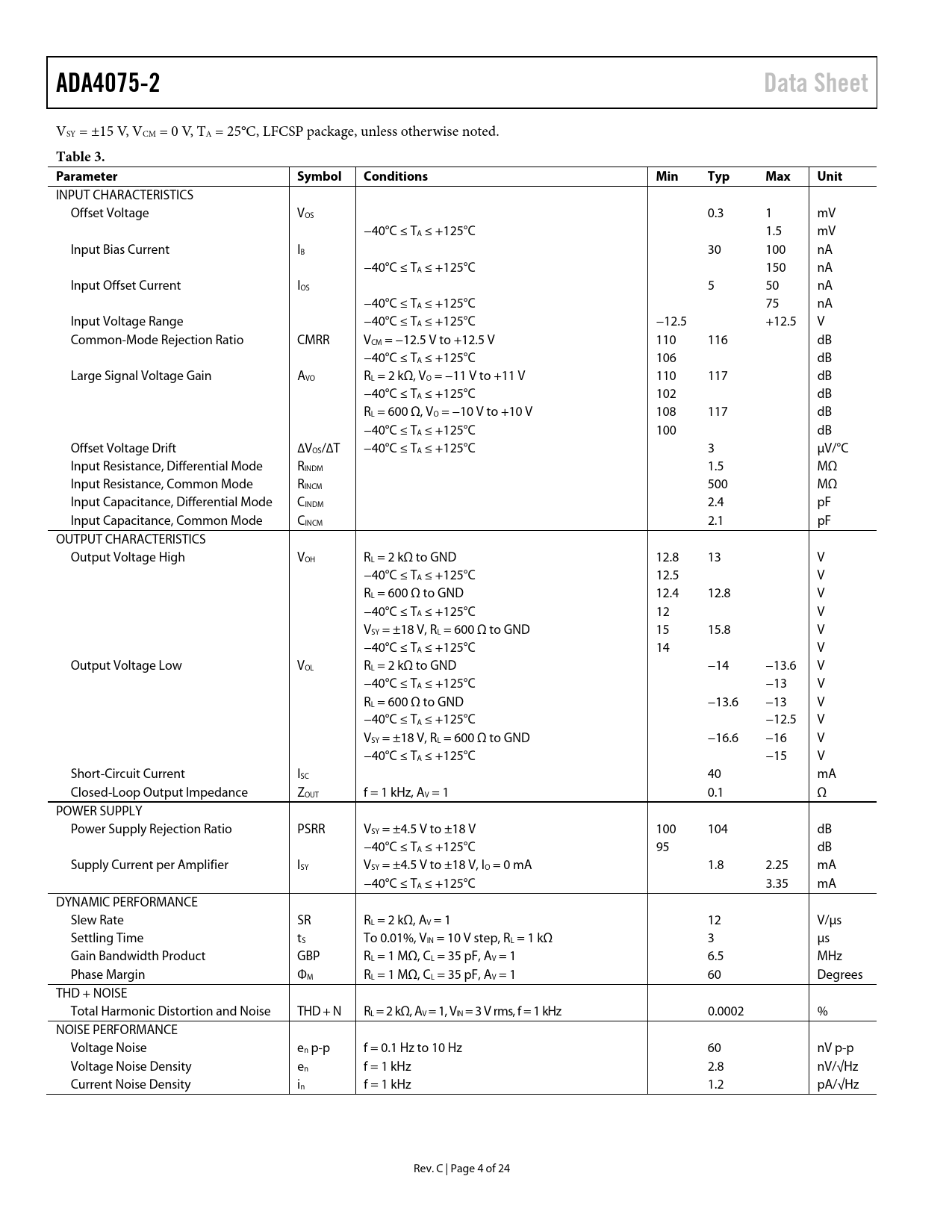

ADA4075-2 Data Sheet
VSY = ±15 V, VCM = 0 V, TA = 25°C, LFCSP package, unless otherwise noted.
Table 3. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 0.3 1 mV −40°C ≤ TA ≤ +125°C 1.5 mV Input Bias Current IB 30 100 nA −40°C ≤ TA ≤ +125°C 150 nA Input Offset Current IOS 5 50 nA −40°C ≤ TA ≤ +125°C 75 nA Input Voltage Range −40°C ≤ TA ≤ +125°C −12.5 +12.5 V Common-Mode Rejection Ratio CMRR VCM = −12.5 V to +12.5 V 110 116 dB −40°C ≤ TA ≤ +125°C 106 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VO = −11 V to +11 V 110 117 dB −40°C ≤ TA ≤ +125°C 102 dB RL = 600 Ω, VO = −10 V to +10 V 108 117 dB −40°C ≤ TA ≤ +125°C 100 dB Offset Voltage Drift ∆VOS/∆T −40°C ≤ TA ≤ +125°C 3 µV/°C Input Resistance, Differential Mode RINDM 1.5 MΩ Input Resistance, Common Mode RINCM 500 MΩ Input Capacitance, Differential Mode CINDM 2.4 pF Input Capacitance, Common Mode CINCM 2.1 pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 2 kΩ to GND 12.8 13 V −40°C ≤ TA ≤ +125°C 12.5 V RL = 600 Ω to GND 12.4 12.8 V −40°C ≤ TA ≤ +125°C 12 V VSY = ±18 V, RL = 600 Ω to GND 15 15.8 V −40°C ≤ TA ≤ +125°C 14 V Output Voltage Low VOL RL = 2 kΩ to GND −14 −13.6 V −40°C ≤ TA ≤ +125°C −13 V RL = 600 Ω to GND −13.6 −13 V −40°C ≤ TA ≤ +125°C −12.5 V VSY = ±18 V, RL = 600 Ω to GND −16.6 −16 V −40°C ≤ TA ≤ +125°C −15 V Short-Circuit Current ISC 40 mA Closed-Loop Output Impedance ZOUT f = 1 kHz, AV = 1 0.1 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±4.5 V to ±18 V 100 104 dB −40°C ≤ TA ≤ +125°C 95 dB Supply Current per Amplifier ISY VSY = ±4.5 V to ±18 V, IO = 0 mA 1.8 2.25 mA −40°C ≤ TA ≤ +125°C 3.35 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ, AV = 1 12 V/µs Settling Time tS To 0.01%, VIN = 10 V step, RL = 1 kΩ 3 µs Gain Bandwidth Product GBP RL = 1 MΩ, CL = 35 pF, AV = 1 6.5 MHz Phase Margin ΦM RL = 1 MΩ, CL = 35 pF, AV = 1 60 Degrees THD + NOISE Total Harmonic Distortion and Noise THD + N RL = 2 kΩ, AV = 1, VIN = 3 V rms, f = 1 kHz 0.0002 % NOISE PERFORMANCE Voltage Noise en p-p f = 0.1 Hz to 10 Hz 60 nV p-p Voltage Noise Density en f = 1 kHz 2.8 nV/√Hz Current Noise Density in f = 1 kHz 1.2 pA/√Hz Rev. C | Page 4 of 24 Document Outline Features Applications Pin Configurations General Description Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Resistance Power Sequencing ESD Caution Typical Performance Characteristics Applications Information Input Protection Total Harmonic Distortion Phase Reversal DAC Output Filter Balanced Line Driver Balanced Line Receiver Low Noise Parametric Equalizer Schematic Outline Dimensions Ordering Guide
