PN200. Physical Dimensions. A / MMBT200 — PNP Ge. neral-. Pur. p ose Am. plif. ier

PN200 Physical Dimensions A / MMBT200 — PNP Ge neral- Pur p ose Am plif ier

该数据表的模型线

文件文字版本

PN200 Physical Dimensions
(Continued)
A / MMBT200 — PNP Ge
SOT-23 2.92±0.20 0.95 3 1.40
neral-
1.30+0.20 -0.15 2.20
Pur
1 2 (0.29) 0.60
p ose Am
0.37 0.95 0.20 A B 1.00 1.90 1.90 LAND PATTERN
plif
RECOMMENDATION
ier
1.20 MAX SEE DETAIL A (0.93) 0.10 0.00 0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE A) REFERENCE JEDEC REGISTRATION TO-236, VARIATION AB, ISSUE H. B) ALL DIMENSIONS ARE IN MILLIMETERS. 0.23 0.08 C) DIMENSIONS ARE INCLUSIVE OF BURRS, 0.25 MOLD FLASH AND TIE BAR EXTRUSIONS. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994. 0.20 MIN SEATING E) DRAWING FILE NAME: MA03DREV10 (0.55) PLANE SCALE: 2X

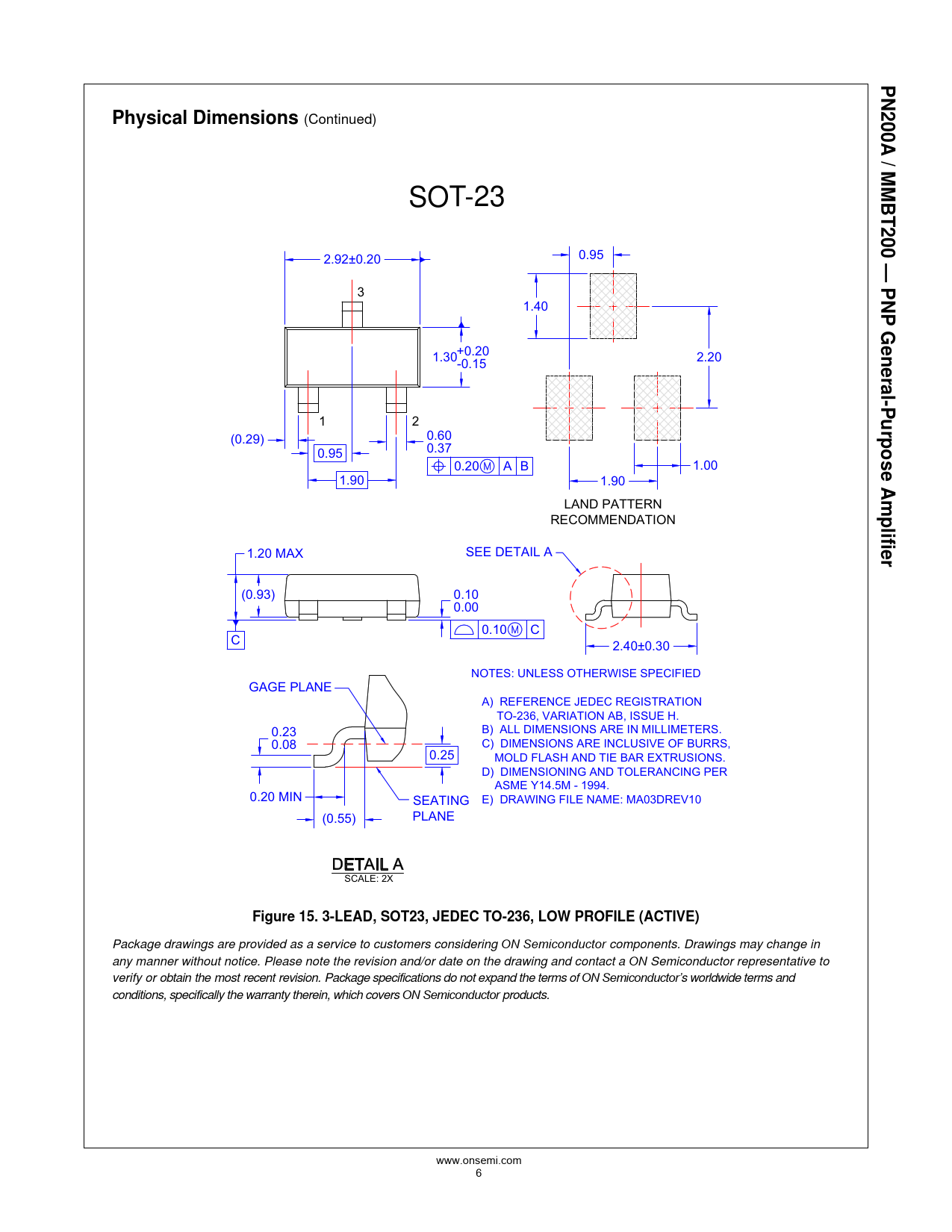

Figure 15. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE (ACTIVE)
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor’s worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. www.onsemi.com 6
