ZXM61N02F. 20V N-CHANNEL ENHANCEMENT MODE MOSFET. SUMMARY V(BR)DSS=20V; RDS(ON)=0.18. ID=1.7A. DESCRIPTION. SOT23. FEATURES
该数据表的模型线
文件文字版本

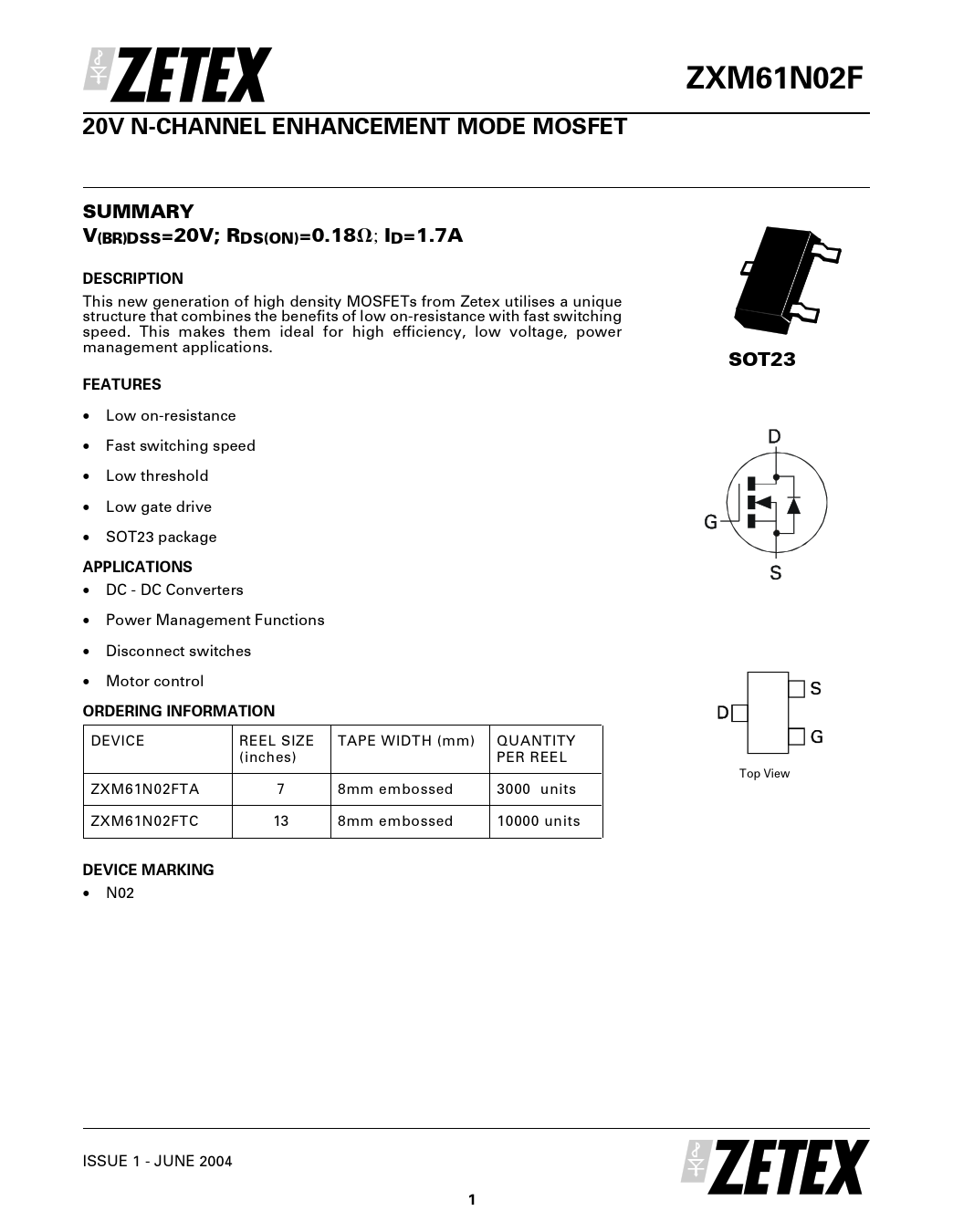

ZXM61N02F 20V N-CHANNEL ENHANCEMENT MODE MOSFET SUMMARY V(BR)DSS=20V; RDS(ON)=0.18
V;
ID=1.7A DESCRIPTION
This new generation of high density MOSFETs from Zetex utilises a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
SOT23 FEATURES
• Low on-resistance • Fast switching speed • Low threshold • Low gate drive • SOT23 package
APPLICATIONS
• DC - DC Converters • Power Management Functions • Disconnect switches • Motor control
ORDERING INFORMATION
DEVICE REEL SIZE TAPE WIDTH (mm) QUANTITY (inches) PER REEL Top View ZXM61N02FTA 7 8mm embossed 3000 units ZXM61N02FTC 13 8mm embossed 10000 units
DEVICE MARKING
• N02 ISSUE 1 - JUNE 2004
1
V;
ID=1.7A DESCRIPTION
This new generation of high density MOSFETs from Zetex utilises a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
SOT23 FEATURES
• Low on-resistance • Fast switching speed • Low threshold • Low gate drive • SOT23 package
APPLICATIONS
• DC - DC Converters • Power Management Functions • Disconnect switches • Motor control
ORDERING INFORMATION
DEVICE REEL SIZE TAPE WIDTH (mm) QUANTITY (inches) PER REEL Top View ZXM61N02FTA 7 8mm embossed 3000 units ZXM61N02FTC 13 8mm embossed 10000 units
DEVICE MARKING
• N02 ISSUE 1 - JUNE 2004
1
