Datasheet ZXM61N02F (Diodes) - 7
| 制造商 | Diodes |
| 描述 | N-Channel Enhancement Mode MOSFET |
| 页数 / 页 | 7 / 7 — ZXM61N02F. PACKAGE DIMENSIONS. PAD LAYOUT DETAILS. … |
| 文件格式/大小 | PDF / 217 Kb |
| 文件语言 | 英语 |

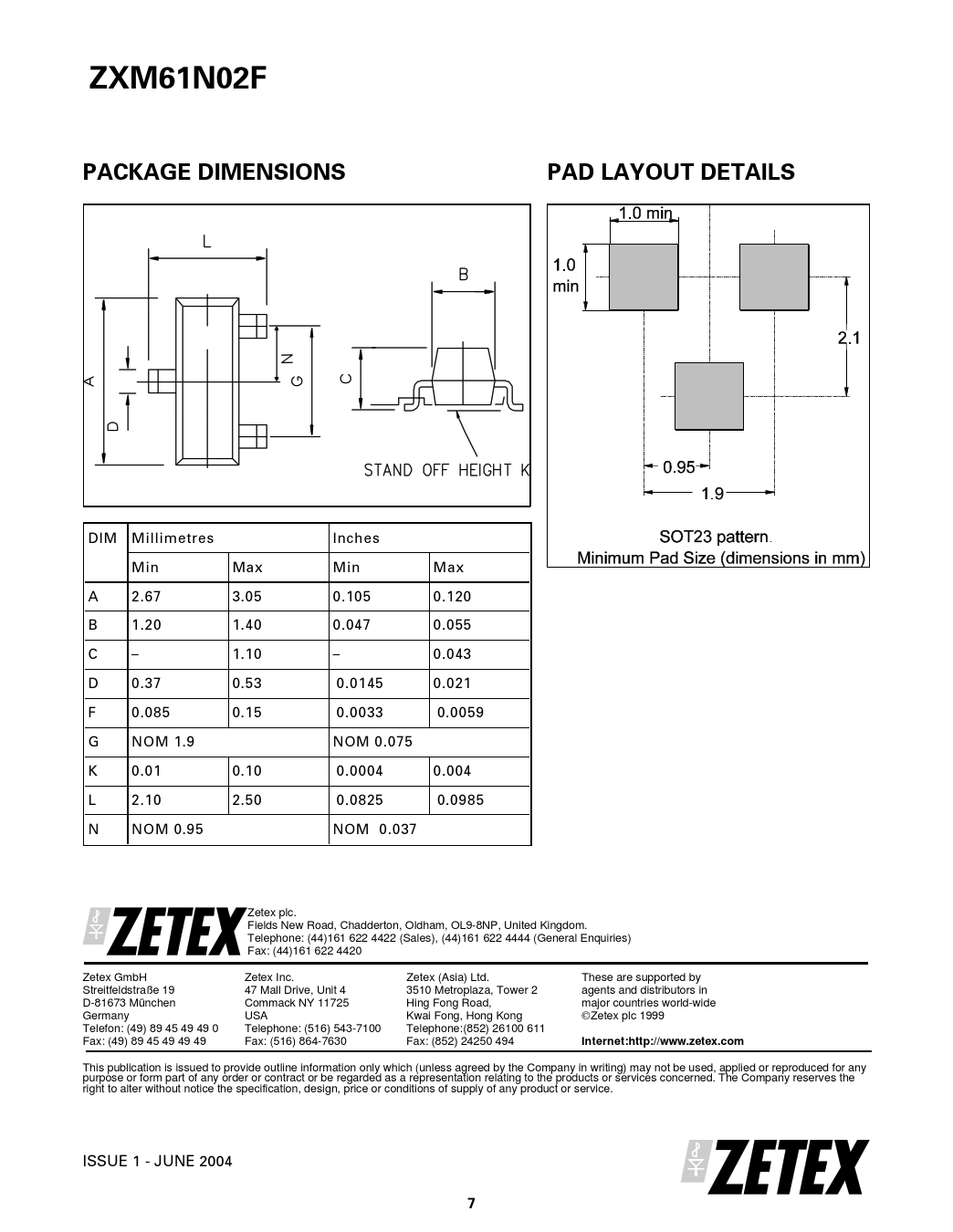

ZXM61N02F. PACKAGE DIMENSIONS. PAD LAYOUT DETAILS. Internet:http://www.zetex.com
该数据表的模型线
文件文字版本
ZXM61N02F PACKAGE DIMENSIONS PAD LAYOUT DETAILS
N DIM Millimetres Inches Min Max Min Max A 2.67 3.05 0.105 0.120 B 1.20 1.40 0.047 0.055 C – 1.10 – 0.043 D 0.37 0.53 0.0145 0.021 F 0.085 0.15 0.0033 0.0059 G NOM 1.9 NOM 0.075 K 0.01 0.10 0.0004 0.004 L 2.10 2.50 0.0825 0.0985 N NOM 0.95 NOM 0.037 Zetex plc. Fields New Road, Chadderton, Oldham, OL9-8NP, United Kingdom. Telephone: (44)161 622 4422 (Sales), (44)161 622 4444 (General Enquiries) Fax: (44)161 622 4420 Zetex GmbH Zetex Inc. Zetex (Asia) Ltd. These are supported by Streitfeldstraße 19 47 Mall Drive, Unit 4 3510 Metroplaza, Tower 2 agents and distributors in D-81673 München Commack NY 11725 Hing Fong Road, major countries world-wide Germany USA Kwai Fong, Hong Kong Zetex plc 1999 Telefon: (49) 89 45 49 49 0 Telephone: (516) 543-7100 Telephone:(852) 26100 611 Fax: (49) 89 45 49 49 49 Fax: (516) 864-7630 Fax: (852) 24250 494
