Datasheet IM828-XCC (Infineon) - 4
| 制造商 | Infineon |
| 描述 | CIPOS Maxi IM828. The CIPOS Maxi IM828 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. |
| 页数 / 页 | 23 / 4 — CIPOS™ Maxi IM828. IM828-XCC. Pin configuration. 2.1. Pin assignment. … |
| 修订版 | 02_00 |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
CIPOS™ Maxi IM828. IM828-XCC. Pin configuration. 2.1. Pin assignment. Figure 2. Module pinout. Table 2. Pin number. Pin name
该数据表的模型线
文件文字版本
CIPOS™ Maxi IM828 IM828-XCC Pin configuration 2 Pin configuration 2.1 Pin assignment

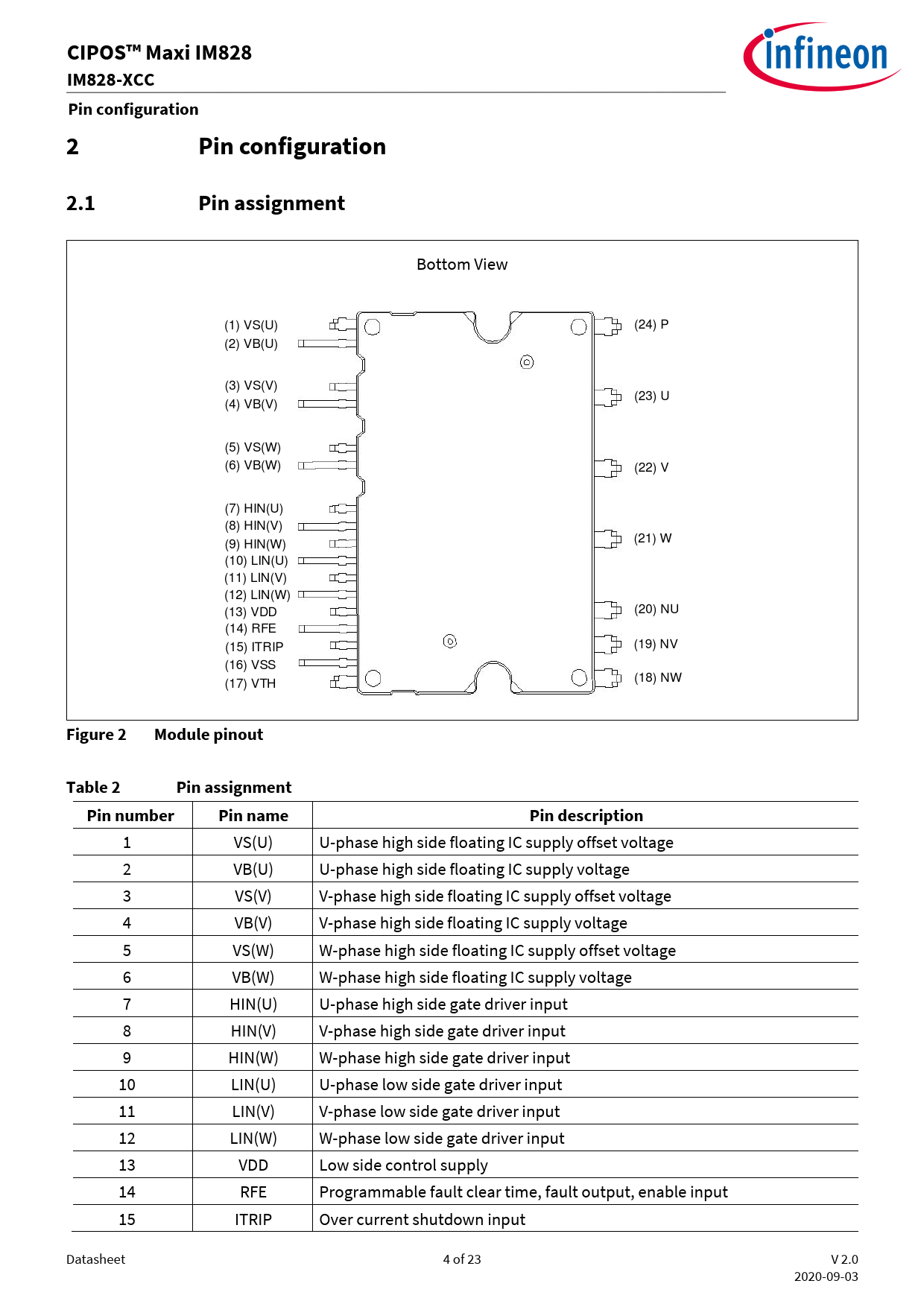

Bottom View (1) VS(U) (24) P (2) VB(U) (3) VS(V) (23) U (4) VB(V) (5) VS(W) (6) VB(W) (22) V (7) HIN(U) (8) HIN(V) (9) HIN(W) (21) W (10) LIN(U) (11) LIN(V) (12) LIN(W) (13) VDD (20) NU (14) RFE (15) ITRIP (19) NV (16) VSS (18) NW (17) VTH
Figure 2 Module pinout Table 2 Pin assignment Pin number Pin name Pin description
1 VS(U) U-phase high side floating IC supply offset voltage 2 VB(U) U-phase high side floating IC supply voltage 3 VS(V) V-phase high side floating IC supply offset voltage 4 VB(V) V-phase high side floating IC supply voltage 5 VS(W) W-phase high side floating IC supply offset voltage 6 VB(W) W-phase high side floating IC supply voltage 7 HIN(U) U-phase high side gate driver input 8 HIN(V) V-phase high side gate driver input 9 HIN(W) W-phase high side gate driver input 10 LIN(U) U-phase low side gate driver input 11 LIN(V) V-phase low side gate driver input 12 LIN(W) W-phase low side gate driver input 13 VDD Low side control supply 14 RFE Programmable fault clear time, fault output, enable input 15 ITRIP Over current shutdown input Datasheet 4 of 23 V 2.0 2020-09-03
