T2035H-8G

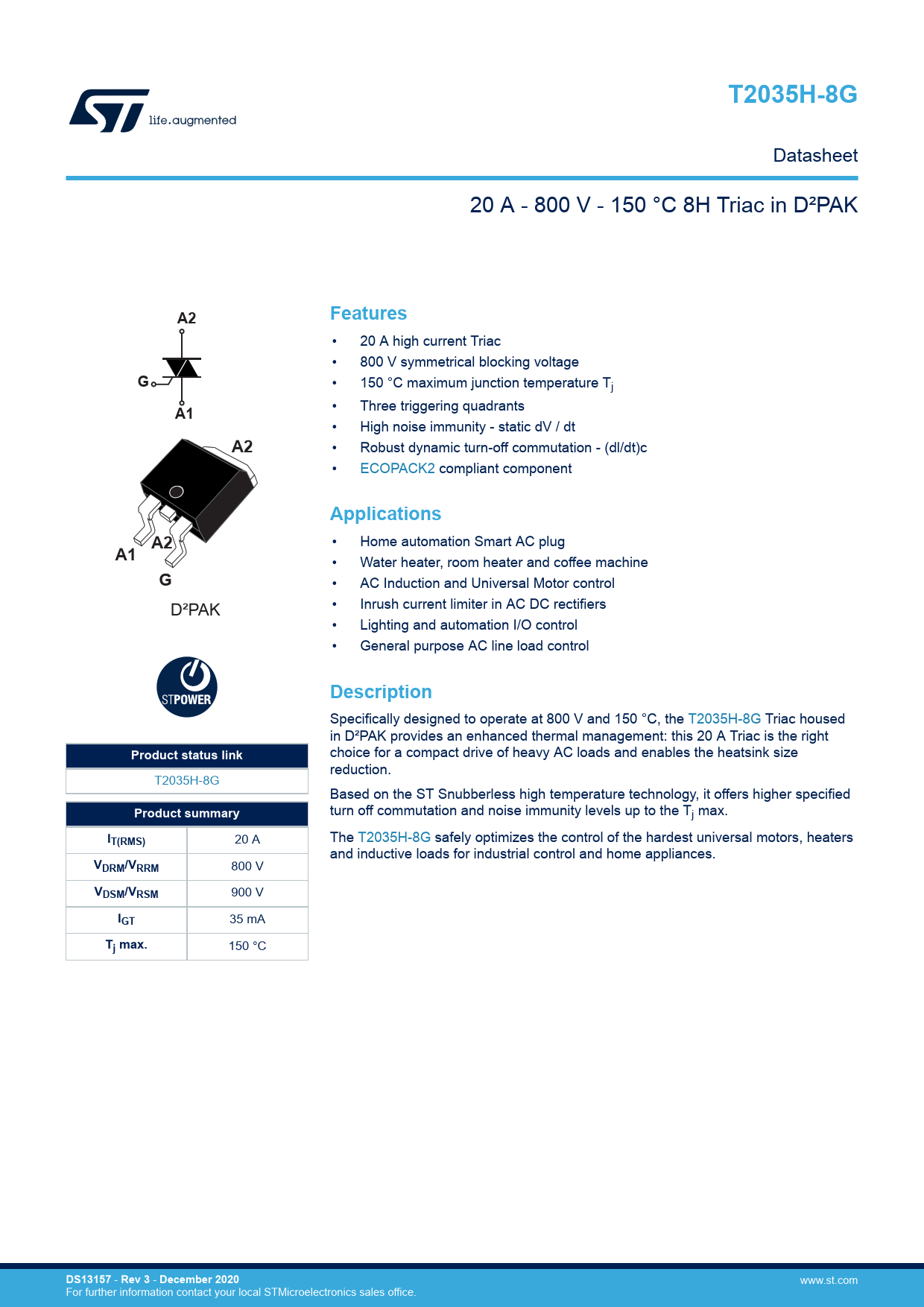

Datasheet 20 A - 800 V - 150 °C 8H Triac in D²PAK
A2 Features
• 20 A high current Triac • 800 V symmetrical blocking voltage
G
• 150 °C maximum junction temperature Tj
A1
• Three triggering quadrants • High noise immunity - static dV / dt
A2
• Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component
Applications A2
• Home automation Smart AC plug
A1
• Water heater, room heater and coffee machine
G
• AC Induction and Universal Motor control D²PAK • Inrush current limiter in AC DC rectifiers • Lighting and automation I/O control • General purpose AC line load control
Description
Specifically designed to operate at 800 V and 150 °C, the T2035H-8G Triac housed in D²PAK provides an enhanced thermal management: this 20 A Triac is the right
Product status link
choice for a compact drive of heavy AC loads and enables the heatsink size reduction. T2035H-8G Based on the ST Snubberless high temperature technology, it offers higher specified
Product summary
turn off commutation and noise immunity levels up to the Tj max.
I
The T2035H-8G safely optimizes the control of the hardest universal motors, heaters
T(RMS)
20 A and inductive loads for industrial control and home appliances.
VDRM/VRRM
800 V
VDSM/VRSM
900 V
IGT
35 mA
Tj max.
150 °C
DS13157
-
Rev 3
-
December 2020
