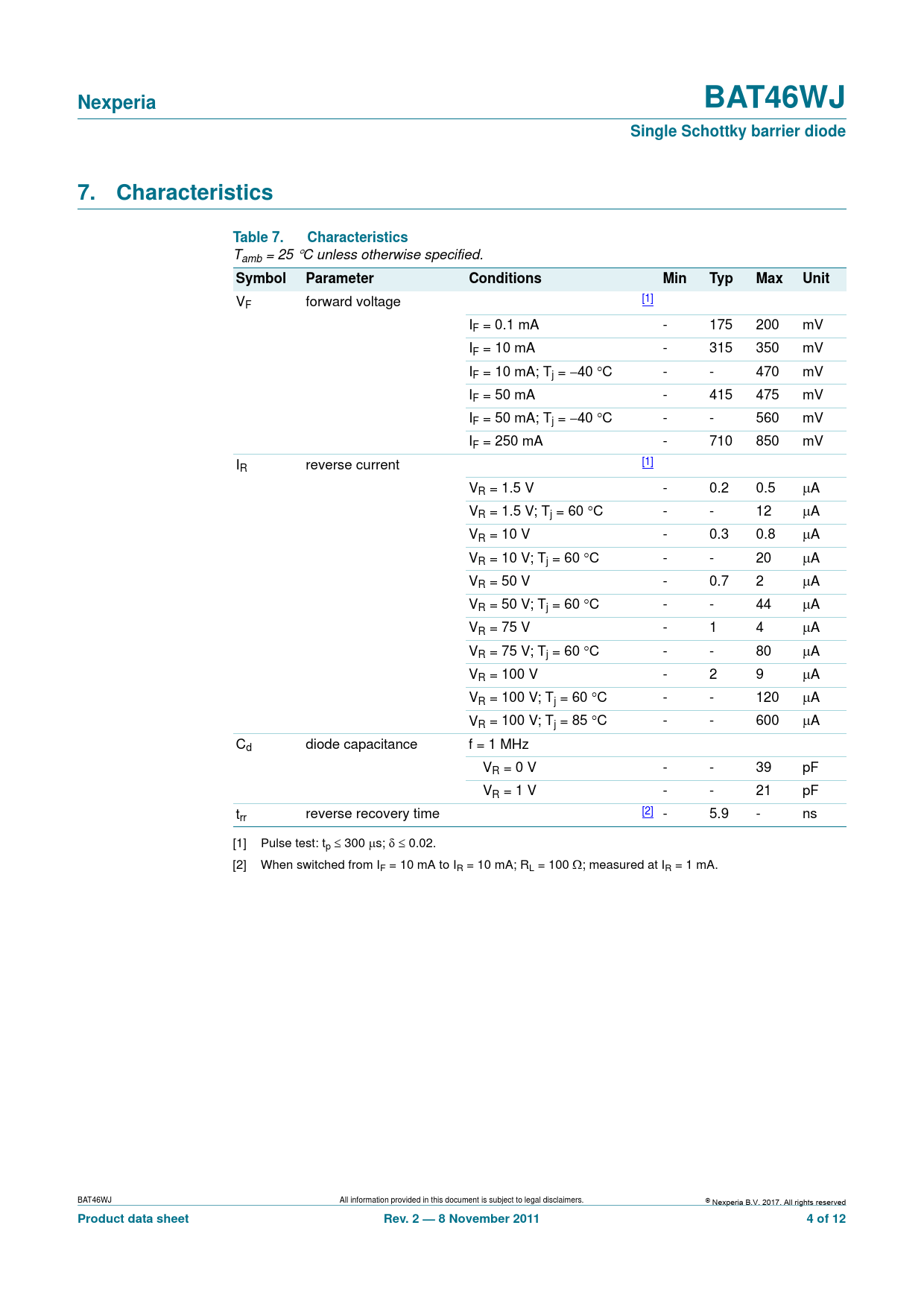

Nexperia BAT46WJ Single Schottky barrier diode 7. Characteristics Table 7. Characteristics
Tamb = 25 C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage [1] IF = 0.1 mA - 175 200 mV IF = 10 mA - 315 350 mV IF = 10 mA; Tj = 40 C - - 470 mV IF = 50 mA - 415 475 mV IF = 50 mA; Tj = 40 C - - 560 mV IF = 250 mA - 710 850 mV IR reverse current [1] VR = 1.5 V - 0.2 0.5 A VR = 1.5 V; Tj = 60 C - - 12 A VR = 10 V - 0.3 0.8 A VR = 10 V; Tj = 60 C - - 20 A VR = 50 V - 0.7 2 A VR = 50 V; Tj = 60 C - - 44 A VR = 75 V - 1 4 A VR = 75 V; Tj = 60 C - - 80 A VR = 100 V - 2 9 A VR = 100 V; Tj = 60 C - - 120 A VR = 100 V; Tj = 85 C - - 600 A Cd diode capacitance f = 1 MHz VR = 0 V - - 39 pF VR = 1 V - - 21 pF trr reverse recovery time [2] - 5.9 - ns [1] Pulse test: t  p 300 s;   0.02. [2] When switched from IF = 10 mA to IR = 10 mA; RL = 100 ; measured at IR = 1 mA. BAT46WJ All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 8 November 2011 4 of 12
