Datasheet BAT46WJ (Nexperia)
| 制造商 | Nexperia |
| 描述 | Schottky barrier diode |
| 页数 / 页 | 12 / 1 — BAT46WJ Single Schottky barrier diode. Rev. 2 — 8 November 2011. Product … |
| 修订版 | 02062017 |
| 文件格式/大小 | PDF / 909 Kb |
| 文件语言 | 英语 |
BAT46WJ Single Schottky barrier diode. Rev. 2 — 8 November 2011. Product data sheet. 1. Product. profile. 1.1 General description
该数据表的模型线
文件文字版本
link to page 1 link to page 1 link to page 1

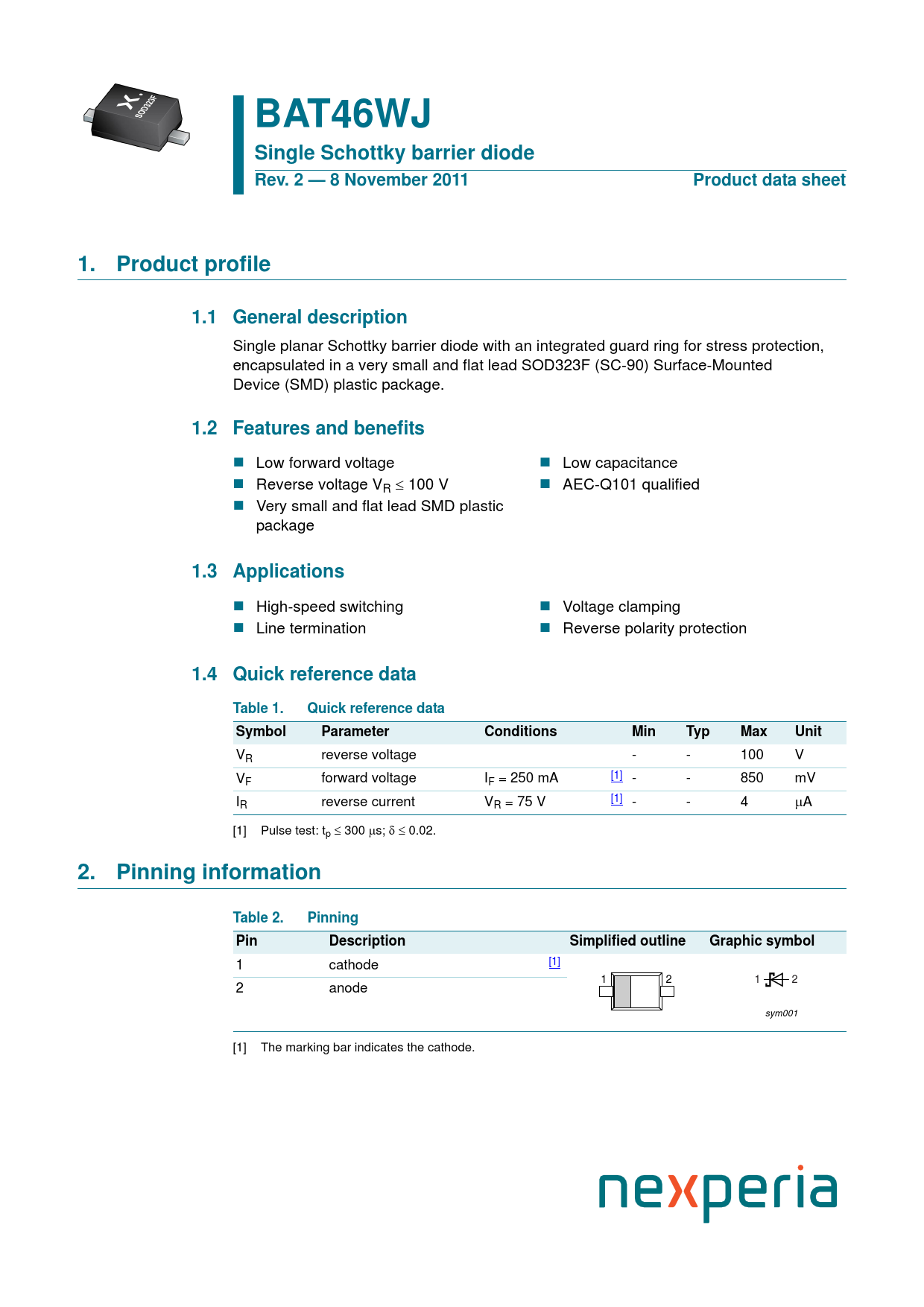

BAT46WJ Single Schottky barrier diode Rev. 2 — 8 November 2011 Product data sheet 1. Product profile 1.1 General description
Single planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.
1.2 Features and benefits
Low forward voltage Low capacitance Reverse voltage V R 100 V AEC-Q101 qualified Very small and flat lead SMD plastic package
1.3 Applications
High-speed switching Voltage clamping Line termination Reverse polarity protection
1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VR reverse voltage - - 100 V VF forward voltage IF = 250 mA [1] - - 850 mV IR reverse current VR = 75 V [1] - - 4 A [1] Pulse test: t p 300 s; 0.02.
2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol
1 cathode [1] 1 2 1 2 2 anode sym001 [1] The marking bar indicates the cathode. Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
