Nexperia. BAT46WJ. Single Schottky barrier diode. 3. Ordering. information. Table 3. Ordering information. Type number. Package. Name
该数据表的模型线
文件文字版本
link to page 2 link to page 2 link to page 2 link to page 2 link to page 2 link to page 3 link to page 3 link to page 3 link to page 3

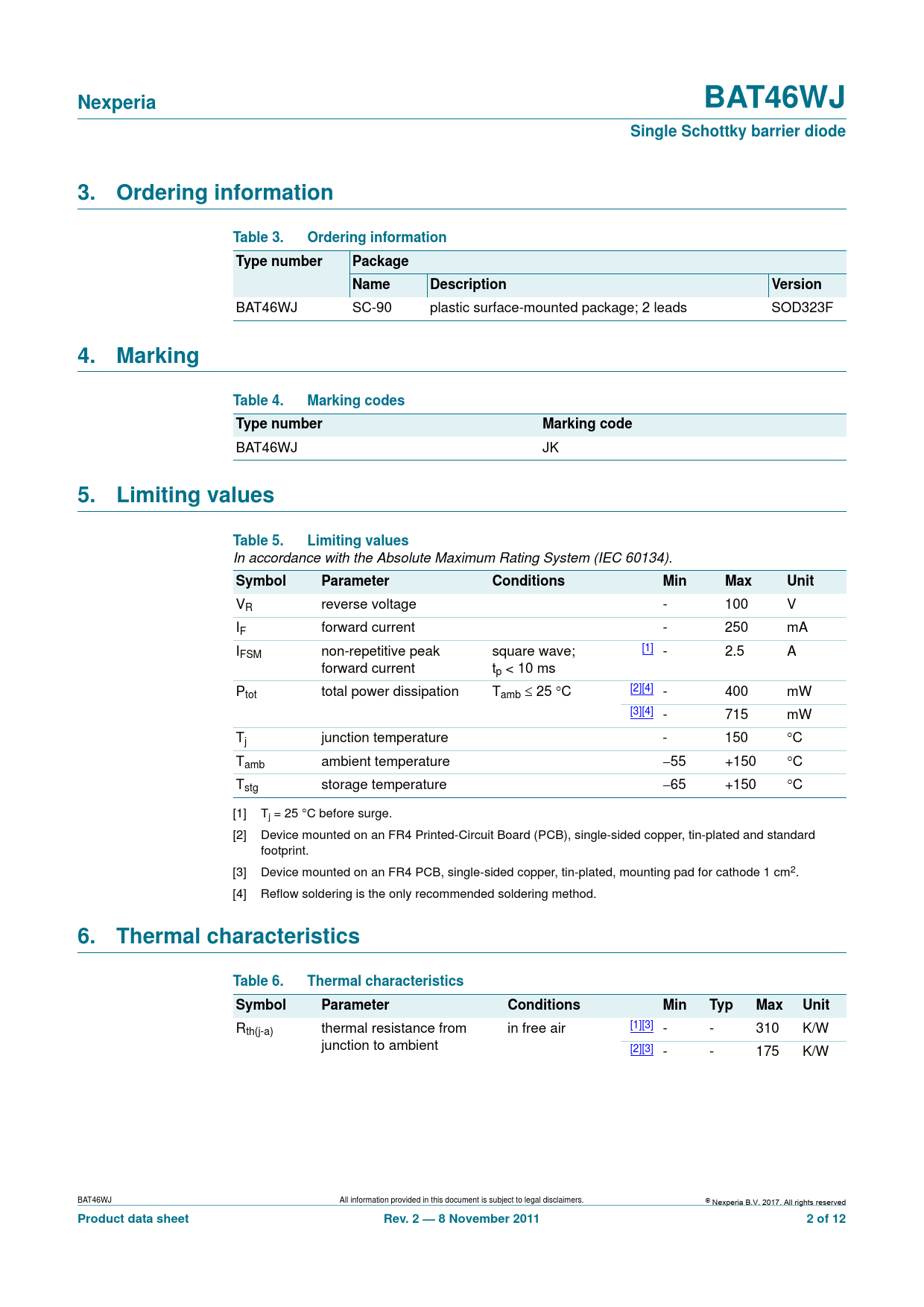

Nexperia BAT46WJ Single Schottky barrier diode 3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BAT46WJ SC-90 plastic surface-mounted package; 2 leads SOD323F
4. Marking Table 4. Marking codes Type number Marking code
BAT46WJ JK
5. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VR reverse voltage - 100 V IF forward current - 250 mA I [1] FSM non-repetitive peak square wave; - 2.5 A forward current tp < 10 ms P tot total power dissipation Tamb 25 C [2][4] - 400 mW [3][4] - 715 mW Tj junction temperature - 150 C Tamb ambient temperature 55 +150 C Tstg storage temperature 65 +150 C [1] Tj = 25 C before surge. [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. [4] Reflow soldering is the only recommended soldering method.
6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from in free air [1][3] - - 310 K/W junction to ambient [2][3] - - 175 K/W BAT46WJ All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 8 November 2011 2 of 12
