Datasheet BAT46WJ (Nexperia) - 6
| 制造商 | Nexperia |
| 描述 | Schottky barrier diode |
| 页数 / 页 | 12 / 6 — Nexperia. BAT46WJ. Single Schottky barrier diode. Fig 6. Average reverse … |
| 修订版 | 02062017 |
| 文件格式/大小 | PDF / 909 Kb |
| 文件语言 | 英语 |
Nexperia. BAT46WJ. Single Schottky barrier diode. Fig 6. Average reverse power dissipation as a. Fig 7
该数据表的模型线
文件文字版本
Nexperia BAT46WJ Single Schottky barrier diode
006aac390 006aac391 0.25 0.3 PR(AV) (W) I (1) F(AV) 0.20 (A) 0.2 (2) 0.15 (1) (2) 0.10 (3) (3) 0.1 (4) 0.05 (4) 0.0 0.0 0 20 40 60 80 100 0 25 50 75 100 125 150 175 VR (V) Tamb (°C) Tj = 125 C FR4 PCB, standard footprint (1) = 1 Tj = 150 C (2) = 0.9 (1) = 1; DC (3) = 0.8 (2) = 0.5; f = 20 kHz (4) = 0.5 (3) = 0.2; f = 20 kHz (4) = 0.1; f = 20 kHz

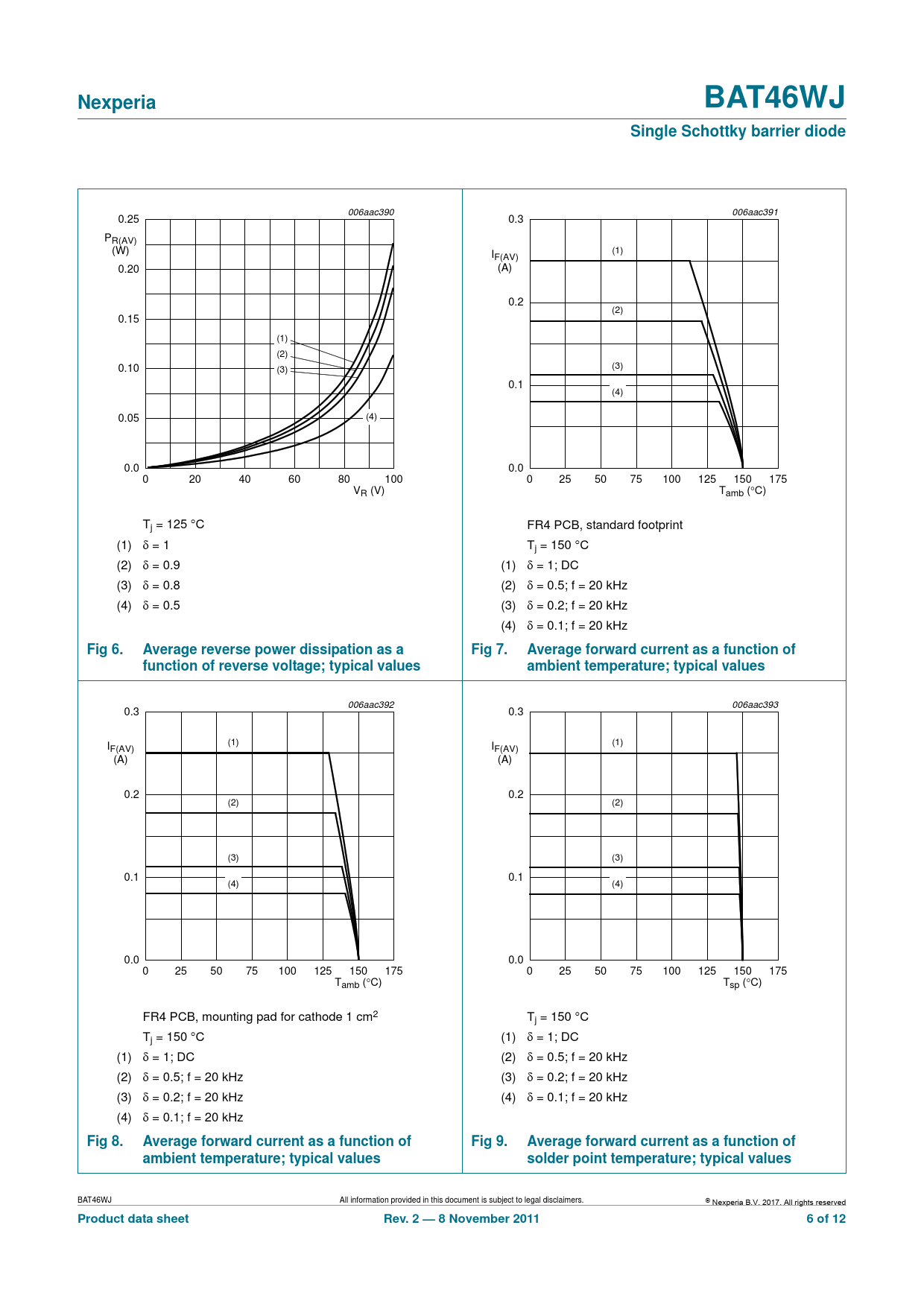

Fig 6. Average reverse power dissipation as a Fig 7. Average forward current as a function of function of reverse voltage; typical values ambient temperature; typical values
006aac392 006aac393 0.3 0.3 I (1) (1) F(AV) IF(AV) (A) (A) 0.2 0.2 (2) (2) (3) (3) 0.1 0.1 (4) (4) 0.0 0.0 0 25 50 75 100 125 150 175 0 25 50 75 100 125 150 175 Tamb (°C) Tsp (°C) FR4 PCB, mounting pad for cathode 1 cm2 Tj = 150 C Tj = 150 C (1) = 1; DC (1) = 1; DC (2) = 0.5; f = 20 kHz (2) = 0.5; f = 20 kHz (3) = 0.2; f = 20 kHz (3) = 0.2; f = 20 kHz (4) = 0.1; f = 20 kHz (4) = 0.1; f = 20 kHz
Fig 8. Average forward current as a function of Fig 9. Average forward current as a function of ambient temperature; typical values solder point temperature; typical values
BAT46WJ All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 8 November 2011 6 of 12
