VEMD8081. TAPE AND REEL DIMENSIONS
该数据表的模型线
文件文字版本
VEMD8081
www.vishay.com Vishay Semiconductors

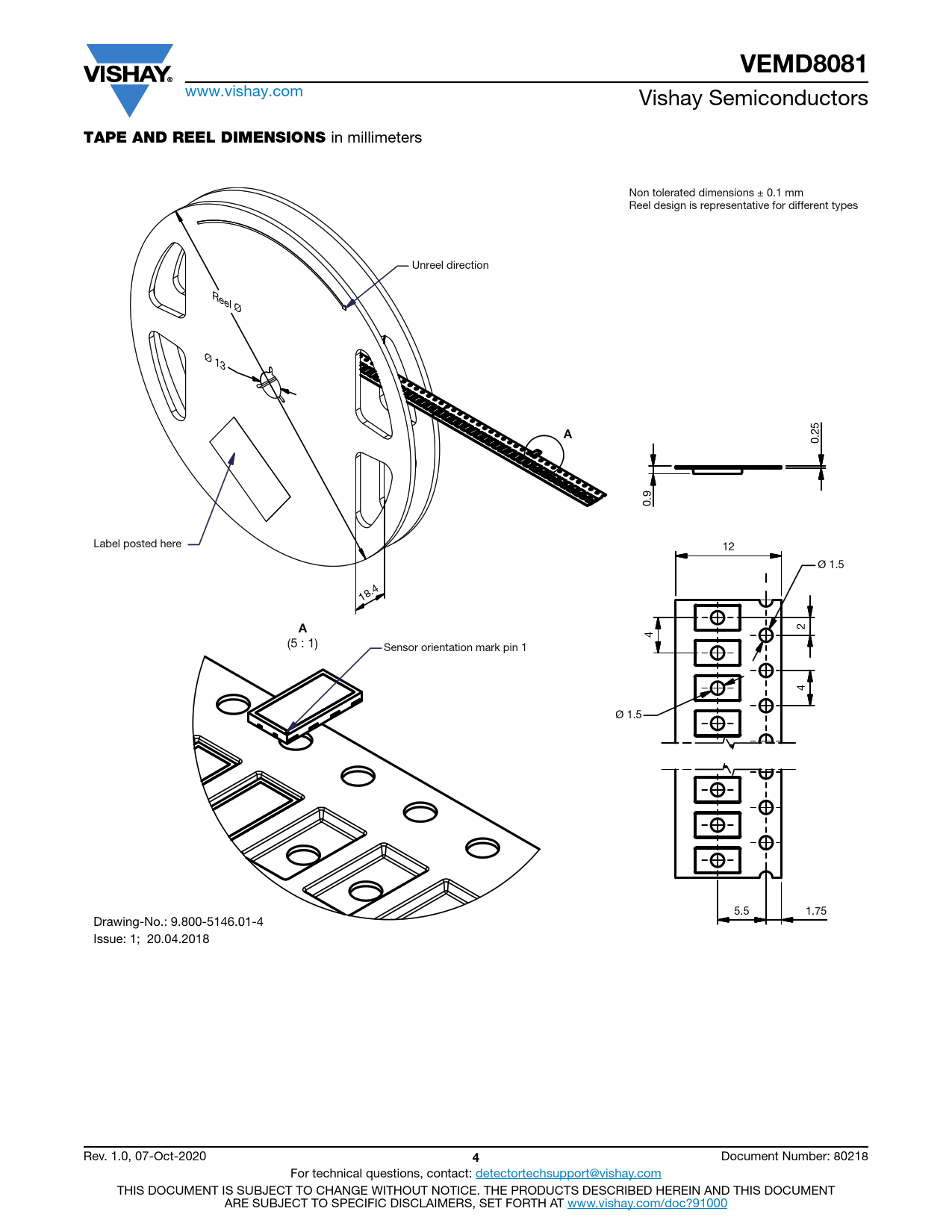

TAPE AND REEL DIMENSIONS
in millimeters Non tolerated dimensions ± 0.1 mm Reel design is representative for different types Unreel direction Reel Ø Ø 13
A
0.25 0.9 Label posted here 12 Ø 1.5 18.4 2
A
4 (5 : 1) Sensor orientation mark pin 1 4 Ø 1.5 5.5 1.75 Drawing-No.: 9.800-5146.01-4 Issue: 1; 20.04.2018 Rev. 1.0, 07-Oct-2020
4
Document Number: 80218 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
TAPE AND REEL DIMENSIONS
in millimeters Non tolerated dimensions ± 0.1 mm Reel design is representative for different types Unreel direction Reel Ø Ø 13
A
0.25 0.9 Label posted here 12 Ø 1.5 18.4 2
A
4 (5 : 1) Sensor orientation mark pin 1 4 Ø 1.5 5.5 1.75 Drawing-No.: 9.800-5146.01-4 Issue: 1; 20.04.2018 Rev. 1.0, 07-Oct-2020
4
Document Number: 80218 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
