Datasheet BUK7V4R2-40H (Nexperia) - 6
| 制造商 | Nexperia |
| 描述 | Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) |
| 页数 / 页 | 13 / 6 — Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level … |
| 修订版 | 11022021 |
| 文件格式/大小 | PDF / 313 Kb |
| 文件语言 | 英语 |
Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration). Symbol
该数据表的模型线
文件文字版本
link to page 8 link to page 9

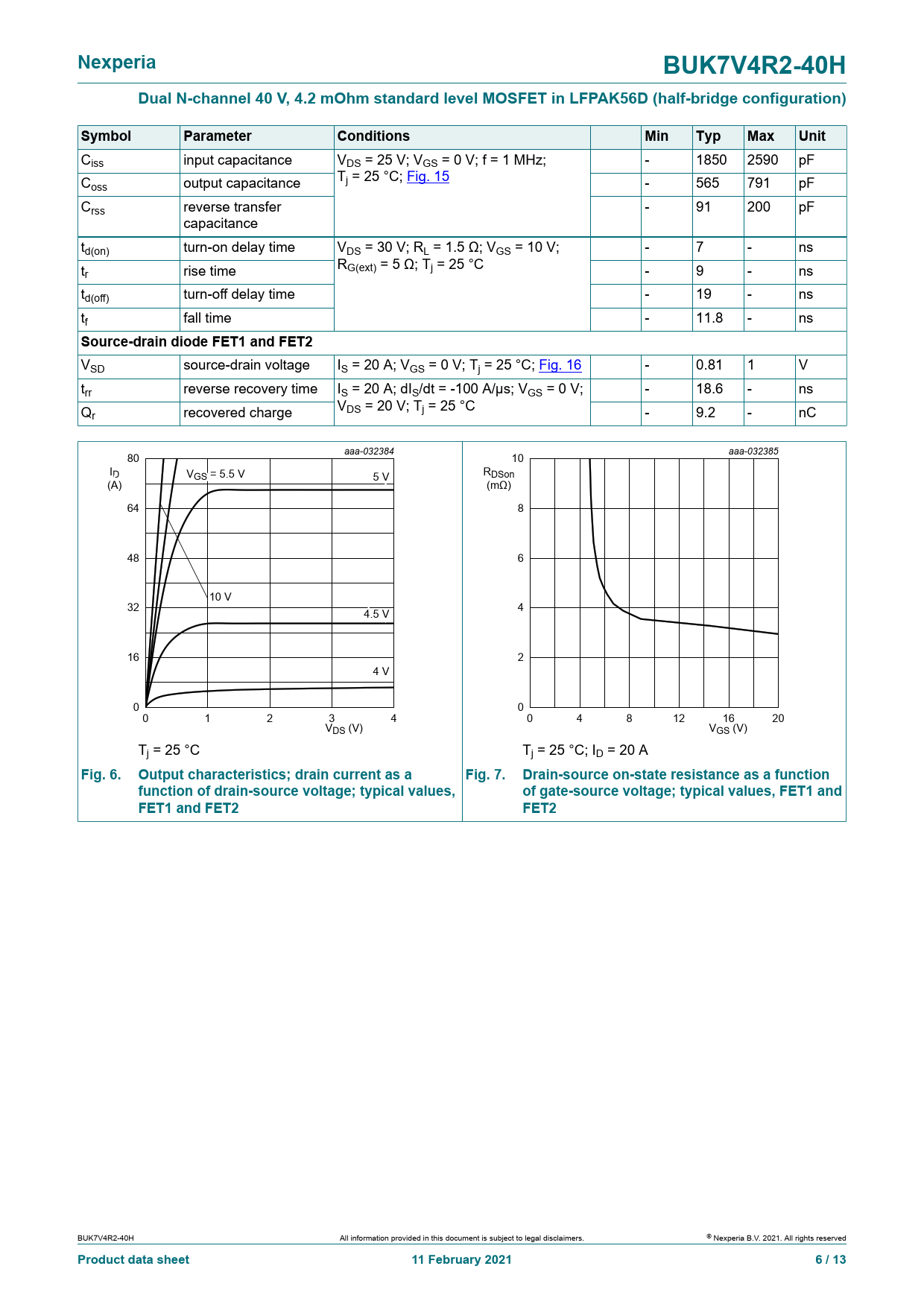

Nexperia BUK7V4R2-40H Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit
Ciss input capacitance VDS = 25 V; VGS = 0 V; f = 1 MHz; - 1850 2590 pF C T oss output capacitance j = 25 °C; Fig. 15 - 565 791 pF Crss reverse transfer - 91 200 pF capacitance td(on) turn-on delay time VDS = 30 V; RL = 1.5 Ω; VGS = 10 V; - 7 - ns t R r rise time G(ext) = 5 Ω; Tj = 25 °C - 9 - ns td(of ) turn-of delay time - 19 - ns tf fall time - 11.8 - ns
Source-drain diode FET1 and FET2
VSD source-drain voltage IS = 20 A; VGS = 0 V; Tj = 25 °C; Fig. 16 - 0.81 1 V trr reverse recovery time IS = 20 A; dIS/dt = -100 A/µs; VGS = 0 V; - 18.6 - ns Q V r recovered charge DS = 20 V; Tj = 25 °C - 9.2 - nC aaa-032384 80 aaa-032385 10 ID VGS S = = 5. 5 5 5 V 5 5 V RD R S D o S n o (A) A (m ( Ω m ) 64 8 48 6 10 1 0 V 32 4. 4 5 . 5 V 4 16 2 4 4 V 0 0 0 1 2 3 4 0 4 8 12 16 20 VDS (V) VGS (V) Tj = 25 °C Tj = 25 °C; ID = 20 A
Fig. 6. Output characteristics; drain current as a Fig. 7. Drain-source on-state resistance as a function function of drain-source voltage; typical values, of gate-source voltage; typical values, FET1 and FET1 and FET2 FET2
BUK7V4R2-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 11 February 2021 6 / 13
