Datasheet BUK7V4R2-40H (Nexperia) - 10
| 制造商 | Nexperia |
| 描述 | Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) |
| 页数 / 页 | 13 / 10 — Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level … |
| 修订版 | 11022021 |
| 文件格式/大小 | PDF / 313 Kb |
| 文件语言 | 英语 |
Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration)
该数据表的模型线
文件文字版本

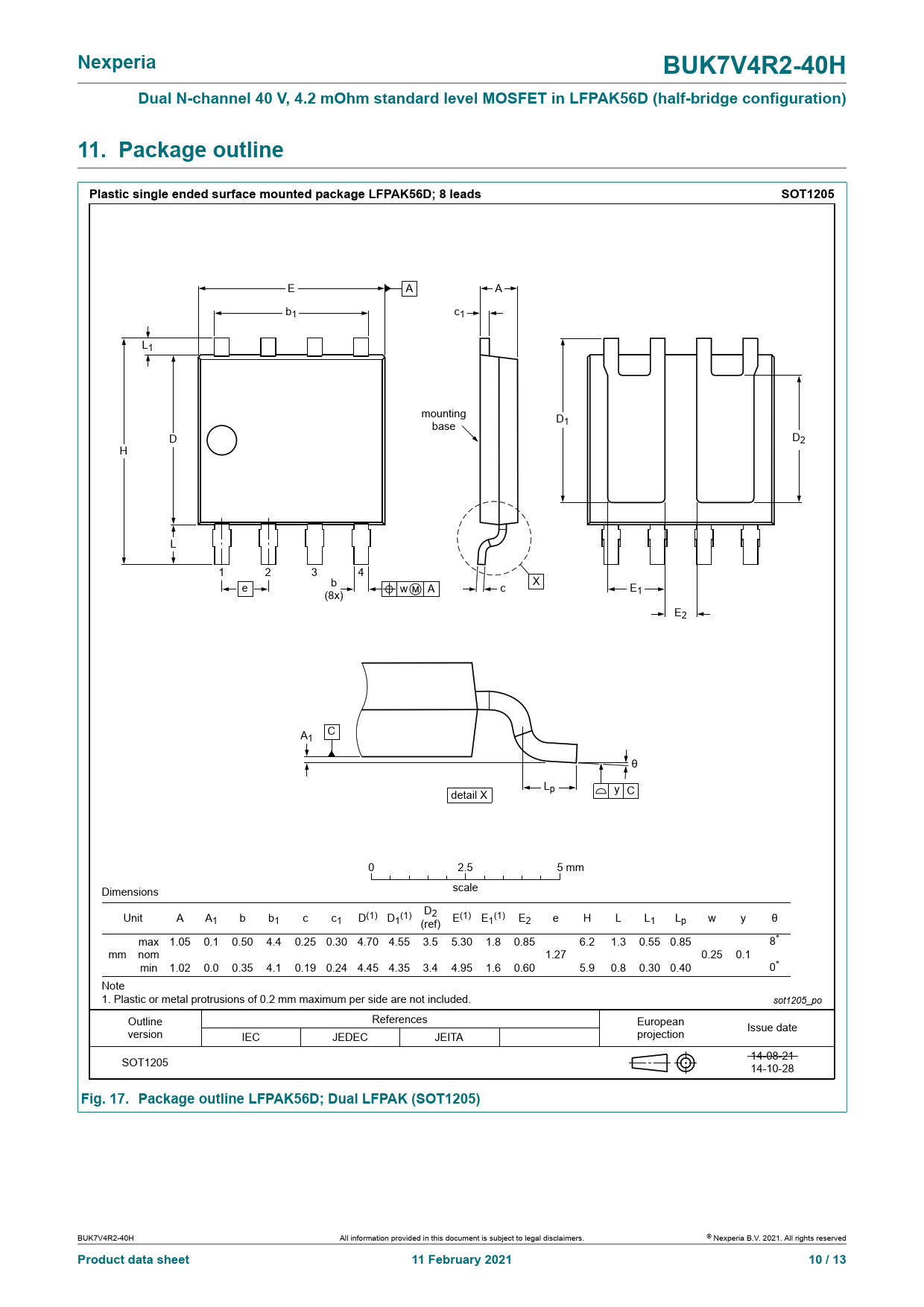

Nexperia BUK7V4R2-40H Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) 11. Package outline Plastic single ended surface mounted package LFPAK56D; 8 leads SOT1205
E A A b1 c1 L1 mounting D1 base D D2 H L 1 2 3 4 e b c X E1 (8x) w A E2 A C 1 θ L detail X p y C 0 2.5 5 mm Dimensions scale Unit A A D2 1 b b1 c c1 D(1) D1(1) E2 e H L L1 Lp w y θ (ref) E(1) E1(1) max 1.05 0.1 0.50 4.4 0.25 0.30 4.70 4.55 3.5 5.30 1.8 0.85 6.2 1.3 0.55 0.85 8° mm nom 1.27 0.25 0.1 min 1.02 0.0 0.35 4.1 0.19 0.24 4.45 4.35 3.4 4.95 1.6 0.60 5.9 0.8 0.30 0.40 0° Note 1. Plastic or metal protrusions of 0.2 mm maximum per side are not included. sot1205_po Outline References European version projection Issue date IEC JEDEC JEITA SOT1205 14-08-21 14-10-28
Fig. 17. Package outline LFPAK56D; Dual LFPAK (SOT1205)
