Datasheet BUK7V4R2-40H (Nexperia) - 2
| 制造商 | Nexperia |
| 描述 | Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) |
| 页数 / 页 | 13 / 2 — Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level … |
| 修订版 | 11022021 |
| 文件格式/大小 | PDF / 313 Kb |
| 文件语言 | 英语 |
Nexperia. BUK7V4R2-40H. Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration). Symbol
该数据表的模型线
文件文字版本
link to page 7 link to page 8 link to page 8

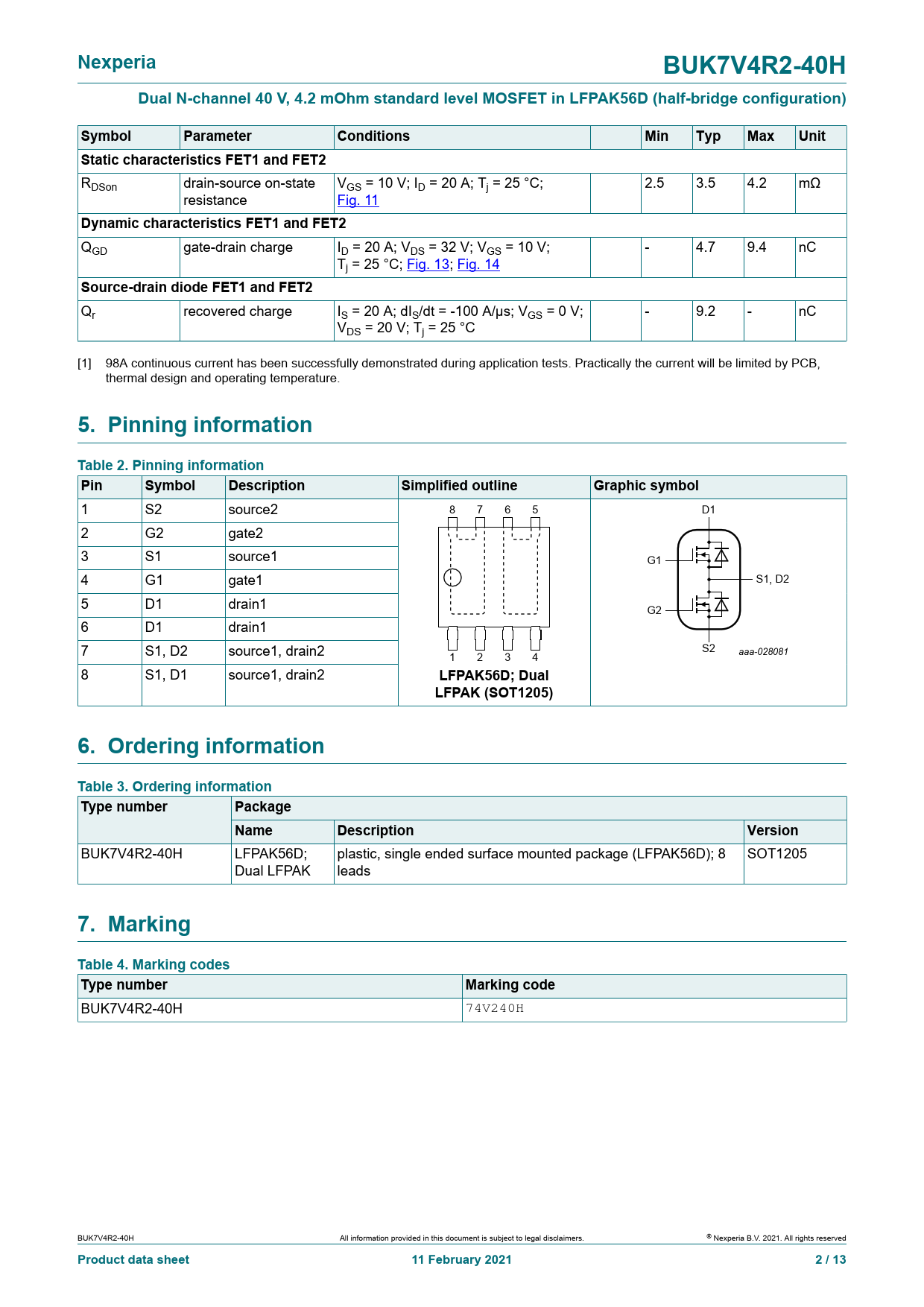

Nexperia BUK7V4R2-40H Dual N-channel 40 V, 4.2 mOhm standard level MOSFET in LFPAK56D (half-bridge configuration) Symbol Parameter Conditions Min Typ Max Unit Static characteristics FET1 and FET2
RDSon drain-source on-state VGS = 10 V; ID = 20 A; Tj = 25 °C; 2.5 3.5 4.2 mΩ resistance Fig. 11
Dynamic characteristics FET1 and FET2
QGD gate-drain charge ID = 20 A; VDS = 32 V; VGS = 10 V; - 4.7 9.4 nC Tj = 25 °C; Fig. 13; Fig. 14
Source-drain diode FET1 and FET2
Qr recovered charge IS = 20 A; dIS/dt = -100 A/µs; VGS = 0 V; - 9.2 - nC VDS = 20 V; Tj = 25 °C [1] 98A continuous current has been successfully demonstrated during application tests. Practically the current will be limited by PCB, thermal design and operating temperature.
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 S2 source2 8 7 6 5 D1 2 G2 gate2 3 S1 source1 G1 4 G1 gate1 S1, D2 5 D1 drain1 G2 6 D1 drain1 7 S1, D2 source1, drain2 S2 1 2 3 4 aaa-028081 8 S1, D1 source1, drain2
LFPAK56D; Dual LFPAK (SOT1205) 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BUK7V4R2-40H LFPAK56D; plastic, single ended surface mounted package (LFPAK56D); 8 SOT1205 Dual LFPAK leads
7. Marking Table 4. Marking codes Type number Marking code
BUK7V4R2-40H 74V240H BUK7V4R2-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 11 February 2021 2 / 13
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Legal information Contents
