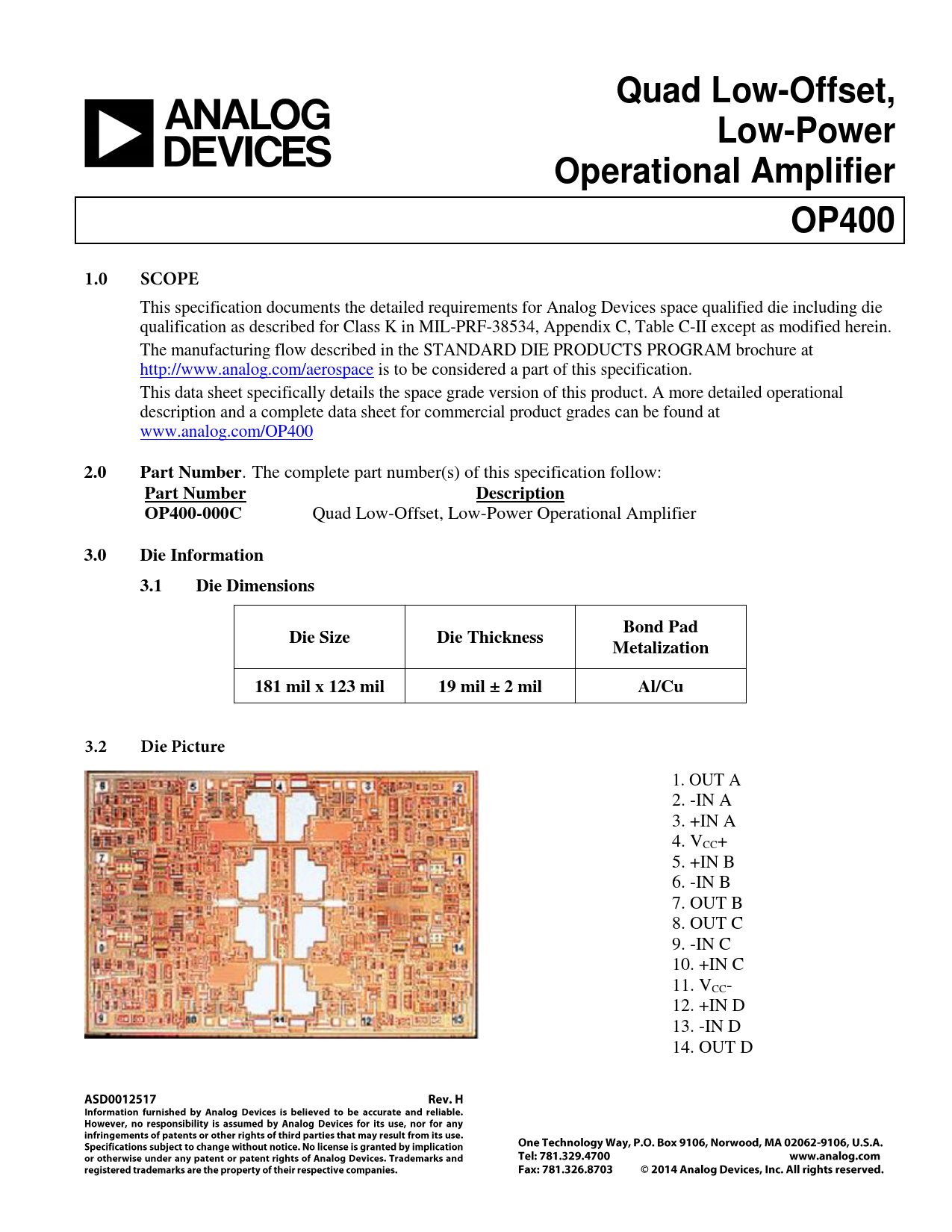

Quad Low-Offset, Low-Power Operational Amplifier OP400
This specification documents the detailed requirements for Analog Devices space qualified die including die qualification as described for Class K in MIL-PRF-38534, Appendix C, Table C-II except as modified herein. The manufacturing flow described in the STANDARD DIE PRODUCTS PROGRAM brochure at http://www.analog.com/aerospace is to be considered a part of this specification. This data sheet specifically details the space grade version of this product. A more detailed operational description and a complete data sheet for commercial product grades can be found at www.analog.com/OP400
2.0 Part Number
. The complete part number(s) of this specification follow:
Part Number Description OP400-000C
Quad Low-Offset, Low-Power Operational Amplifier
3.0 Die Information 3.1 Die Dimensions Bond Pad Die Size Die Thickness Metalization 181 mil x 123 mil 19 mil ± 2 mil Al/Cu
1. OUT A 2. -IN A 3. +IN A 4. VCC+ 5. +IN B 6. -IN B 7. OUT B 8. OUT C 9. -IN C 10. +IN C 11. VCC- 12. +IN D 13. -IN D 14. OUT D
