Datasheet HMC-ALH102 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER, 2 - 20 GHz |
| 页数 / 页 | 6 / 5 — HMC-ALH102. GaAs HEMT MMIC WIDEBAND. LOW NOISE AMPLIFIER, 2 - 20 GHz. … |
| 文件格式/大小 | PDF / 464 Kb |
| 文件语言 | 英语 |
HMC-ALH102. GaAs HEMT MMIC WIDEBAND. LOW NOISE AMPLIFIER, 2 - 20 GHz. Assembly Diagram
该数据表的模型线
文件文字版本
HMC-ALH102
v03.0118

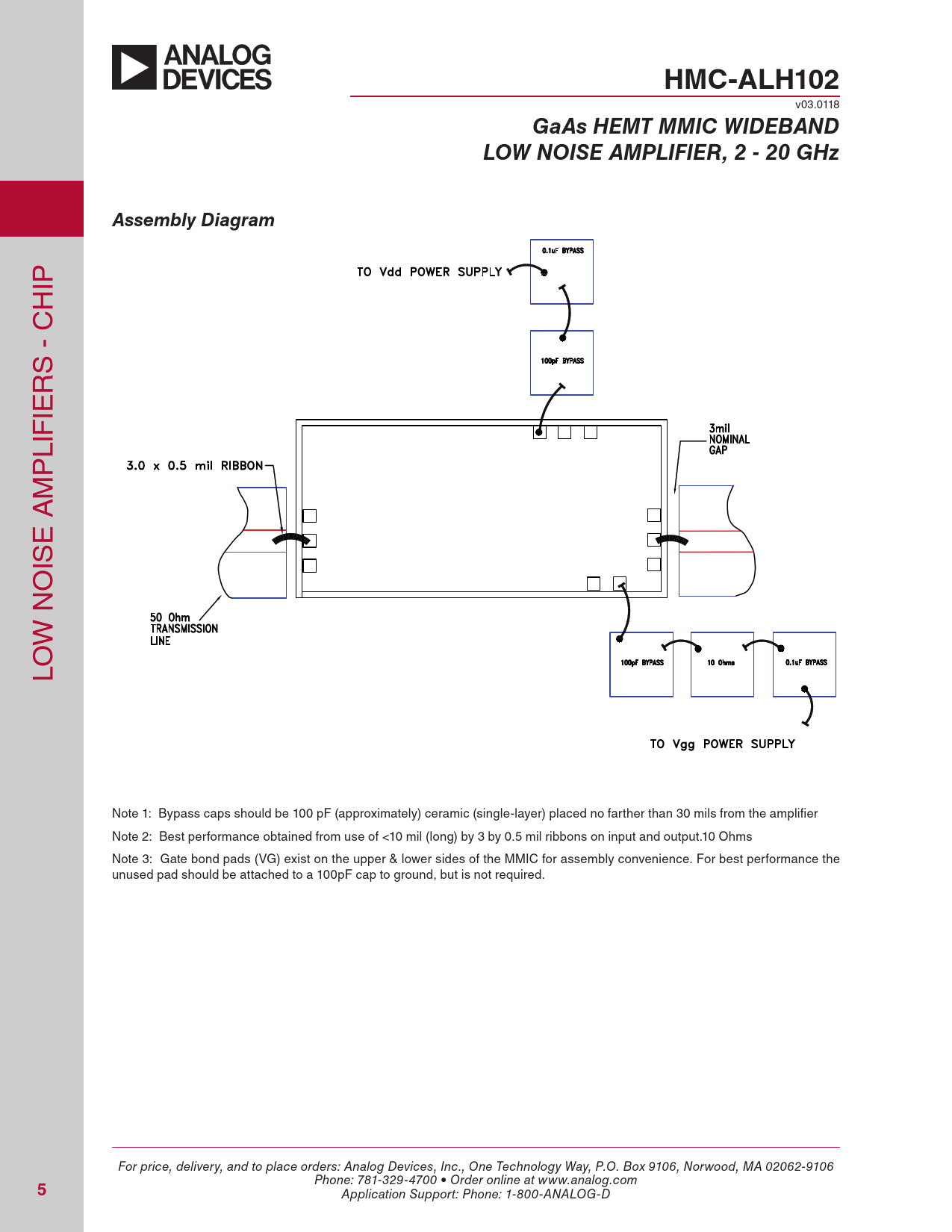

GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER, 2 - 20 GHz Assembly Diagram
IP H C - S R IE LIF P M A E IS O N W LO Note 1: Bypass caps should be 100 pF (approximately) ceramic (single-layer) placed no farther than 30 mils from the amplifier Note 2: Best performance obtained from use of <10 mil (long) by 3 by 0.5 mil ribbons on input and output.10 Ohms Note 3: Gate bond pads (VG) exist on the upper & lower sides of the MMIC for assembly convenience. For best performance the unused pad should be attached to a 100pF cap to ground, but is not required. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
v03.0118
GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER, 2 - 20 GHz Assembly Diagram
IP H C - S R IE LIF P M A E IS O N W LO Note 1: Bypass caps should be 100 pF (approximately) ceramic (single-layer) placed no farther than 30 mils from the amplifier Note 2: Best performance obtained from use of <10 mil (long) by 3 by 0.5 mil ribbons on input and output.10 Ohms Note 3: Gate bond pads (VG) exist on the upper & lower sides of the MMIC for assembly convenience. For best performance the unused pad should be attached to a 100pF cap to ground, but is not required. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
