Datasheet HMC606LC5 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | GaAs, InGaP, HBT, MMIC, Ultralow Phase Noise, Distributed Amplifier, 2 GHz to 18 GHz |
| 页数 / 页 | 9 / 3 — Data Sheet. HMC606LC5. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| 修订版 | J |
| 文件格式/大小 | PDF / 204 Kb |
| 文件语言 | 英语 |
Data Sheet. HMC606LC5. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. Unit. Table 2. Parameter
该数据表的模型线
文件文字版本

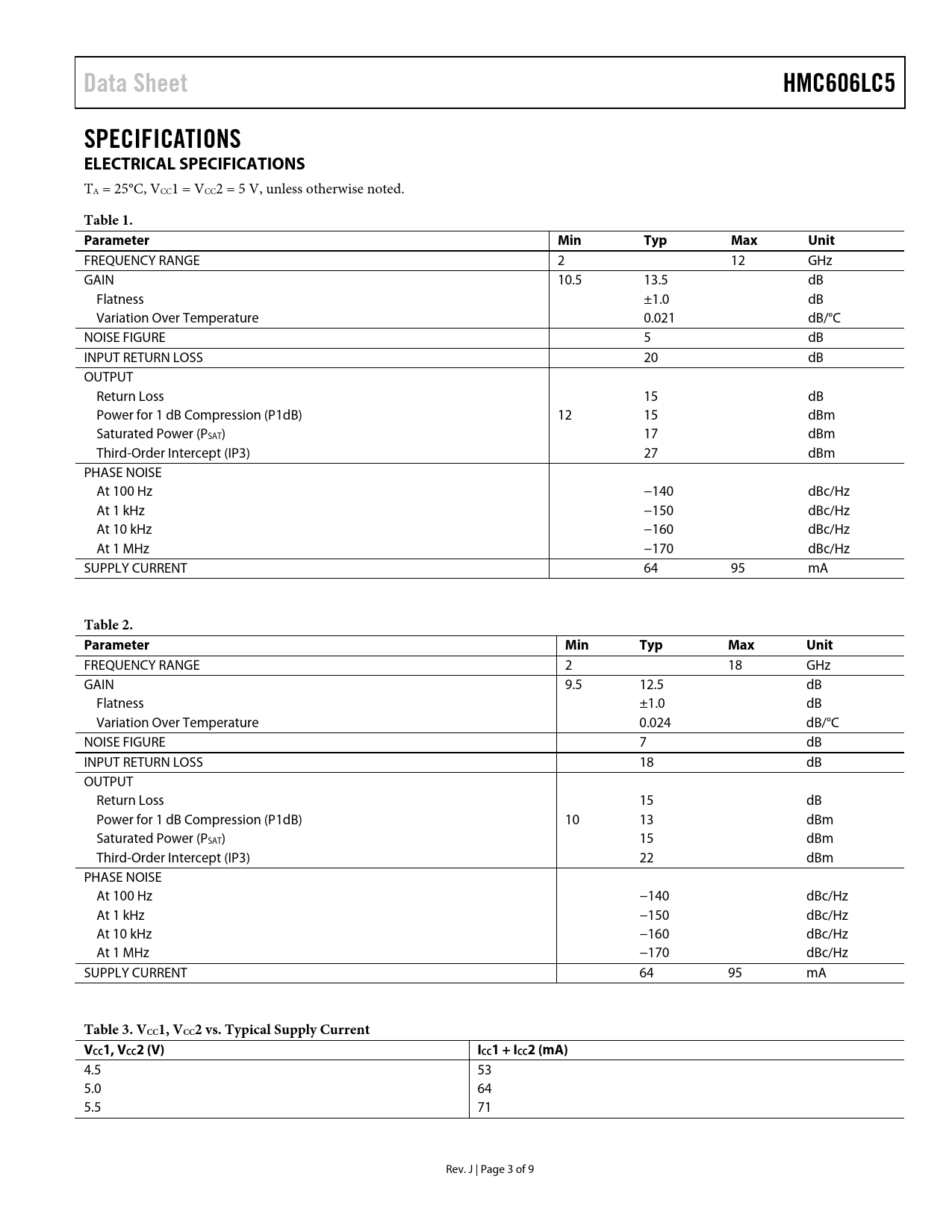

Data Sheet HMC606LC5 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
TA = 25°C, VCC1 = VCC2 = 5 V, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit
FREQUENCY RANGE 2 12 GHz GAIN 10.5 13.5 dB Flatness ±1.0 dB Variation Over Temperature 0.021 dB/°C NOISE FIGURE 5 dB INPUT RETURN LOSS 20 dB OUTPUT Return Loss 15 dB Power for 1 dB Compression (P1dB) 12 15 dBm Saturated Power (PSAT) 17 dBm Third-Order Intercept (IP3) 27 dBm PHASE NOISE At 100 Hz −140 dBc/Hz At 1 kHz −150 dBc/Hz At 10 kHz −160 dBc/Hz At 1 MHz −170 dBc/Hz SUPPLY CURRENT 64 95 mA
Table 2. Parameter Min Typ Max Unit
FREQUENCY RANGE 2 18 GHz GAIN 9.5 12.5 dB Flatness ±1.0 dB Variation Over Temperature 0.024 dB/°C NOISE FIGURE 7 dB INPUT RETURN LOSS 18 dB OUTPUT Return Loss 15 dB Power for 1 dB Compression (P1dB) 10 13 dBm Saturated Power (PSAT) 15 dBm Third-Order Intercept (IP3) 22 dBm PHASE NOISE At 100 Hz −140 dBc/Hz At 1 kHz −150 dBc/Hz At 10 kHz −160 dBc/Hz At 1 MHz −170 dBc/Hz SUPPLY CURRENT 64 95 mA
Table 3. VCC1, VCC2 vs. Typical Supply Current VCC1, VCC2 (V) ICC1 + ICC2 (mA)
4.5 53 5.0 64 5.5 71 Rev. J | Page 3 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION PRINTED CIRCUIT BOARD (PCB) OUTLINE DIMENSIONS ORDERING GUIDE
