Datasheet HMC1121 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 4 W, GaAs, pHEMT, MMIC Power Amplifier, 5.5 GHz to 8.5 GHz |
| 页数 / 页 | 15 / 3 — Data Sheet. HMC1121. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 393 Kb |
| 文件语言 | 英语 |

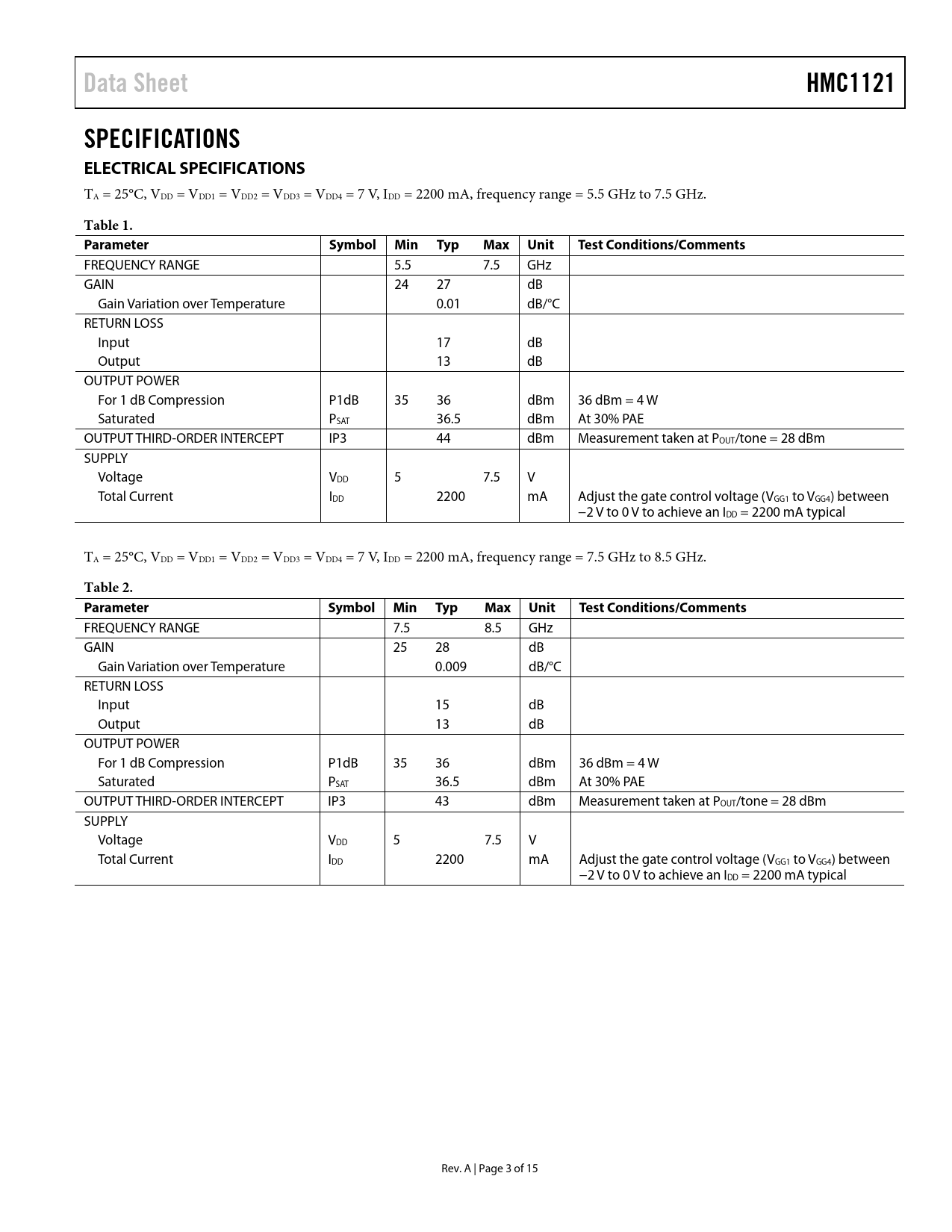

Data Sheet. HMC1121. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol Min Typ. Max Unit
该数据表的模型线
文件文字版本
Data Sheet HMC1121 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
TA = 25°C, VDD = VDD1 = VDD2 = VDD3 = VDD4 = 7 V, IDD = 2200 mA, frequency range = 5.5 GHz to 7.5 GHz.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 5.5 7.5 GHz GAIN 24 27 dB Gain Variation over Temperature 0.01 dB/°C RETURN LOSS Input 17 dB Output 13 dB OUTPUT POWER For 1 dB Compression P1dB 35 36 dBm 36 dBm = 4 W Saturated PSAT 36.5 dBm At 30% PAE OUTPUT THIRD-ORDER INTERCEPT IP3 44 dBm Measurement taken at POUT/tone = 28 dBm SUPPLY Voltage VDD 5 7.5 V Total Current IDD 2200 mA Adjust the gate control voltage (VGG1 to VGG4) between −2 V to 0 V to achieve an IDD = 2200 mA typical TA = 25°C, VDD = VDD1 = VDD2 = VDD3 = VDD4 = 7 V, IDD = 2200 mA, frequency range = 7.5 GHz to 8.5 GHz.
