Datasheet HMC637ASCPZ-EP (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | GaAs, pHEMT, MMIC, 1 W Power Amplifier, 0.1 GHz to 6 GHz |
| 页数 / 页 | 9 / 8 — HMC637ASCPZ-EP. Enhanced Product. +105°C. +25°C –55°C. Bm). +25°C. 3 (. … |
| 文件格式/大小 | PDF / 240 Kb |
| 文件语言 | 英语 |
HMC637ASCPZ-EP. Enhanced Product. +105°C. +25°C –55°C. Bm). +25°C. 3 (. –55°C. FREQUENCY (GHz)
该数据表的模型线
文件文字版本
HMC637ASCPZ-EP Enhanced Product 60 34 55 32 +105°C 50 +25°C –55°C 30 Bm) 45 +105°C d B) 28 +25°C 3 ( d P ( –55°C I 40 AT UT S P 26 P UT 35 O 24 30 22 25 20 20 0 2 4 6 8
016
0 2 4 6 8
017
FREQUENCY (GHz) FREQUENCY (GHz)

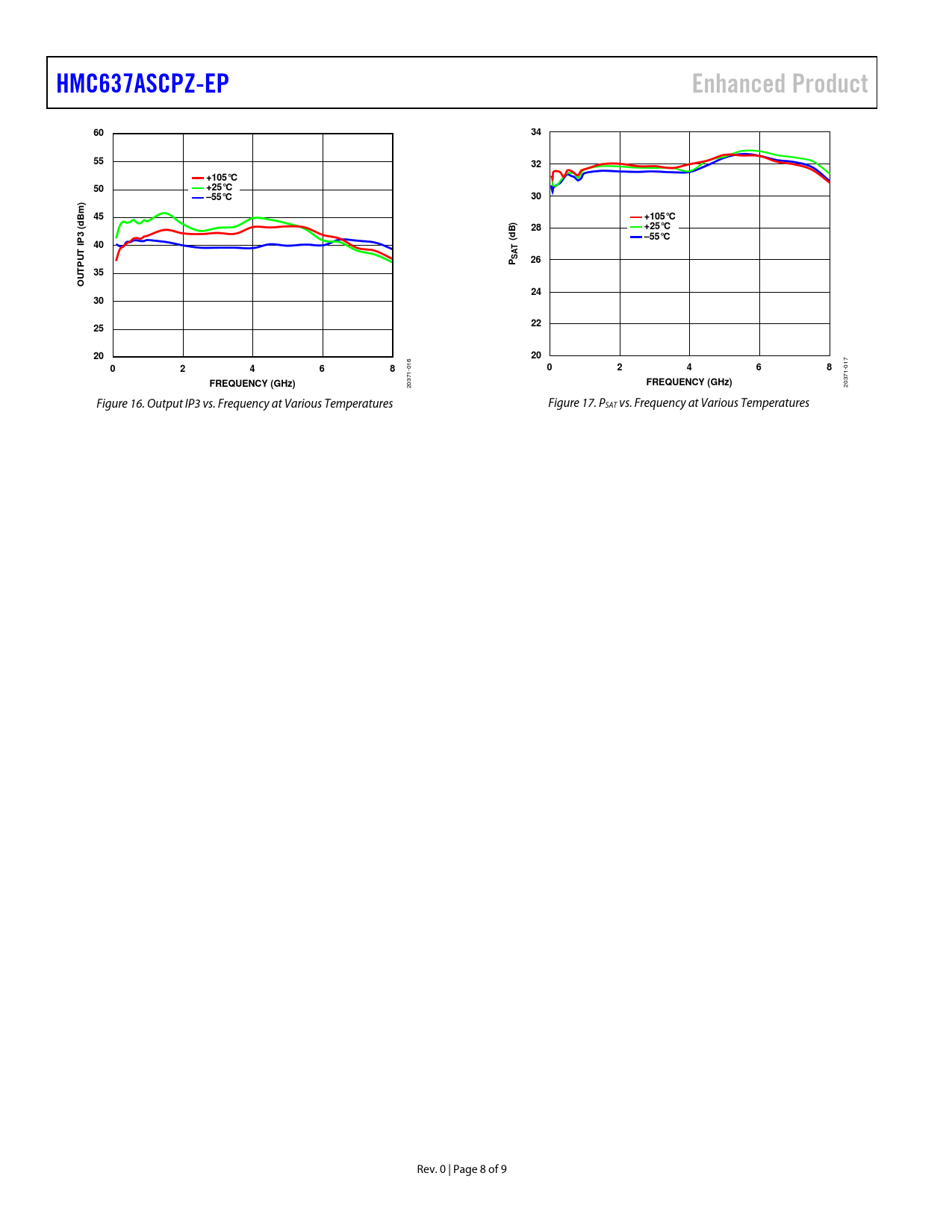

20371- 20371- Figure 16. Output IP3 vs. Frequency at Various Temperatures Figure 17. PSAT vs. Frequency at Various Temperatures Rev. 0 | Page 8 of 9 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER DERATING CURVES ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
