Datasheet HMC7054 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Ka-Band HPA |
| 页数 / 页 | 8 / 5 — HMC7054. Ka-Band HPa. Table 1. absolute Maximum Ratings. Table 2. RF I/O … |
| 文件格式/大小 | PDF / 283 Kb |
| 文件语言 | 英语 |

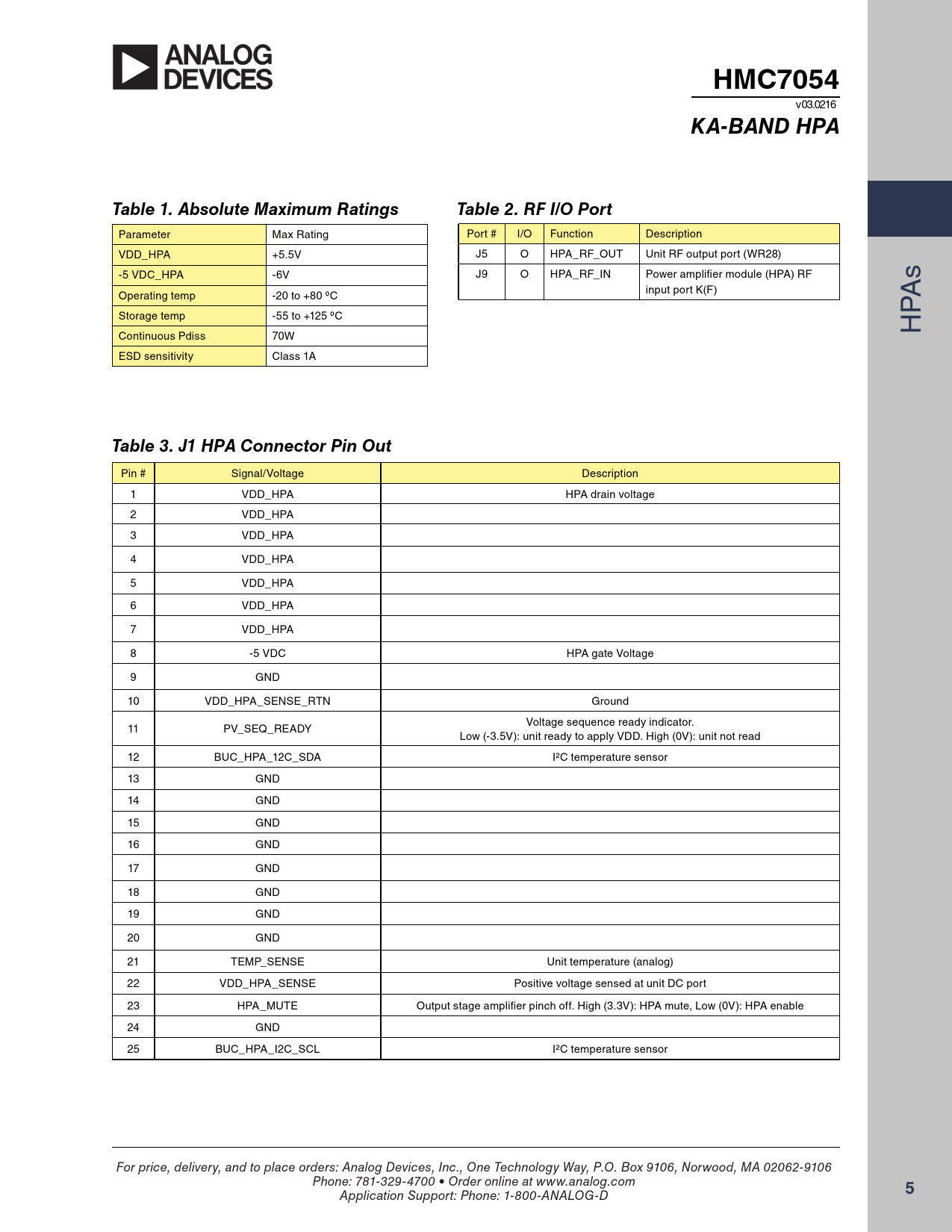

HMC7054. Ka-Band HPa. Table 1. absolute Maximum Ratings. Table 2. RF I/O Port. Table 3. J1 HPa Connector Pin Out
该数据表的模型线
文件文字版本
HMC7054
v03.0216
Ka-Band HPa Table 1. absolute Maximum Ratings Table 2. RF I/O Port
Parameter Max Rating Port # I/O Function Description VDD_HPA +5.5V J5 O HPA_RF_OUT Unit RF output port (WR28) -5 VDC_HPA -6V J9 O HPA_RF_IN Power amplifier module (HPA) RF s Operating temp -20 to +80 ºC input port K(F) Storage temp -55 to +125 PA ºC Continuous Pdiss 70W H ESD sensitivity Class 1A
Table 3. J1 HPa Connector Pin Out
Pin # Signal/Voltage Description 1 VDD_HPA HPA drain voltage 2 VDD_HPA 3 VDD_HPA 4 VDD_HPA 5 VDD_HPA 6 VDD_HPA 7 VDD_HPA 8 -5 VDC HPA gate Voltage 9 GND 10 VDD_HPA_SENSE_RTN Ground Voltage sequence ready indicator. 11 PV_SEQ_READY Low (-3.5V): unit ready to apply VDD. High (0V): unit not read 12 BUC_HPA_12C_SDA I²C temperature sensor 13 GND 14 GND 15 GND 16 GND 17 GND 18 GND 19 GND 20 GND 21 TEMP_SENSE Unit temperature (analog) 22 VDD_HPA_SENSE Positive voltage sensed at unit DC port 23 HPA_MUTE Output stage amplifier pinch off. High (3.3V): HPA mute, Low (0V): HPA enable 24 GND 25 BUC_HPA_I2C_SCL I²C temperature sensor For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D Document Outline Features Functional Block Diagram Electrical Specifications Small Signal Gain Output P1dB & PAE Saturated Output Power Linear Power (SRG) IP3 Absolute Maximum Ratings Outline Drawing Table 1. Absolute Maximum Ratings Table 2. J1 HPA Connector Pin Out Table 3. J2 BUC Connector Pin Out
