Datasheet STD30NF06LAG (STMicroelectronics) - 9
| 制造商 | STMicroelectronics |
| 描述 | Automotive-grade N-channel 60 V, 0.022 Ω typ., 35 A STripFET II Power MOSFET in a DPAK package |
| 页数 / 页 | 15 / 9 — STD30NF06LAG. Package information. www.st.com. 4.1. DPAK (TO-252) type A … |
| 文件格式/大小 | PDF / 734 Kb |
| 文件语言 | 英语 |
STD30NF06LAG. Package information. www.st.com. 4.1. DPAK (TO-252) type A package information
该数据表的模型线
文件文字版本
STD30NF06LAG Package information 4 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at:
www.st.com
. ECOPACK® is an ST trademark.

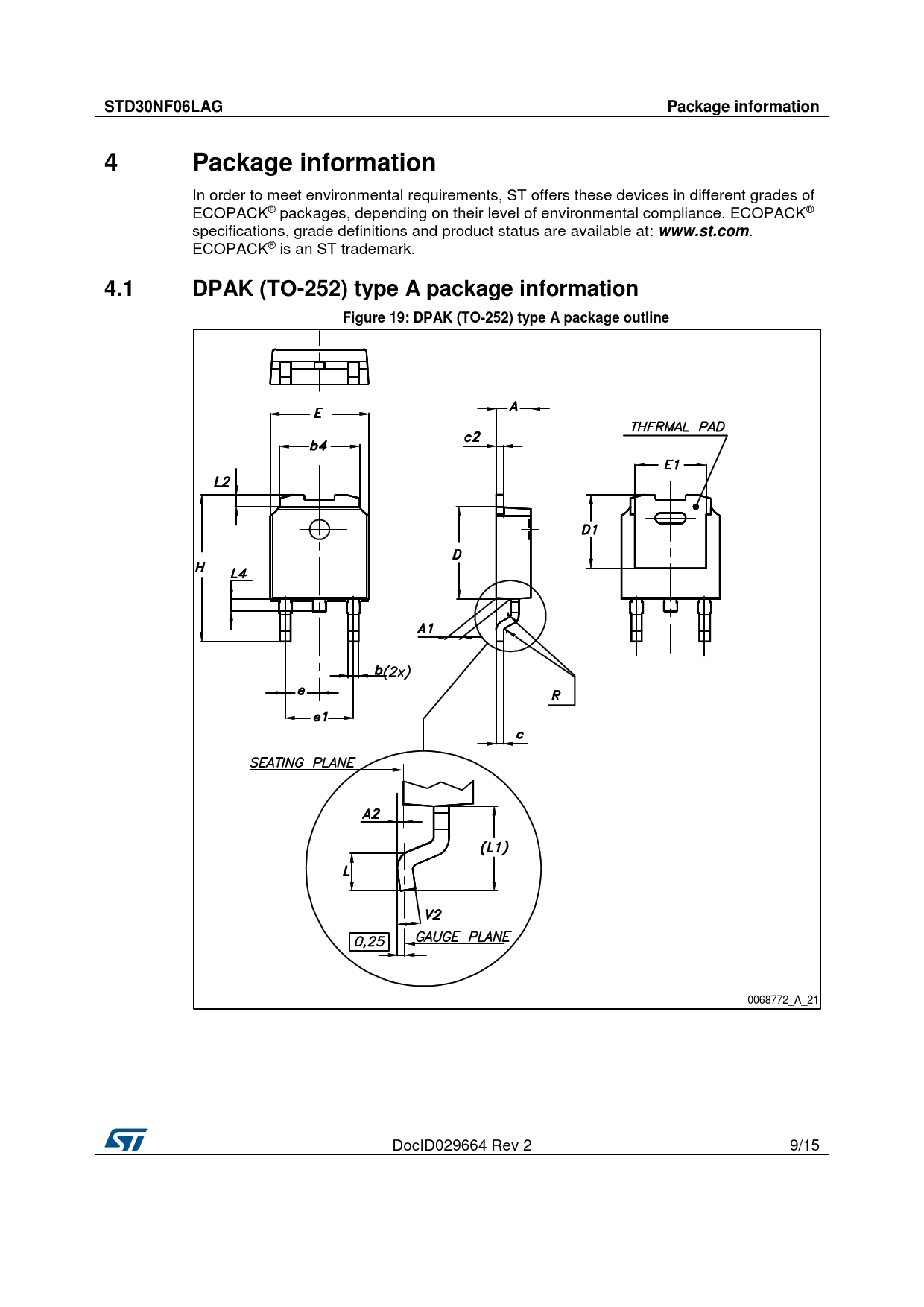

4.1 DPAK (TO-252) type A package information Figure 19: DPAK (TO-252) type A package outline
0068772_A_21 DocID029664 Rev 2 9/15
