TSV7721, TSV7722, TSV7723. Electrical characteristics
该数据表的模型线
文件文字版本
link to page 5

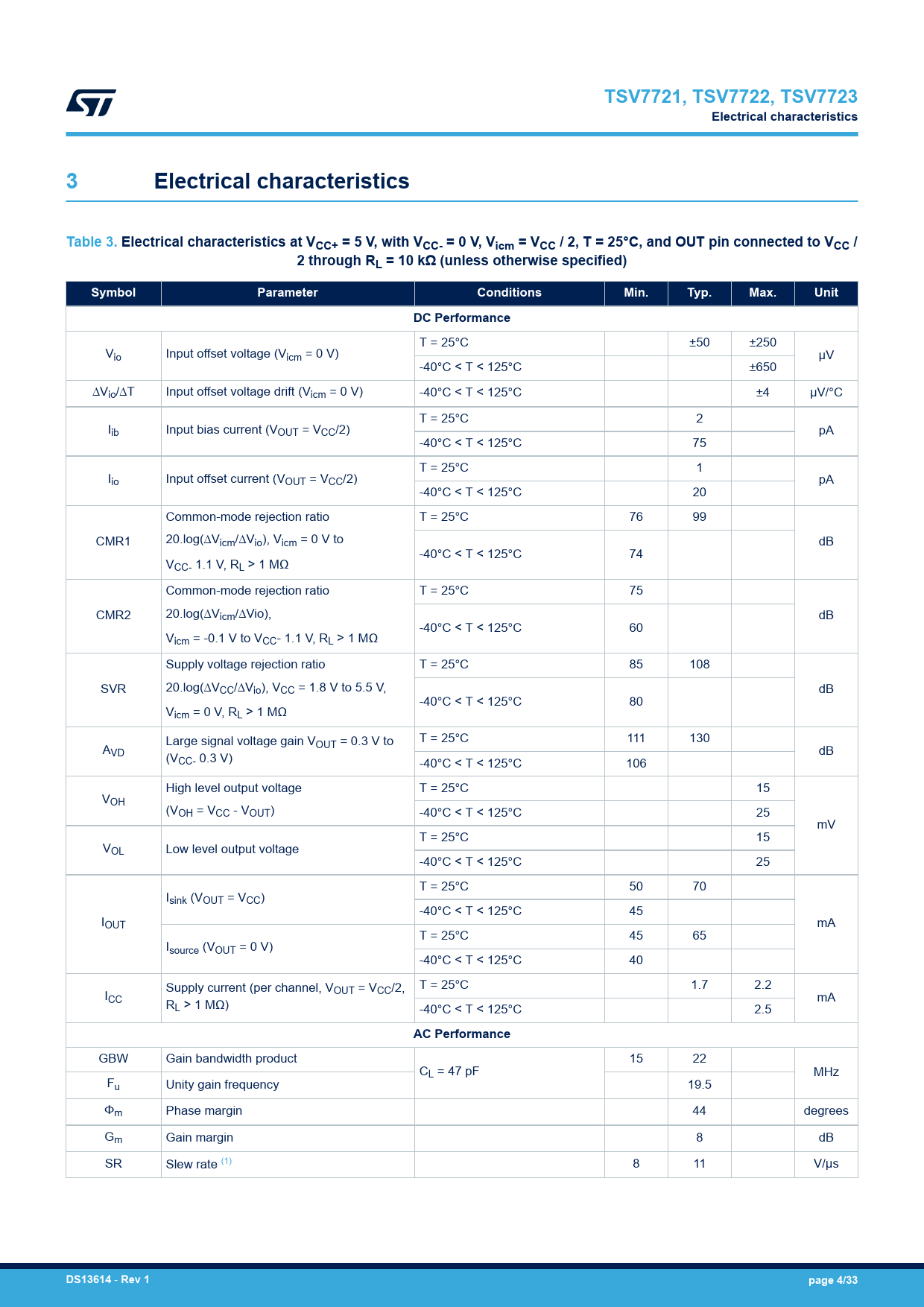

TSV7721, TSV7722, TSV7723 Electrical characteristics 3 Electrical characteristics Table 3. Electrical characteristics at VCC+ = 5 V, with VCC- = 0 V, Vicm = VCC / 2, T = 25°C, and OUT pin connected to VCC / 2 through RL = 10 kΩ (unless otherwise specified) Symbol Parameter Conditions Min. Typ. Max. Unit DC Performance
T = 25°C ±50 ±250 Vio Input offset voltage (Vicm = 0 V) µV -40°C < T < 125°C ±650 ∆Vio/∆T Input offset voltage drift (Vicm = 0 V) -40°C < T < 125°C ±4 µV/°C T = 25°C 2 Iib Input bias current (VOUT = VCC/2) pA -40°C < T < 125°C 75 T = 25°C 1 Iio Input offset current (VOUT = VCC/2) pA -40°C < T < 125°C 20 Common-mode rejection ratio T = 25°C 76 99 CMR1 20.log(∆Vicm/∆Vio), Vicm = 0 V to dB -40°C < T < 125°C 74 VCC- 1.1 V, RL > 1 MΩ Common-mode rejection ratio T = 25°C 75 CMR2 20.log(∆Vicm/∆Vio), dB -40°C < T < 125°C 60 Vicm = -0.1 V to VCC- 1.1 V, RL > 1 MΩ Supply voltage rejection ratio T = 25°C 85 108 SVR 20.log(∆VCC/∆Vio), VCC = 1.8 V to 5.5 V, dB -40°C < T < 125°C 80 Vicm = 0 V, RL > 1 MΩ Large signal voltage gain V T = 25°C 111 130 A OUT = 0.3 V to VD dB (VCC- 0.3 V) -40°C < T < 125°C 106 High level output voltage T = 25°C 15 VOH (VOH = VCC - VOUT) -40°C < T < 125°C 25 mV T = 25°C 15 VOL Low level output voltage -40°C < T < 125°C 25 T = 25°C 50 70 Isink (VOUT = VCC) -40°C < T < 125°C 45 IOUT mA T = 25°C 45 65 Isource (VOUT = 0 V) -40°C < T < 125°C 40 Supply current (per channel, V T = 25°C 1.7 2.2 I OUT = VCC/2, CC mA RL > 1 MΩ) -40°C < T < 125°C 2.5
AC Performance
GBW Gain bandwidth product 15 22 CL = 47 pF MHz Fu Unity gain frequency 19.5 Φm Phase margin 44 degrees Gm Gain margin 8 dB SR Slew rate (1) 8 11 V/µs
DS13614
-
Rev 1 page 4/33
Document Outline Features Applications Description 1 Pin connections 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Typical performance characteristics 5 Application information 5.1 Operating voltages 5.2 Input offset voltage drift over the temperature 5.3 Unused channel 5.4 EMI rejection 5.5 Maximum power dissipation 5.6 Capacitive load and stability 5.7 Resistor values for high speed op amp design 5.8 Settling time 5.9 PCB layout recommendations 5.10 Decoupling capacitor 5.11 Macro model 6 Typical applications 6.1 Low-side current sensing 6.2 Photodiode transimpedance amplification 7 Package information 7.1 SOT23-5 package information 7.2 DFN8 2x2 package information 7.3 MiniSO8 package information 7.4 SO-8 package information 7.5 MiniSO10 package information 8 Ordering information Revision history
