Datasheet PSMNR55-40SSH (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology |
| 页数 / 页 | 14 / 4 — Nexperia. PSMNR55-40SSH. N-channel 40 V, 0.55 mOhm, 500 Amps continuous, … |
| 修订版 | 06042021 |
| 文件格式/大小 | PDF / 335 Kb |
| 文件语言 | 英语 |
Nexperia. PSMNR55-40SSH. N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using
该数据表的模型线
文件文字版本
Nexperia PSMNR55-40SSH N-channel 40 V, 0.55 mOhm, 500 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology

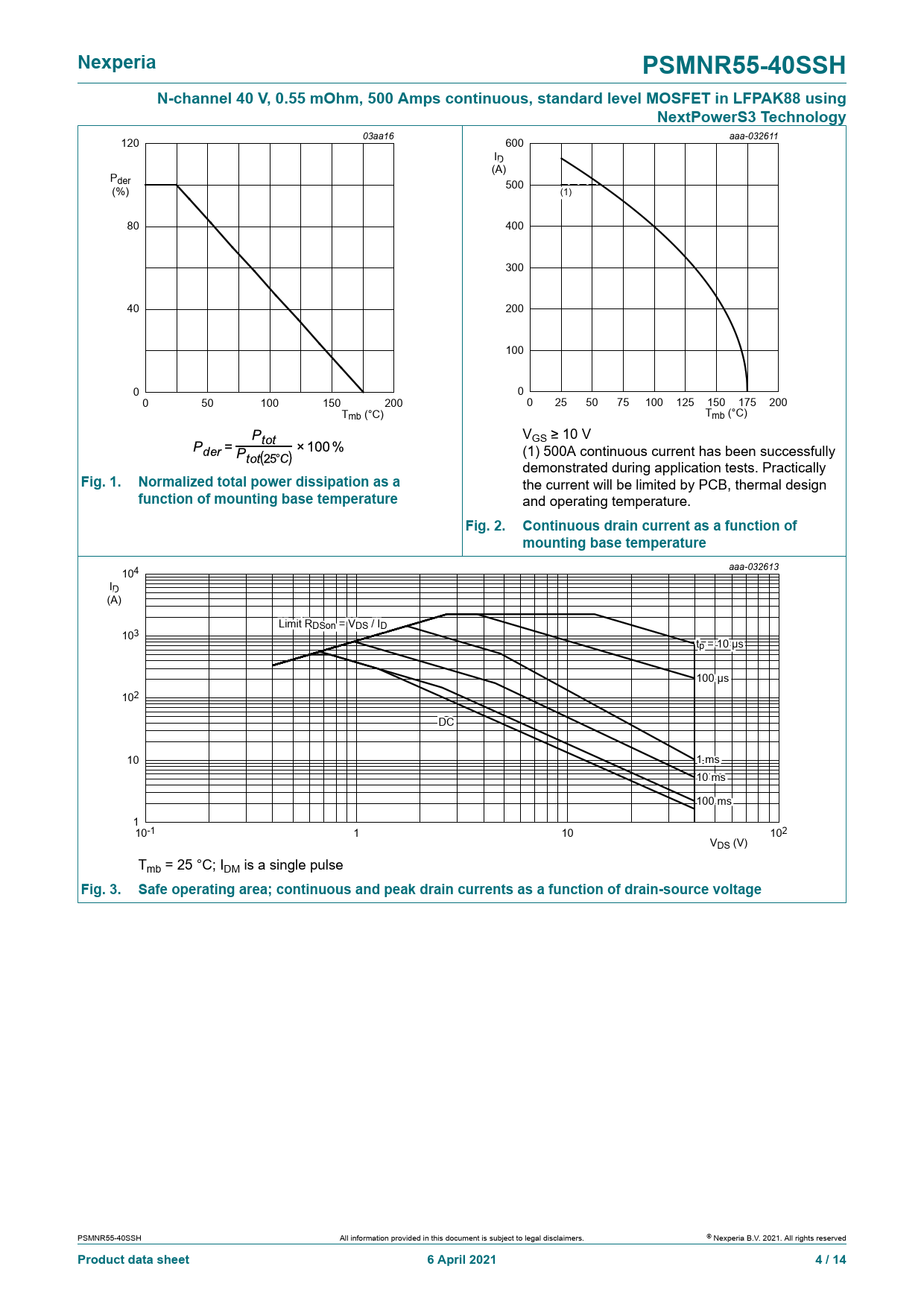

03aa16 120 aaa-032611 600 ID (A ( ) A Pder (%) 500 (1) 1 80 400 300 40 200 100 0 0 0 50 100 150 200 0 25 50 75 100 125 150 175 200 Tmb (°C) Tmb (°C) VGS ≥ 10 V (1) 500A continuous current has been successfully demonstrated during application tests. Practically
Fig. 1. Normalized total power dissipation as a
the current will be limited by PCB, thermal design
function of mounting base temperature
and operating temperature.
Fig. 2. Continuous drain current as a function of mounting base temperature
aaa-032613 104 ID (A ( ) A Li L mit R DSon o n = V DS / I D I 103 tpt p= = 10 1 0 µ s µ 10 1 0 0 0 µ s 102 DC 10 1 1 m s m 10 1 0 m s m 10 1 0 0 0 m s m 110-1 1 10 102 VDS (V) Tmb = 25 °C; IDM is a single pulse
Fig. 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage
PSMNR55-40SSH All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 6 April 2021 4 / 14
