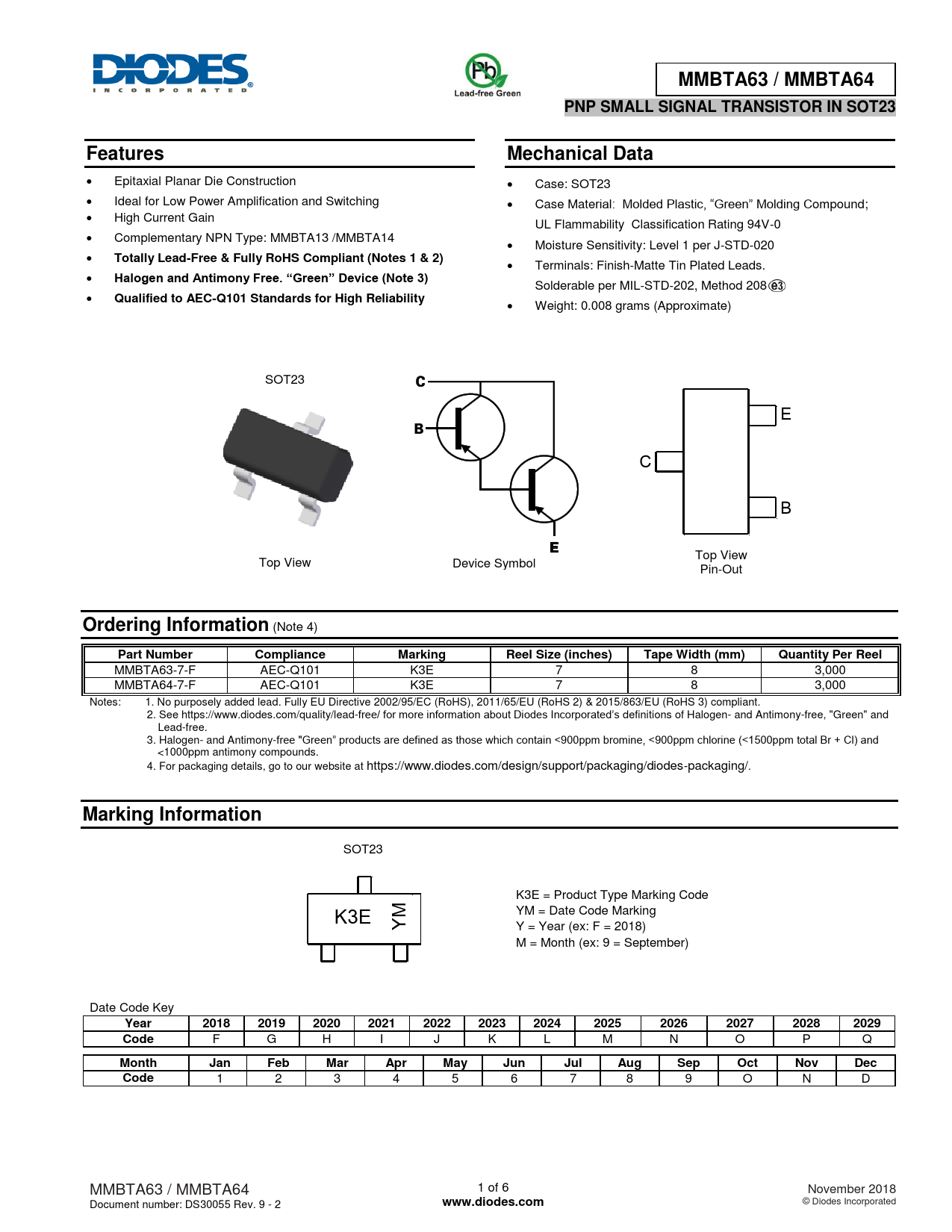

MMBTA63 / MMBTA64. PNP SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical Data
该数据表的模型线
文件文字版本
MMBTA63 / MMBTA64 PNP SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data
Epitaxial Planar Die Construction Case: SOT23 Ideal for Low Power Amplification and Switching Case Material: Molded Plastic, “Green” Molding Compound; High Current Gain UL Flammability Classification Rating 94V-0 Complementary NPN Type: MMBTA13 /MMBTA14 Moisture Sensitivity: Level 1 per J-STD-020
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Terminals: Finish-Matte Tin Plated Leads.
Halogen and Antimony Free. “Green” Device (Note 3)
Solderable per MIL-STD-202, Method 208
Qualified to AEC-Q101 Standards for High Reliability
Weight: 0.008 grams (Approximate) SOT23 E C B Top View Top View Device Symbol Pin-Out Symbolhematic Symbolhematic
Ordering Information
(Note 4)
Part Number Compliance Marking Reel Size (inches) Tape Width (mm) Quantity Per Reel
MMBTA63-7-F AEC-Q101 K3E 7 8 3,000 MMBTA64-7-F AEC-Q101 K3E 7 8 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SOT23 K3E = Product Type Marking Code YM = Date Code Marking K3E YM Y = Year (ex: F = 2018) M = Month (ex: 9 = September) Date Code Key
Year 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 Code
F G H I J K L M N O P Q
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D MMBTA63 / MMBTA64 1 of 6 November 2018 Document number: DS30055 Rev. 9 - 2
