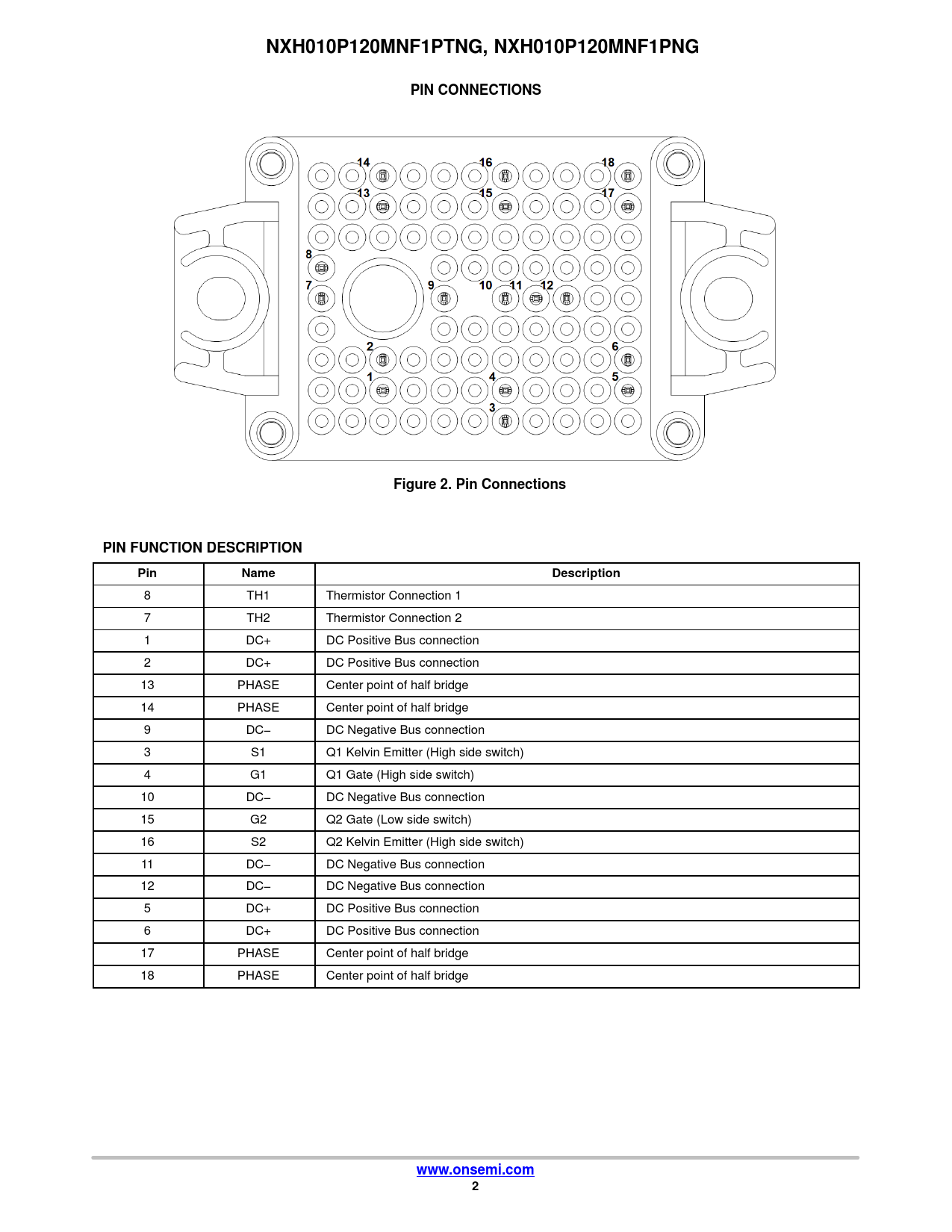

NXH010P120MNF1PTNG, NXH010P120MNF1PNGPIN CONNECTIONSFigure 2. Pin ConnectionsPIN FUNCTION DESCRIPTIONPinNameDescription 8 TH1 Thermistor Connection 1 7 TH2 Thermistor Connection 2 1 DC+ DC Positive Bus connection 2 DC+ DC Positive Bus connection 13 PHASE Center point of half bridge 14 PHASE Center point of half bridge 9 DC− DC Negative Bus connection 3 S1 Q1 Kelvin Emitter (High side switch) 4 G1 Q1 Gate (High side switch) 10 DC− DC Negative Bus connection 15 G2 Q2 Gate (Low side switch) 16 S2 Q2 Kelvin Emitter (High side switch) 11 DC− DC Negative Bus connection 12 DC− DC Negative Bus connection 5 DC+ DC Positive Bus connection 6 DC+ DC Positive Bus connection 17 PHASE Center point of half bridge 18 PHASE Center point of half bridge www.onsemi.com2
