Datasheet BAV70 (Diodes)
| 制造商 | Diodes |
| 描述 | DUAL SURFACE MOUNT SWITCHING DIODE |
| 页数 / 页 | 5 / 1 — BAV70. DUAL SURFACE MOUNT SWITCHING DIODE. Features. Mechanical Data |
| 文件格式/大小 | PDF / 205 Kb |
| 文件语言 | 英语 |
BAV70. DUAL SURFACE MOUNT SWITCHING DIODE. Features. Mechanical Data
该数据表的模型线
文件文字版本

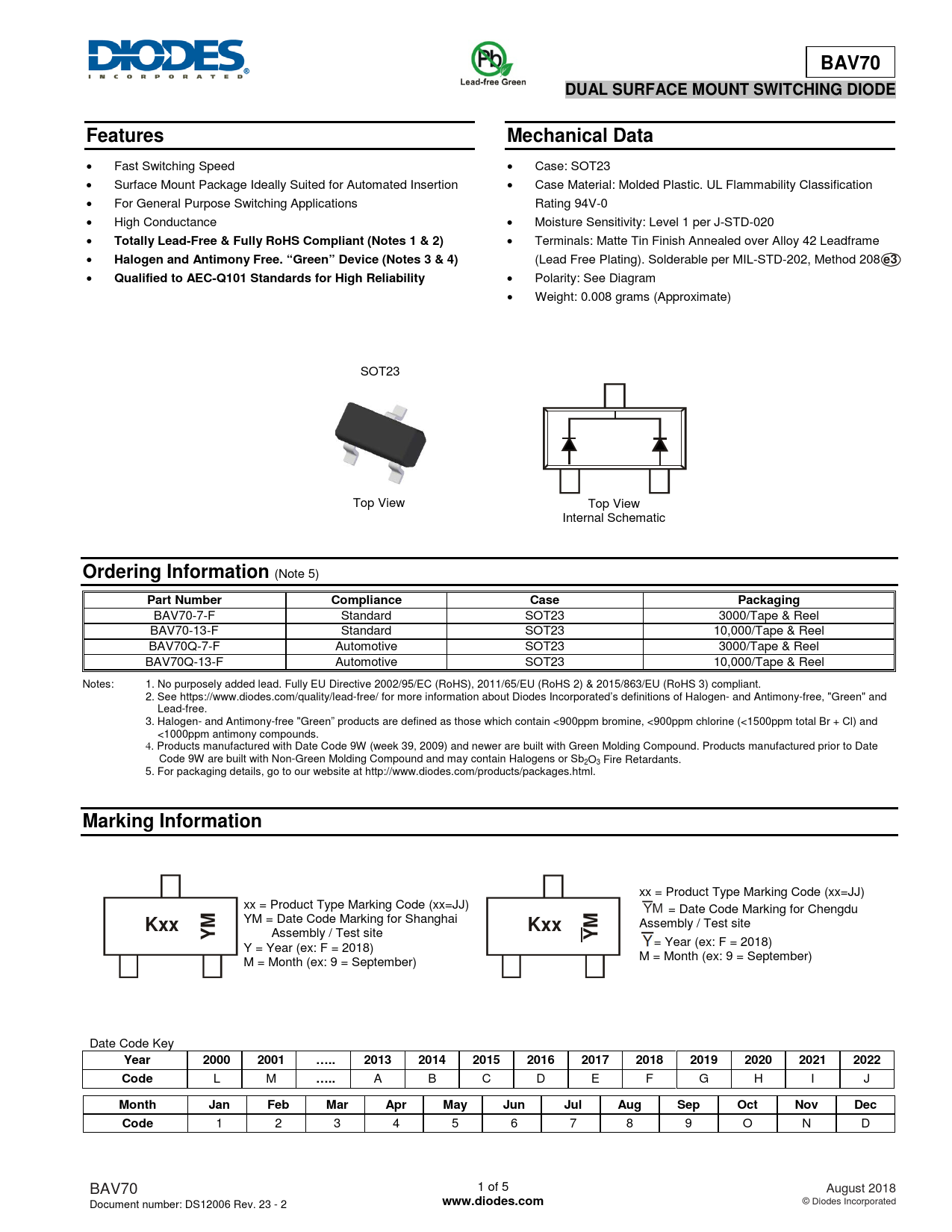

BAV70 DUAL SURFACE MOUNT SWITCHING DIODE Features Mechanical Data
• Fast Switching Speed • Case: SOT23 • Surface Mount Package Ideally Suited for Automated Insertion • Case Material: Molded Plastic. UL Flammability Classification • For General Purpose Switching Applications Rating 94V-0 • High Conductance • Moisture Sensitivity: Level 1 per J-STD-020 •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe •
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
e3
•
Qualified to AEC-Q101 Standards for High Reliability
• Polarity: See Diagram • Weight: 0.008 grams (Approximate) SOT23 Top View Top View Internal Schematic
Ordering Information
(Note 5)
Part Number Compliance Case Packaging
BAV70-7-F Standard SOT23 3000/Tape & Reel BAV70-13-F Standard SOT23 10,000/Tape & Reel BAV70Q-7-F Automotive SOT23 3000/Tape & Reel BAV70Q-13-F Automotive SOT23 10,000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Products manufactured with Date Code 9W (week 39, 2009) and newer are built with Green Molding Compound. Products manufactured prior to Date Code 9W are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xx = Product Type Marking Code (xx=JJ) xx = Product Type Marking Code (xx=JJ) = Date Code Marking for Chengdu
M
YM = Date Code Marking for Shanghai
M Kxx Kxx
Assembly / Test site
Y
Assembly / Test site
Y
= Year (ex: F = 2018) Y = Year (ex: F = 2018) M = Month (ex: 9 = September) M = Month (ex: 9 = September) Date Code Key
Year 2000 2001 ….. 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 Code
L M
…..
A B C D E F G H I J
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BAV70 1 of 5 August 2018 Document number: DS12006 Rev. 23 - 2
www.diodes.com
© Diodes Incorporated Document Outline Mechanical Data Features Marking Information Package Outline Dimensions Suggested Pad Layout
