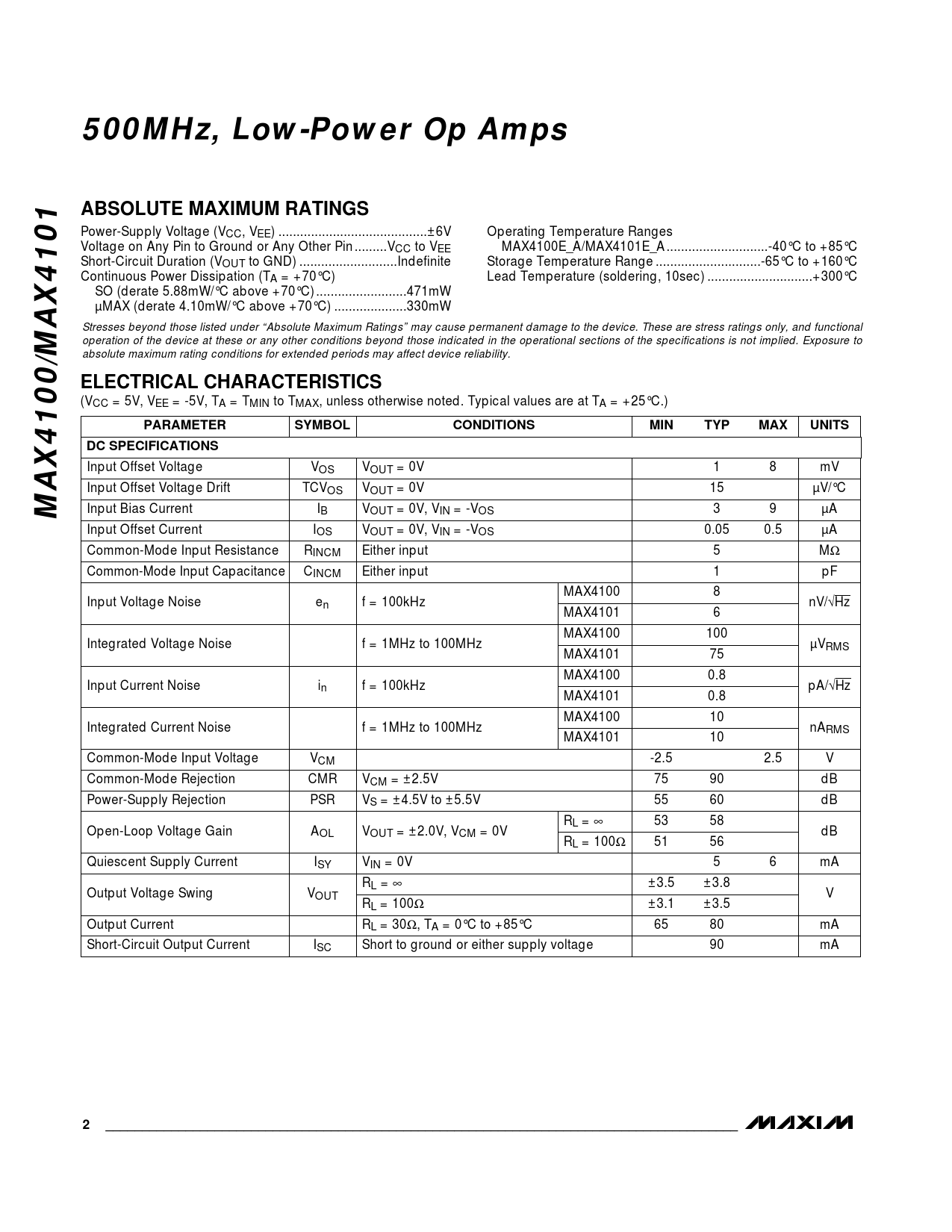

500MHz, Low-Power Op Amps ABSOLUTE MAXIMUM RATINGS
Power-Supply Voltage (VCC, VEE) ...±6V Operating Temperature Ranges Voltage on Any Pin to Ground or Any Other Pin ...VCC to VEE MAX4100E_A/MAX4101E_A ..-40°C to +85°C Short-Circuit Duration (VOUT to GND) ...Indefinite Storage Temperature Range ...-65°C to +160°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10sec) ...+300°C SO (derate 5.88mW/°C above +70°C) ...471mW µMAX (derate 4.10mW/°C above +70°C) ..330mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VCC = 5V, VEE = -5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC SPECIFICATIONS
Input Offset Voltage VOS VOUT = 0V 1 8 mV Input Offset Voltage Drift TCVOS VOUT = 0V 15 µV/°C
MAX4100/MAX4101
Input Bias Current IB VOUT = 0V, VIN = -VOS 3 9 µA Input Offset Current IOS VOUT = 0V, VIN = -VOS 0.05 0.5 µA Common-Mode Input Resistance RINCM Either input 5 MΩ Common-Mode Input Capacitance CINCM Either input 1 pF MAX4100 8 Input Voltage Noise en f = 100kHz nV/√Hz MAX4101 6 MAX4100 100 Integrated Voltage Noise f = 1MHz to 100MHz µVRMS MAX4101 75 MAX4100 0.8 Input Current Noise in f = 100kHz pA/√Hz MAX4101 0.8 MAX4100 10 Integrated Current Noise f = 1MHz to 100MHz nARMS MAX4101 10 Common-Mode Input Voltage VCM -2.5 2.5 V Common-Mode Rejection CMR VCM = ±2.5V 75 90 dB Power-Supply Rejection PSR VS = ±4.5V to ±5.5V 55 60 dB RL = ∞ 53 58 Open-Loop Voltage Gain AOL VOUT = ±2.0V, VCM = 0V dB RL = 100Ω 51 56 Quiescent Supply Current ISY VIN = 0V 5 6 mA RL = ∞ ±3.5 ±3.8 Output Voltage Swing VOUT V RL = 100Ω ±3.1 ±3.5 Output Current RL = 30Ω, TA = 0°C to +85°C 65 80 mA Short-Circuit Output Current ISC Short to ground or either supply voltage 90 mA
2 _______________________________________________________________________________________
