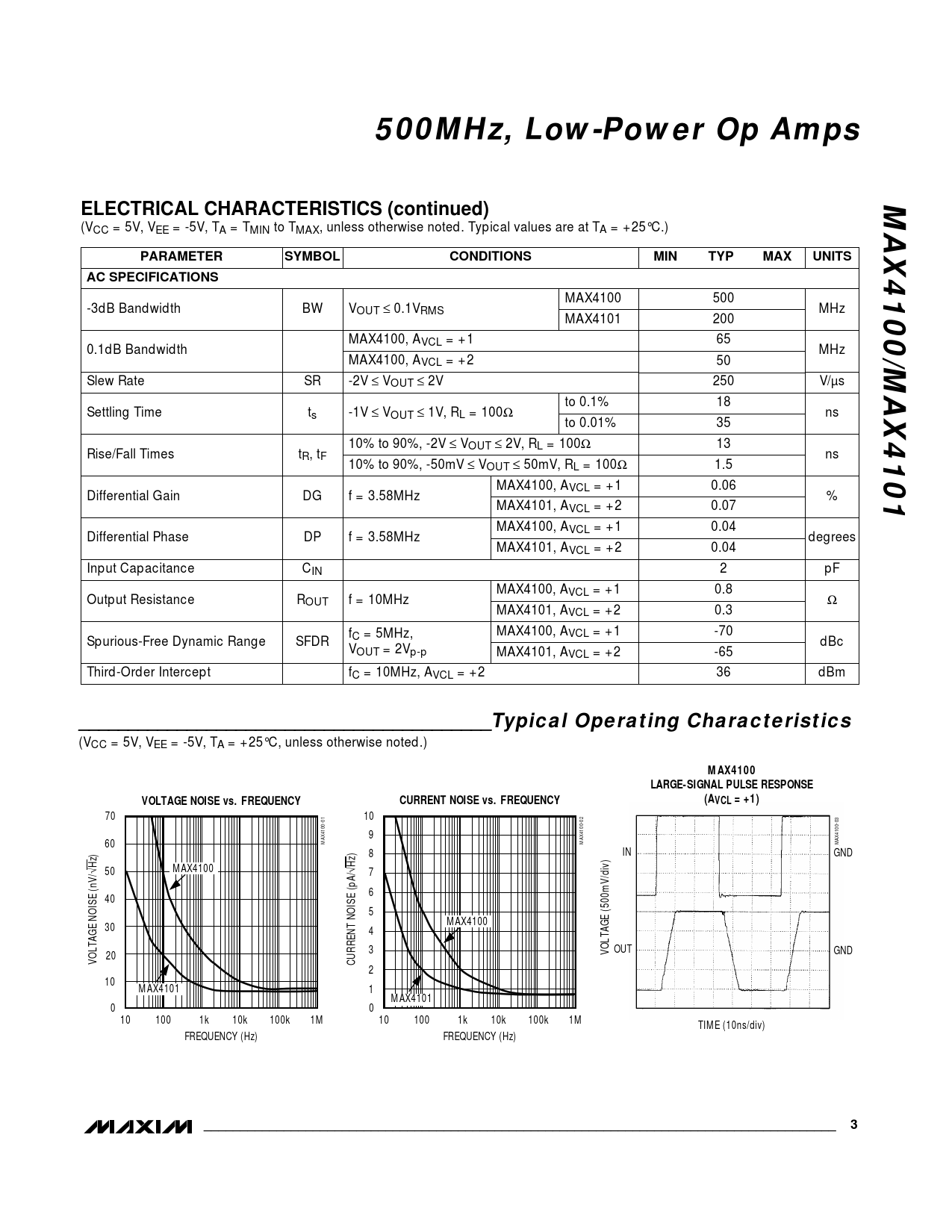

500MHz, Low-Power Op Amps MAX4100/MAX4101 ELECTRICAL CHARACTERISTICS (continued)
(VCC = 5V, VEE = -5V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS AC SPECIFICATIONS
MAX4100 500 -3dB Bandwidth BW VOUT ≤ 0.1VRMS MHz MAX4101 200 MAX4100, AVCL = +1 65 0.1dB Bandwidth MHz MAX4100, AVCL = +2 50 Slew Rate SR -2V ≤ VOUT ≤ 2V 250 V/µs to 0.1% 18 Settling Time ts -1V ≤ VOUT ≤ 1V, RL = 100Ω ns to 0.01% 35 10% to 90%, -2V ≤ VOUT ≤ 2V, RL = 100Ω 13 Rise/Fall Times tR, tF ns 10% to 90%, -50mV ≤ VOUT ≤ 50mV, RL = 100Ω 1.5 MAX4100, AVCL = +1 0.06 Differential Gain DG f = 3.58MHz % MAX4101, AVCL = +2 0.07 MAX4100, AVCL = +1 0.04 Differential Phase DP f = 3.58MHz degrees MAX4101, AVCL = +2 0.04 Input Capacitance CIN 2 pF MAX4100, AVCL = +1 0.8 Output Resistance ROUT f = 10MHz Ω MAX4101, AVCL = +2 0.3 MAX4100, AVCL = +1 -70 f Spurious-Free Dynamic Range SFDR C = 5MHz, dBc VOUT = 2Vp-p MAX4101, AVCL = +2 -65 Third-Order Intercept fC = 10MHz, AVCL = +2 36 dBm
__________________________________________Typical Operating Characteristics
(VCC = 5V, VEE = -5V, TA = +25°C, unless otherwise noted.)
MAX4100 LARGE-SIGNAL PULSE RESPONSE VOLTAGE NOISE vs. FREQUENCY CURRENT NOISE vs. FREQUENCY (AVCL = +1)
70 10 9 MAX4100-01 60 MAX4100-02 MAX4100-03 8 IN GND √Hz) 50 MAX4100 √Hz) 7 6 40 5 MAX4100 30 4 3 OUT VOLTAGE (500mV/div) GND 20 VOLTAGE NOISE (nV/ CURRENT NOISE (pA/ 2 10 MAX4101 1 MAX4101 0 0 10 100 1k 10k 100k 1M 10 100 1k 10k 100k 1M TIME (10ns/div) FREQUENCY (Hz) FREQUENCY (Hz)
_______________________________________________________________________________________ 3
