MUR405, MUR410, MUR415, MUR420, MUR440, MUR460. MUR440, MUR460. Figure 11. Typical Non−Repetitive Surge Current
该数据表的模型线
文件文字版本
MUR405, MUR410, MUR415, MUR420, MUR440, MUR460 MUR440, MUR460
10000 1000 −REPETITIVE SURGE CURRENT (A) 100 , NON I FSM 10 10 100 1,000 10,000 tp, SQUARE WAVE PULSE DURATION (ms)

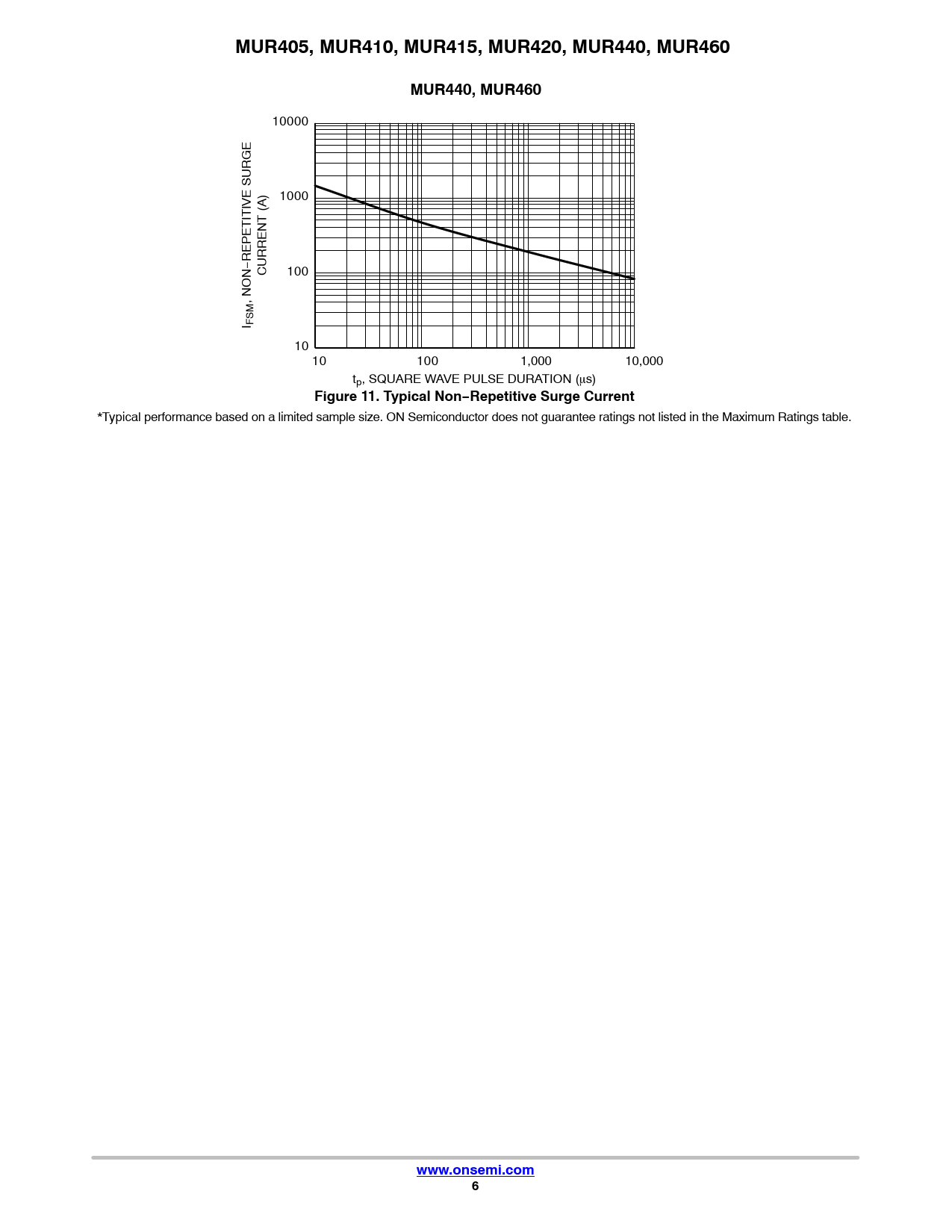

Figure 11. Typical Non−Repetitive Surge Current
*Typical performance based on a limited sample size. ON Semiconductor does not guarantee ratings not listed in the Maximum Ratings table.
www.onsemi.com 6
